Digilent Transistor Tester Adapter for Analog Discovery 2 and Analog Discovery Legacy 410-413

Digilent 410-413 Transistor Tester Adapter is designed for use with Analog Discovery 2 and Analog Discovery Legacy models, providing an efficient solution for transistor and diode characterization without requiring external reference circuits.

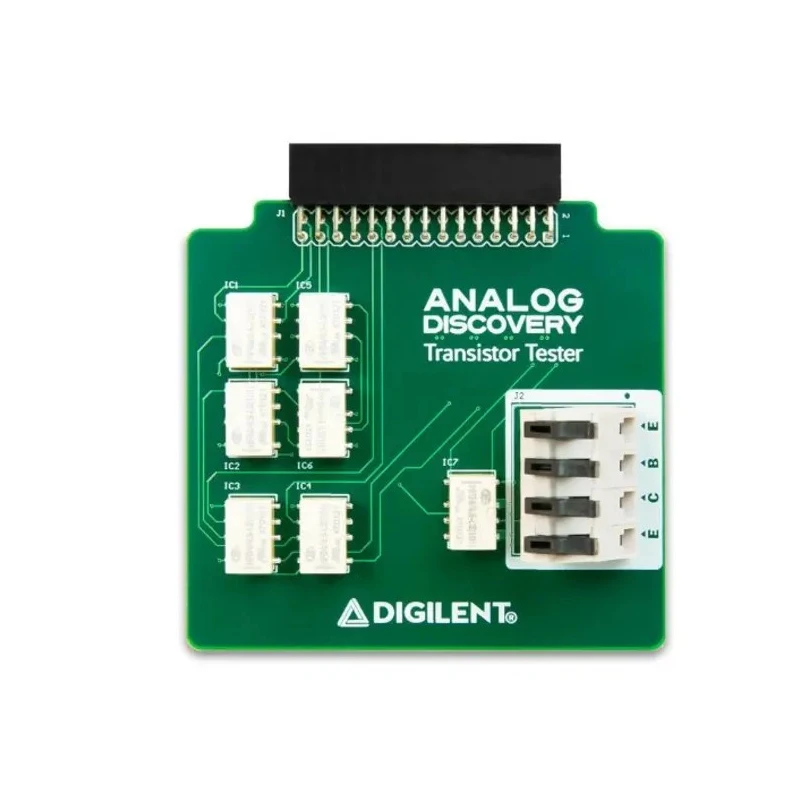

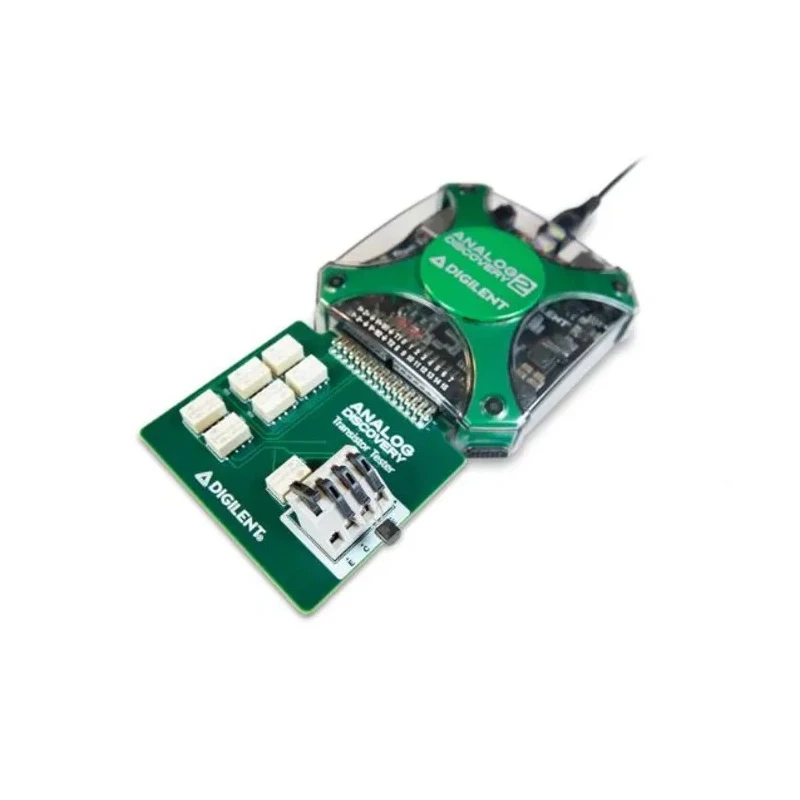

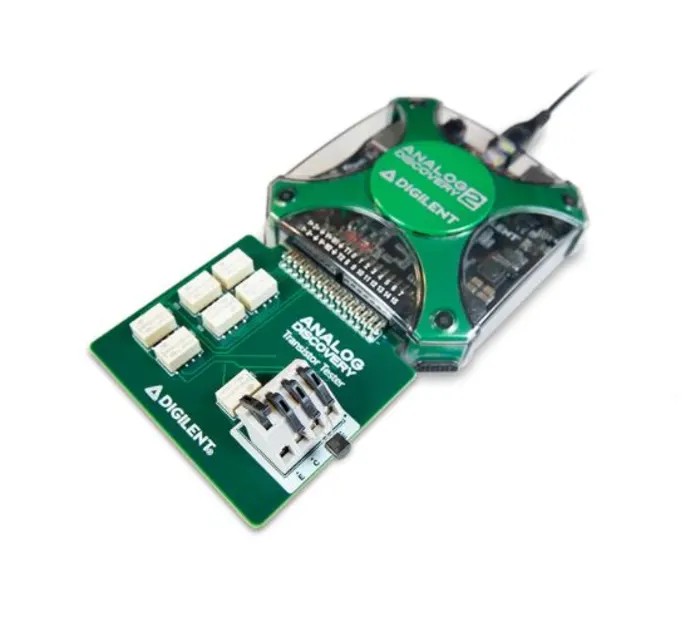

The adapter features a 2x15 female connector that plugs directly into the Analog Discovery unit, allowing easy integration. Components or leads can be connected via the terminal block on the Transistor Tester, facilitating straightforward device connection.

This adapter works with a broad range of components including diodes, NPN and PNP bipolar transistors, and P- and N-Type FETs. When used with the Waveforms Curve Tracer instrument, the Analog Discovery can draw characteristic curves of these devices, offering graphical insight into device behavior.

Unlike traditional standalone curve tracers, Waveforms operates on a computer, allowing users to utilize advanced features such as accurate measurements, cursors, and capturing screenshots with a single click. These digital features enhance convenience especially for laboratory reporting and analysis.

Technical features include a J2 connector for emitter/collector/base/emitter connections, a 10 kΩ internal resistor for base resistor (Rb), and a 100 Ω internal resistor for collector resistor (Rc). The adapter supports precise testing setups without external circuit assemblies.

Equipped with 2x15 female connector for direct Analog Discovery connection. Supports testing of common semiconductor devices including transistors and diodes. Integrates with Waveforms software for graphical device characterization.

Includes internal resistors for biasing components during tests. Compact and user-friendly for educational, laboratory, and development environments.

This Adapter is ideal for electronic development, STEM education, laboratory experiments, and semiconductor testing applications requiring detailed device characteristic analysis. Compatible only with Analog Discovery 2 and Analog Discovery Legacy platforms.
