STMicroelectronics STM32 Nucleo-144 MCU Development Board with ARM Cortex M4F 180MHz Microcontroller NUCLEO-F446ZE

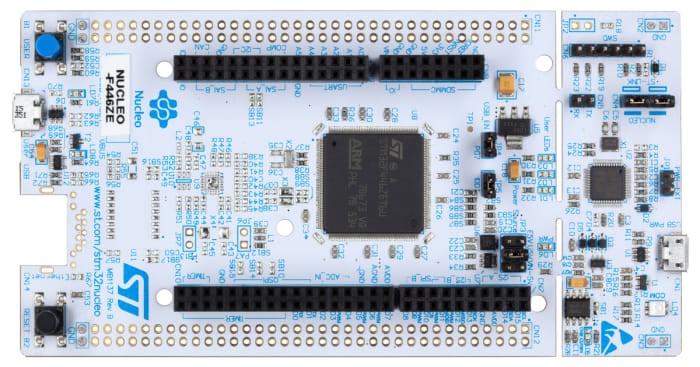

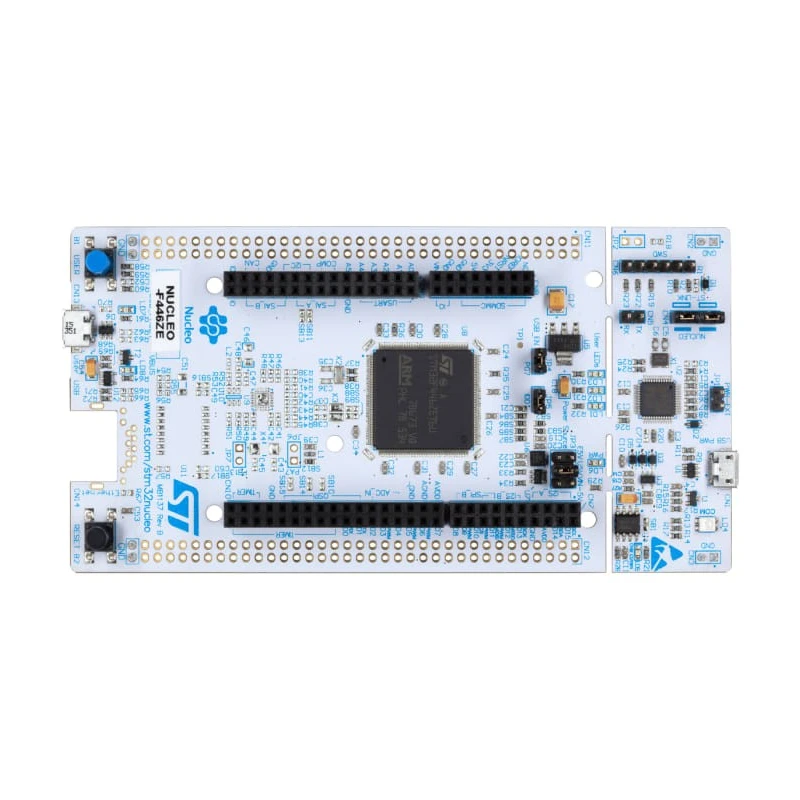

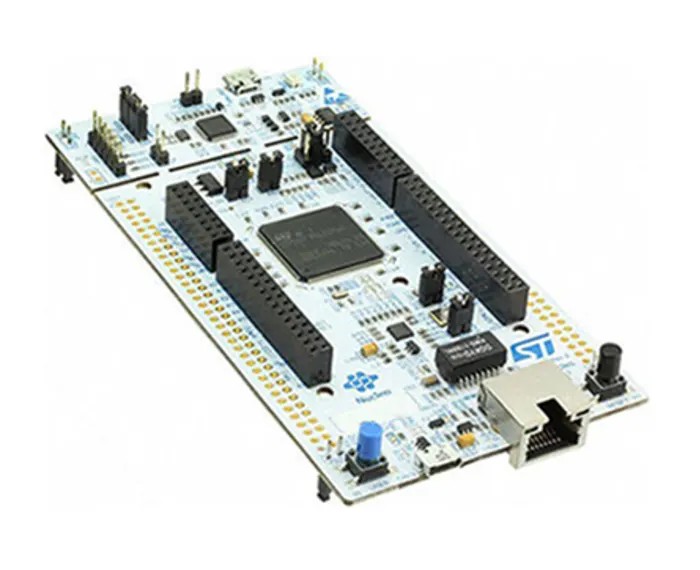

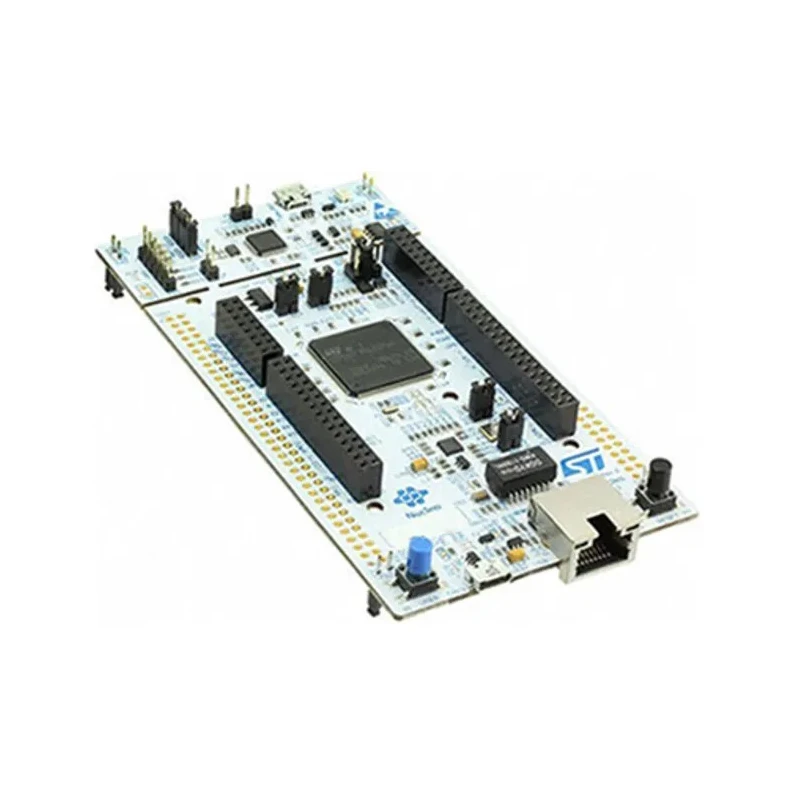

The STMicroelectronics NUCLEO-F446ZE is an advanced MCU Development Board based on the high-performance STM32F446ZET6 microcontroller featuring the ARM Cortex M4F core running at 180 MHz with DSP and FPU instructions. It includes 512 KB of Flash memory and 128 KB of SRAM, offering ample resources for complex embedded application development.

This Nucleo-144 board extends Arduino Uno connectivity with the ST Zio connector and provides access to all GPIO pins via ST morpho extension headers, allowing integration with a wide range of shields and peripheral modules. The board supports flexible power options through USB OTG or an external power supply, promoting use in varied environments.

Integrated ST-LINK/V2-1 debugger/programmer with a Serial Wire Debug interface facilitates easy programming and debugging. The board also features multiple serial communication interfaces - up to 20 including USART, I2C, SPI, CAN, USB, and HDMI-CEC - making it highly versatile for communication protocols.

Additional onboard peripherals include a 32.768 kHz crystal for RTC functionality with subsecond accuracy and hardware calendar, a hardware CRC calculator, and a true random number generator to enhance security in applications. The user interface is enhanced with three LEDs for power, USB communication, and user feedback, along with reset and user pushbuttons for control.

Designed for industrial, educational, and prototype embedded system applications, the NUCLEO-F446ZE supports multiple Integrated Development Environments such as IAR, Keil, GCC-based tools, and ARM mbed online IDE, accelerating firmware development and deployment.

Powered by STM32F446ZET6 180MHz Cortex-M4F MCU with DSP and FPU. 512 KB Flash memory and 128 KB SRAM for program and data storage. ST Zio connector compatible with Arduino Uno shields plus ST morpho headers. Built-in ST-LINK/V2-1 debugger/programmer with SWD and USB interfaces.

Supports wide range of serial communication including USB OTG and HDMI-CEC. RTC with subsecond accuracy, hardware calendar, and 32.768 kHz crystal oscillator. True random number generator and CRC calculation unit embedded onboard.

Three integrated LEDs and pushbuttons for user feedback and control. Supported by ARM mbed and major IDEs for fast development cycles. Explore the wide range of microcontroller development tools and embedded system boards available at EnvMart for your next project.
