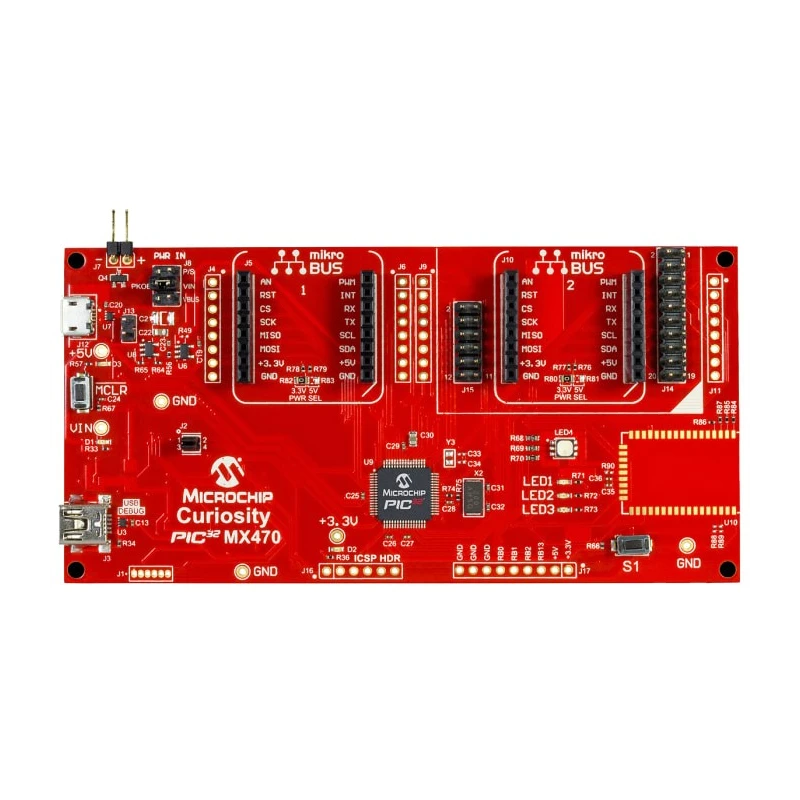

Microchip Curiosity PIC32MX470 MCU Development Board DM320103

Microchip DM320103 MCU Development Board is designed for efficient development of embedded applications requiring high-speed processing. It features a robust 120MHz 32-bit PIC32MX470F512H microcontroller with 512KB Flash and 128KB RAM, suitable for audio processing, USB connectivity, and Bluetooth integration.

The board includes an onboard PICkit On-Board (PKOB) programmer/debugger facilitating seamless programming and debugging. It offers multiple GPIO expansion headers and USB connectors supporting both device and host modes, enhancing its versatility in various project implementations.

Powering options include USB connection or an external +5V supply through dedicated headers, providing flexibility for different development setups. The board equips 3 user-controllable LEDs, an RGB LED, user pushbutton, and an MCLR reset pushbutton for interactive control and debugging.

Additionally, the ICSP header allows connection to external debuggers like MPLAB REAL ICE or MPLAB ICD for advanced debugging capabilities. The development board supports expansion via 32 MikroBUS sockets compatible with MikroElektronika Click boards, broadening the range of peripherals and sensors available for projects.

Integration of audio applications is simplified with an X32 header designed for use with the PIC32 Audio Codec daughter board. Furthermore, there is a footprint for the optional BM64 Bluetooth 4.2 Stereo Audio module, enabling wireless audio streaming and Bluetooth connectivity.

Equipped with a 120MHz PIC32MX470F512H 32-bit microcontroller with 512KB Flash memory and 128KB RAM. Includes PICkit On-Board (PKOB) programmer/debugger for easy development. Features GPIO expansion header and USB connectors supporting device and host modes.

Powered via USB or an external +5V header for flexible power options. Comes with 3 user LEDs, 1 RGB LED, and user pushbutton along with MCLR reset pushbutton. ICSP header supports external debugger such as MPLAB REAL ICE or MPLAB ICD.

Offers 32 MikroBUS sockets for MikroElektronika Click expansion boards. X32 header available for PIC32 Audio Codec daughter board integration. Footprint for optional BM64 Bluetooth 4.2 Stereo Audio module for wireless connectivity.

This Development Board is suitable for industrial, educational, and prototyping projects involving microcontroller-based audio, USB, and Bluetooth applications. Its comprehensive features and ample expansion options make it ideal for embedded system developers and engineers working in communication, consumer electronics, and research fields.
