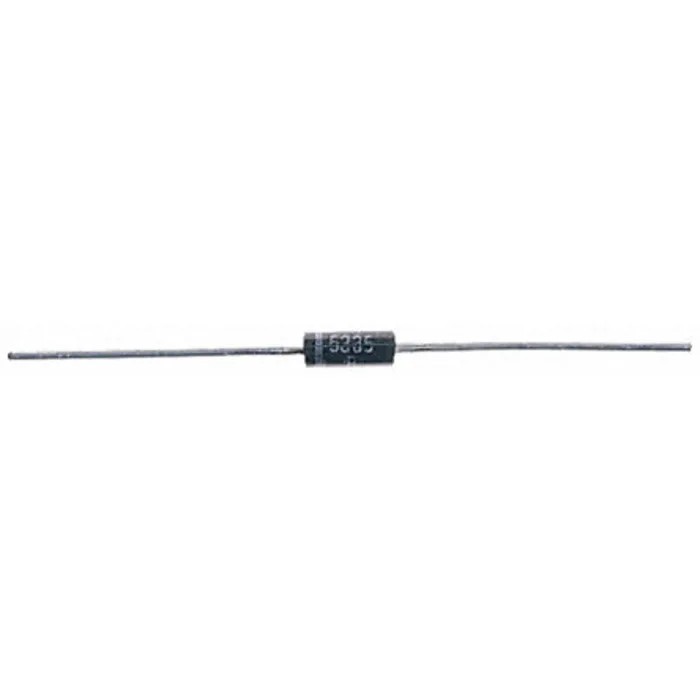

STMicroelectronics 200 V 1 A Switching Diode 2-Pin Through Hole DO-41 STTH102
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.71mm |
| Brand | STMicroelectronics |
| Height | 2.71mm |
| Length | 5.2mm |
| Model | STTH102 |
| Width | 2.71mm |
| Mount Type | Through Hole |
| Series | STTH102 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 970mV |
| Peak Reverse Recovery Time trr | 20ns |
Key Features
- Supports maximum continuous forward current of 1 ampere.
- Maximum peak reverse repetitive voltage of 200 volts ensures robust blocking capability.
- Features a low maximum forward voltage drop of 970 millivolts for efficient conduction.
- Peak non-repetitive forward surge current of 50 amperes for transient tolerances.
- Operates within a temperature range of -65°C to 175°C for versatile environments.
- Compact DO-41 package with dimensions approximately 5.2 mm length and 2.71 mm diameter.
- Low peak reverse current of 1 microampere reduces leakage losses.
- Fast peak reverse recovery time of 20 nanoseconds ideal for switching applications.
Product Description
STMicroelectronics STTH102 is a high-performance switching diode featuring a maximum continuous forward current of 1 ampere and peak reverse repetitive voltage rating of 200 volts. Packaged in the popular DO-41 through-hole form factor, it measures approximately 5.2 mm in length and 2.71 mm in diameter, making it suitable for space-sensitive circuit designs.
This diode offers a low maximum forward voltage of 970 millivolts, ensuring efficient power conduction with minimal voltage drop. It withstands peak non-repetitive forward surge currents of up to 50 amperes, thereby enhancing protection during power surges and transient conditions.
Designed to operate reliably across a wide temperature range from -65°C to 175°C, the STTH102 is ideal for industrial, automotive (non-automotive standard), consumer electronics, and power supply applications. Its fast peak reverse recovery time of 20 nanoseconds contributes to improved switching performance in high-frequency circuits.
The diode maintains a low peak reverse leakage current of 1 microampere, optimizing overall circuit efficiency. It complies with RoHS environmental standards, supporting eco-friendly manufacturing processes.
Maximum continuous forward current: 1A. Peak reverse repetitive voltage: 200V. Maximum forward voltage: 970mV. Peak non-repetitive forward surge current: 50A. Operating temperature range: -65°C to 175°C. Package type: DO-41 through-hole.
Diode configuration: Single diode. Peak reverse current: 1μA. Peak reverse recovery time: 20ns.
Applications include power management circuits, switching regulators, automotive electronics, industrial machinery, and consumer electronic devices requiring efficient switching diodes.
Explore EnvMart's comprehensive selection of semiconductor components to find the right parts for your design and manufacturing needs.
Explore more products in our Semiconductor Switching Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH102 is 1 ampere.
This model has a peak reverse repetitive voltage rating of 200 volts.
The maximum forward voltage drop for this diode is 970 millivolts.
The diode can withstand a peak non-repetitive forward surge current of up to 50 amperes.
It operates reliably within a temperature range of -65°C to 175°C.
The DO-41 package measures approximately 5.2 mm in length and 2.71 mm in diameter.
The peak reverse current is rated at 1 microampere.
This diode features a fast peak reverse recovery time of 20 nanoseconds.
It uses a through-hole mounting type.
The diode complies with RoHS environmental standards.
This diode is suitable for applications in power management circuits, switching regulators, automotive electronics, and industrial machinery.
The STTH102 is configured as a single diode.
