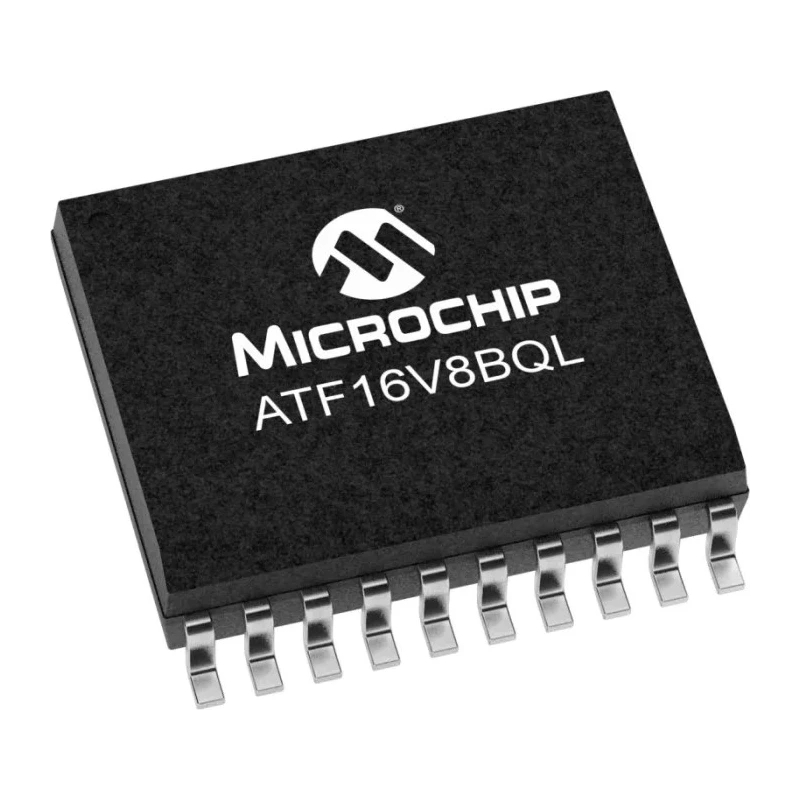

Microchip Complex Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In-System Programmability ATF16V8BQL-15SU

Microchip ATF16V8BQL-15SU is a high-performance complex programmable logic device (CPLD) featuring 150 gates, 8 macro cells, and 8 user inputs/outputs. It operates at a maximum internal frequency of 62 MHz, delivering fast and reliable programmable logic solutions for a wide range of electronic applications.

This device supports in-system programmability and re-programmability, allowing engineers to modify logic functions during development and production without removing the device from the circuit. Its surface mount SOIC package with 20 pins facilitates easy integration into modern PCB layouts.

The device operates on a supply voltage between 4.75 V and 5 V and is designed to function across a broad temperature range from -40°C to 85°C, making it suitable for demanding industrial and commercial environments. It has a maximum propagation delay time of 15 ns, ensuring rapid switching performance. The compact dimensions of 12.8 mm in length and 2.35 mm in height make it ideal for applications where circuit board space is limited.

ATF16V8BQL-15SU complies with PCI standards and is Pb/Halide-free and RoHS certified, reflecting Microchip's commitment to environmentally friendly manufacturing processes. While not designed for automotive use, it meets various IEEE standards for programmable logic devices. This CPLD is commonly used in industrial automation, signal processing, embedded systems, and electronic circuit prototyping.

Supports in-system programmability allowing flexible design changes. Offers re-programmability support for multiple uses. Comes in a 20-pin SOIC surface mount package. Operates within a voltage range of 4.75 V to 5 V to ensure compatibility with various circuits.

Designed to operate in temperatures from -40°C to 85°C for industrial reliability. Maximum propagation delay time is 15 ns, ensuring fast signal processing. Complies with PCI, Pb/Halide-free/RoHS, and relevant IEEE standards.

Compact size with length 12.8 mm and height 2.35 mm for space-saving PCB design. Does not meet automotive standards, suitable for general electronic applications.

This Microchip programmable logic IC is essential for electronics manufacturers, industrial automation systems, and laboratory equipment designers looking for reliable and flexible programmable logic solutions. Explore more programmable logic devices from Microchip on EnvMart for advanced electronic component needs.
