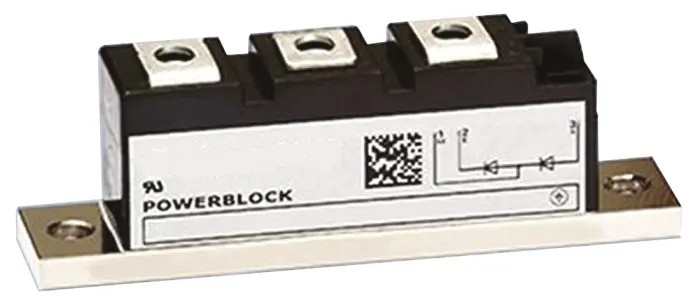

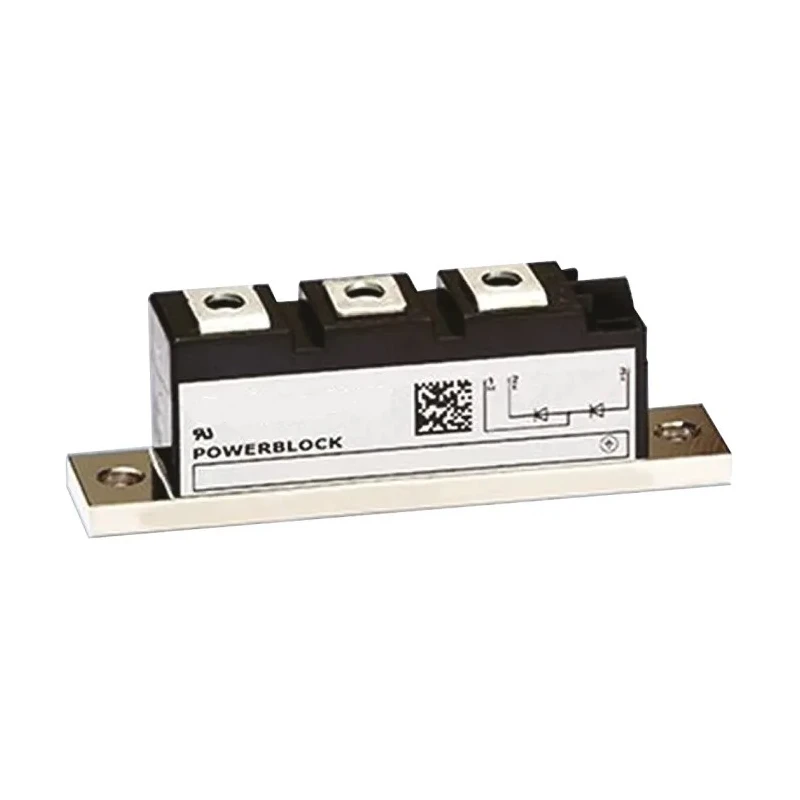

Infineon 1600 V 89 A Diode General Purpose 3-Pin Rectifier Module DD89N16KKHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 30mm |
| Length | 92mm |
| Model | DD89N16KKHPSA1 |
| Width | 20mm |
| Mount Type | Panel |
| Series | DD89N16KK |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 89A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Common Cathode |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.8kA |
| Maximum Forward Voltage Vf | 1.5V |
Key Features
- Designed for high performance in power controllers, soft starters, and drive applications.
- Features pressure contact technology for reliable electrical insulation with an isolated copper base plate.
- Equipped with fail-safe design preventing arcing on failure.
- Wide operating temperature range from -40°C to 150°C.
- Compact dimensions measuring 92 mm length, 30 mm height and 20 mm width.
- Supports a peak non-repetitive forward surge current of 2.8 kA.
- Maximum forward voltage drop of 1.5 V enhances energy efficiency.
- Common cathode diode configuration for versatile circuit integration.
Product Description
Infineon DD89N16KKHPSA1 Diode General Purpose 3-Pin Rectifier Module offers impressive electrical characteristics including a 1600 V peak reverse voltage and a maximum continuous forward current of 89 A. This module is engineered with pressure contact technology featuring an electrically insulated copper base plate to ensure safe and efficient operation.
Ideal for industrial use in power controllers, soft starters, and drive systems, it delivers reliable performance within an operating temperature range of -40°C to 150°C. The diode’s compact size with dimensions of 92 mm length, 30 mm height, and 20 mm width supports easy installation in panel mount applications.
It is designed for fail-safe operation to prevent arcing on failure, ensuring durability and long-term reliability. The 3-pin configuration with a common cathode diode setup enables efficient rectification duties. Its peak non-repetitive forward surge current of 2.8 kA and a low maximum forward voltage of 1.5 V contribute to optimal energy efficiency in demanding environments.
The module does not carry specific automotive or standards approvals, focusing instead on general purpose rectification needs across sectors such as industrial manufacturing, HVAC power control, and electronic equipment. The Infineon DD series trusts in robust construction and proven technology for consistent diode performance.
Designed for high performance in power controllers, soft starters, and drive applications. Features pressure contact technology for reliable electrical insulation with an isolated copper base plate. Equipped with fail-safe design preventing arcing on failure.
Wide operating temperature range from -40°C to 150°C. Compact dimensions measuring 92 mm length, 30 mm height and 20 mm width. Supports a peak non-repetitive forward surge current of 2.8 kA. Maximum forward voltage drop of 1.5 V enhances energy efficiency.
Common cathode diode configuration for versatile circuit integration. General purpose rectifier suitable for various industrial electronic applications. Explore the wider range of Infineon semiconductor products on EnvMart for trusted power and electronic components.
Explore more products in our Rectifier Diode Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Infineon DD89N16KKHPSA1 diode module is 89 A.
This rectifier module has a peak reverse voltage rating of 1600 V.
The dimensions of this diode module are 92 mm in length, 30 mm in height, and 20 mm in width.
The operating temperature range for the Infineon DD89N16KKHPSA1 is from -40°C to 150°C.
This module features a common cathode diode configuration.
The diode supports a peak non-repetitive forward surge current of 2.8 kA.
The maximum forward voltage drop of this rectifier module is 1.5 V.
This diode module is designed for panel mounting.
This diode is suitable for industrial applications such as power controllers, soft starters, and drive systems.
It features pressure contact technology with an electrically insulated copper base plate for reliable electrical insulation.
The peak reverse current rating for this diode is 20 mA.
The country of origin for this diode module is India.
