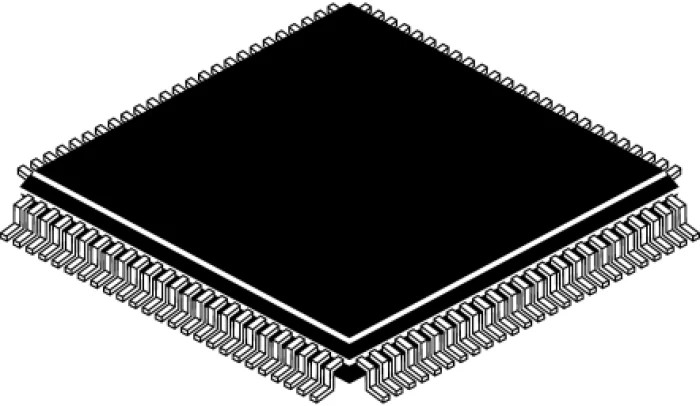

Microchip dsPIC33F 16 bit Digital Signal Processor 40 MIPS 128kB FLASH 100-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | dsPIC33F |
| Width | 12mm |
| Mount Type | Surface |
| Series | dsPIC33F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 19bit |
| Timer Resolution | 16bit |
| Pin Count | 100 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 128kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 9 |
| PWM Resolution | 16bit |
| ADC Channels | 24 |
| Number of PWM Channels | 8 |
Key Features
- Integrates a 40MIPS 16 bit RISC architecture core for high-speed digital signal processing.
- Features 128kB flash program memory and 16kB RAM for efficient code storage.
- Operates at minimum 3V supply voltage with operating temperature range from -40°C to 85°C.
- Includes 2 ADCs with 19 bit resolution and 24 ADC channels for precise analog input processing.
- Supports 8 PWM channels and 9 timers with 16 bit resolution suitable for motor and power control applications.
- Comes in a compact 100-pin TQFP surface mount package with dimensions 12mm x 12mm x 1.05mm.
- Certified to automotive standard AEC-Q100 ensuring reliability in automotive applications.
- Ideal for high-performance digital filtering, audio processing, motor control, and power supply designs.
Product Description
Microchip DSPIC33FJ256MC710-I/PT is a high-performance 16 bit digital signal processor designed to combine the power of DSP with the ease of microcontroller control. Featuring a 40MIPS dsPIC33F core, this device excels at executing complex digital filter algorithms, high-speed precision digital control loops, digital audio, and speech processing.
Equipped with 128kB FLASH program memory and 16kB RAM, it supports reliable code execution and data handling. The device operates with a minimum supply voltage of 3V and within a wide temperature range from -40 to 85 degrees Celsius, making it suitable for harsh industrial and automotive environments.
This DSP includes 2 ADCs with 19 bit resolution across 24 channels for detailed analog input capture, alongside 8 PWM channels and 9 timers at 16 bit resolution to enable sophisticated motor control and power management tasks. Mounting is via a 100-pin TQFP surface mount package sized at 12 mm by 12 mm by 1.05 mm thickness, suitable for compact PCB designs.
The device meets automotive grade standard AEC-Q100, reinforcing its reliability and durability in automotive systems. It supports advanced motor control peripherals and digital power supply features including high-speed PWM and analog comparators for effective power electronics applications.
Application areas include industrial motor control, digital power supplies, audio and speech signal processing, and embedded digital control systems. This device empowers developers to ideate, create, and collaborate for precision and efficient embedded designs.
High-speed 40MIPS 16 bit RISC DSP core. 128kB FLASH program memory and 16kB RAM. 8 PWM channels and 9 timers for precise control. 2 ADCs with 19 bit resolution and 24 channels. 100-pin TQFP package with compact footprint.
Automotive grade AEC-Q100 certified. Suitable for motor control, audio processing, and power electronics. Explore more Digital Signal Processors and microcontrollers at EnvMart for your embedded system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a processing speed of 40 MIPS, enabling high-speed digital signal processing tasks.
It includes 128kB of FLASH program memory and 16kB of RAM for efficient code storage and execution.
The device operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
This model is equipped with 24 ADC channels, allowing for detailed analog input capture.
It features 2 ADCs with a resolution of 19 bits, ensuring precise analog input processing.
It supports 8 PWM channels, which are suitable for motor and power control applications.
This unit comes in a 100-pin TQFP surface mount package with dimensions of 12mm x 12mm x 1.05mm.
It is certified to the automotive standard AEC-Q100, ensuring reliability in automotive applications.
This model utilizes a RISC instruction set architecture, which is efficient for executing complex algorithms.
It requires a minimum supply voltage of 3V to operate effectively.
