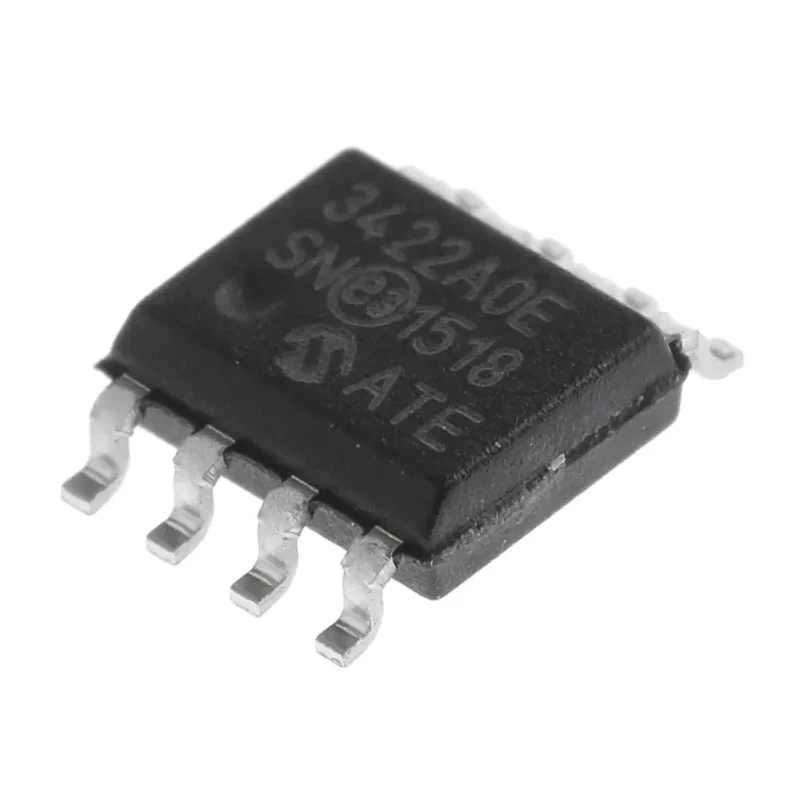

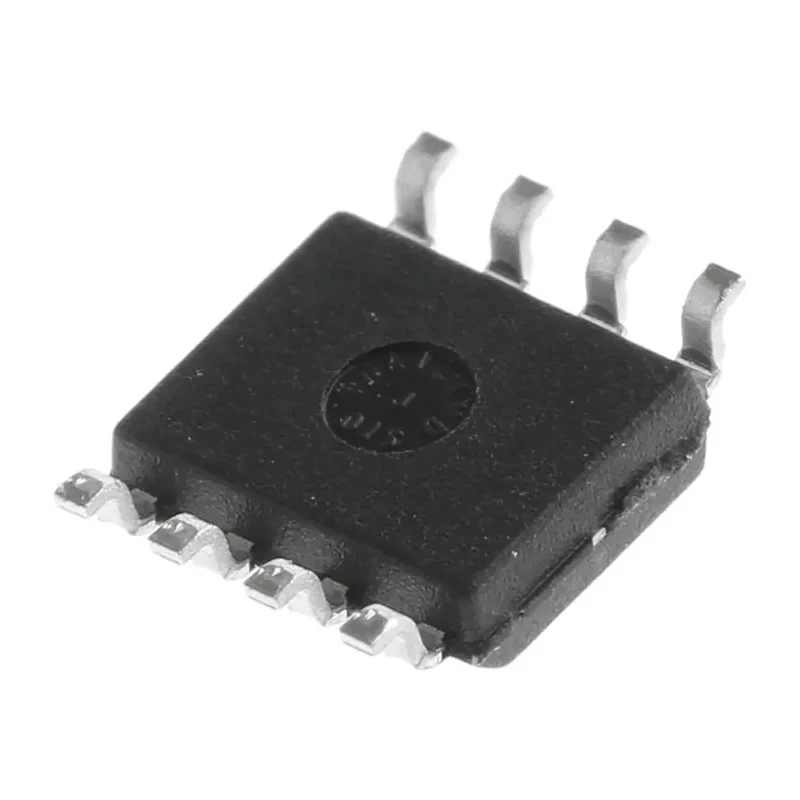

Microchip Delta Sigma 2 ADC 18 bit Resolution 4 sps Sampling Rate Serial-I2C Interface SOIC 8-Pin MCP3422A0-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 18 bit |
| Brand | Microchip |
| Height | 1.44mm |
| Length | 5.01mm |
| Model | MCP3422A0-E/SN |
| Mount Type | Surface |
| Sampling rate | 4sps |
| Series | MCP3422 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 2 |
Key Features
- The device includes 2 ADC channels suitable for voltage input measurement.
- It operates with a minimum supply voltage of 5V and a maximum of 5.5V, ensuring stable performance.
- Built for surface mount technology, allowing seamless integration onto printed circuit boards.
- Operating temperature ranges from -40°C to 85°C for robust performance in various environments.
- Interface type is Serial-I2C, enabling easy communication with microcontrollers.
- The compact package size includes a length of 5.01mm and height of 1.44mm, optimizing board space.
- Automotive standard AEC-Q100 compliance ensures suitability for automotive applications.
- Designed for industrial, laboratory, and electronic control systems requiring precise analog-to-digital conversion.
Product Description
Microchip MCP3422A0-E/SN is a high-precision analogue to digital converter utilizing delta sigma architecture. The device features two ADC channels with 18 bit resolution and supports a sampling rate of 4 samples per second. Packaged in a compact 8-pin SOIC surface mount package, the MCP3422A0-E/SN is designed for efficient integration in modern electronics.
This ADC operates over a wide temperature range from -40°C to 85°C, ensuring reliable operation across demanding industrial and automotive environments. It accepts voltage inputs and communicates over a Serial-I2C interface, making it compatible with various microcontrollers and embedded systems.
With a minimum supply voltage of 5V and a maximum of 5.5V, this component balances power consumption and signal integrity. Its compact dimensions of 5.01mm in length and 1.44mm in height allow for space-saving designs.
The MCP3422A0-E/SN complies with the automotive AEC-Q100 standard, endorsing its suitability for automotive electronics and other high-reliability applications such as manufacturing instrumentation, laboratory equipment, and electronic control units.
The device includes 2 ADC channels suitable for voltage signal measurement. Delta sigma architecture offers high resolution and noise rejection. Sampling rate supports low-frequency measurement applications at 4 samples per second.
Surface mount SOIC package provides compact footprint for PCB design. Wide operating temperature range from -40°C to 85°C allows use in harsh environments. Serial-I2C digital interface facilitates integration with digital systems.
Meets automotive standard AEC-Q100 for reliability. Compact dimensions promote versatility in electronic applications.
This analogue to digital converter is ideal for applications in industrial process control, automotive sensor interfacing, data acquisition systems, and laboratory instrumentation requiring precise low-speed digital conversion of analog signals.
Explore a wide range of semiconductor and analogue to digital converter products by Microchip available on EnvMart for engineering and manufacturing needs.
Explore more products in our Analogue to Digital Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an 18-bit resolution for precise analog-to-digital conversion.
The maximum supply voltage for the MCP3422A0-E/SN is 5.5V.
It supports a sampling rate of 4 samples per second.
The MCP3422A0-E/SN utilizes a Serial-I2C interface for communication with microcontrollers.
This unit has a length of 5.01mm and a height of 1.44mm, making it compact for PCB designs.
It operates within a temperature range of -40°C to 85°C, suitable for various environments.
This device includes 2 ADC channels for voltage input measurement.
It employs delta sigma architecture, which offers high resolution and noise rejection.
Yes, it complies with the automotive standard AEC-Q100, ensuring reliability for automotive applications.
The MCP3422A0-E/SN accepts voltage inputs for measurement.
This model is designed for surface mount technology, facilitating integration onto printed circuit boards.
It is ideal for industrial process control, automotive sensor interfacing, data acquisition systems, and laboratory instrumentation.
