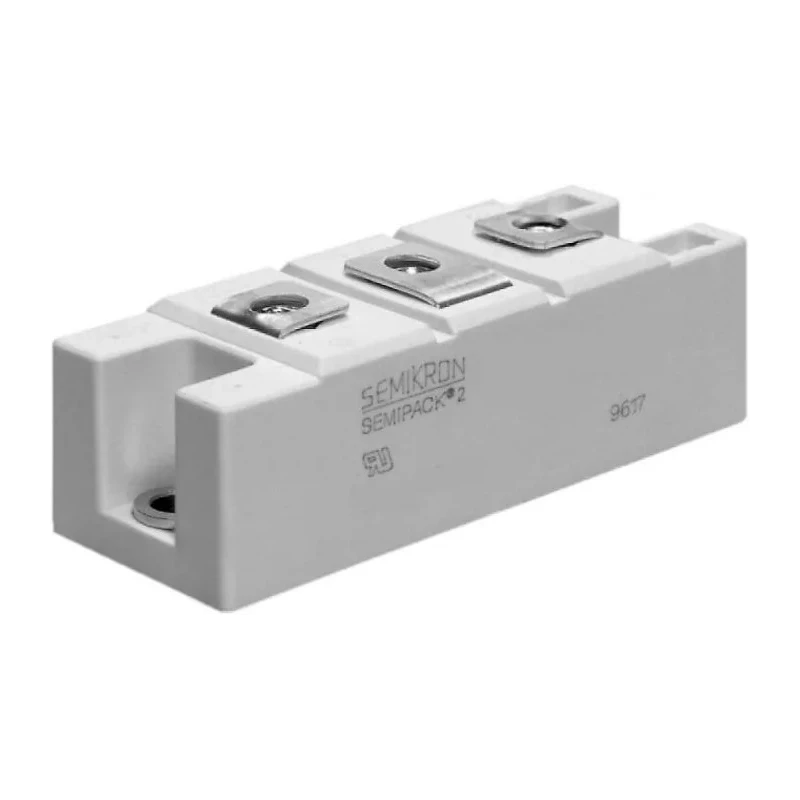

Semikron Danfoss Panel Mount A-23 Package Type 1200 V 310 A Rectifier Diode SKKD 162/12

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Panel Mount A-23 Package Type 1200 V 310 A Rectifier Diode SKKD 162/12

Name: Semikron Danfoss Panel Mount A-23 Package Type 1200 V 310 A Rectifier Diode SKKD 162/12
Brand: Semikron Danfoss
SKU: 284019
Price: 91.87 USD
Availability: InStock



Category Rectifier Diode Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	India
Brand	Semikron Danfoss
Height	30mm
Length	94mm
Model	SKKD 162/12
Width	34mm
Mount Type	Panel
Maximum Operating Temperature	135°C
Package Type	A-23
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	310A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	2x Series Pair
Peak Non-Repetitive Forward Surge Current Ifsm	6kA
Maximum Forward Voltage Vf	1.5V

Key Features

Designed for panel mount applications with A-23 package type.
Maximum continuous forward current of 310 amperes for heavy-duty use.
Peak reverse repetitive voltage rating of 1200 volts ensures reliable blocking capability.
Diode configuration consists of 2x series pair with 3 pins for connection.
Maximum forward voltage of 1.5 volts minimizes power loss during conduction.
Operates reliably between -40°C and 135°C temperature range.
Can withstand peak non-repetitive forward surge current of up to 6 kiloamperes.
Physical dimensions approximately 94 mm in length, 34 mm width, and 30 mm height.

Product Description

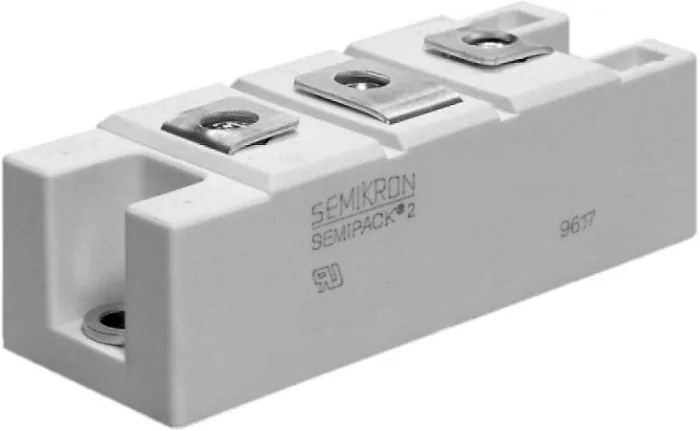

The Semikron Danfoss SKKD 162/12 is a high-performance Rectifier Diode Module designed for panel mounting with an A-23 package type. It features a 2x series pair diode configuration and three-pin connections providing robust electrical performance for industrial applications.

This diode module offers a maximum continuous forward current rating of 310 A and a peak reverse repetitive voltage of 1200 V, making it suitable for demanding power electronics environments. The device supports a maximum forward voltage of 1.5 V, facilitating efficient conduction with minimum loss.

Operating reliably in a temperature range from -40°C to 135°C, the diode is engineered for use in harsh conditions. It can handle peak non-repetitive forward surge currents of up to 6 kA, which ensures protection and durability in transient overload situations.

The physical dimensions of the module are 94 mm length, 34 mm width, and 30 mm height. It incorporates an aluminium oxide ceramic isolated metal base plate with hard soldered joints, enhancing mechanical strength and thermal dissipation.

This technology is optimized for use in industrial sectors including power control, motor controllers, non-controllable rectifiers for AC/AC converters, and line rectifiers for transistorized AC motor controllers. It supports enhanced reliability and performance in heavy electrical equipment.

Designed for panel mount with A-23 package for easy integration. 310 A continuous forward current capacity for high power applications. 1200 V peak reverse repetitive voltage rating for blocking capabilities. 2x series pair diode configuration with 3 pins for electrical connectivity.

Low forward voltage drop of 1.5 V helps in energy efficiency. Wide operating temperature range of -40°C to 135°C suitable for diverse environments. Peak surge current capability of 6 kA ensures robustness against surges.

Compact dimensions and stiff metal base plate for durability and heat dissipation. Ideal for industrial power electronics applications. Explore more semiconductor and diode solutions from leading brands at EnvMart for your electronic component needs in industry and manufacturing.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current rating of this model is 310 amperes, making it suitable for heavy-duty applications.

This rectifier diode has a peak reverse repetitive voltage rating of 1200 volts, ensuring reliable blocking capability.

The diode configuration consists of a 2x series pair, which allows for robust electrical performance in industrial applications.

The maximum forward voltage drop for this unit is 1.5 volts, which helps minimize power loss during conduction.

It operates reliably within a temperature range of -40°C to 135°C, making it suitable for diverse environments.

This model can withstand a peak non-repetitive forward surge current of up to 6 kiloamperes, providing protection against transient overloads.

The physical dimensions are approximately 94 mm in length, 34 mm in width, and 30 mm in height.

This rectifier diode is designed for panel mount applications with an A-23 package type for easy integration.

This model features a three-pin connection for electrical connectivity.

The module incorporates an aluminium oxide ceramic isolated metal base plate with hard soldered joints, enhancing mechanical strength and thermal dissipation.

It is optimized for use in industrial sectors, including power control, motor controllers, and line rectifiers for transistorized AC motor controllers.

The country of origin for this rectifier diode is India.
