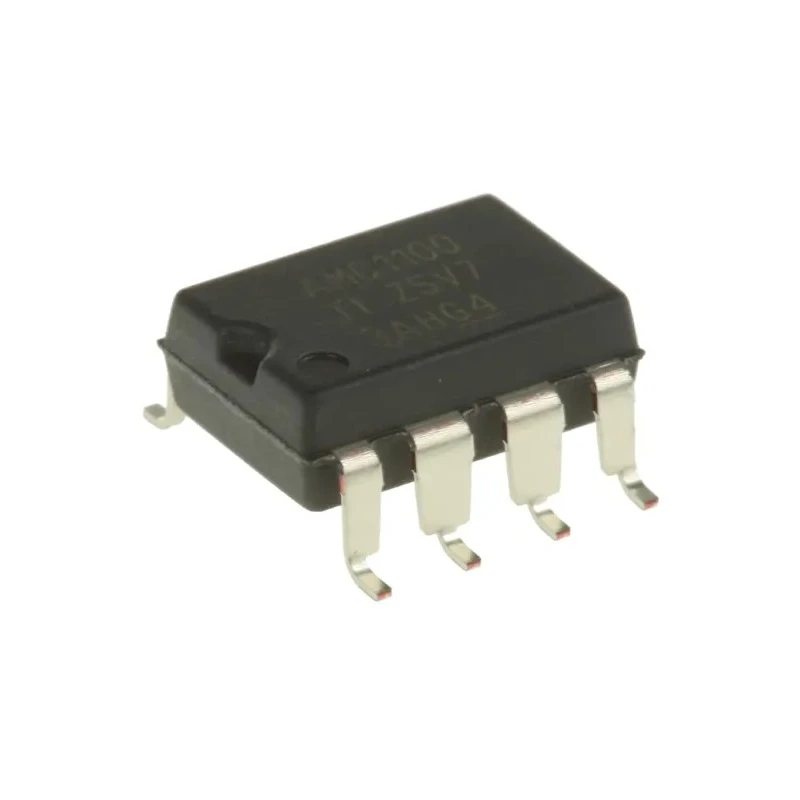

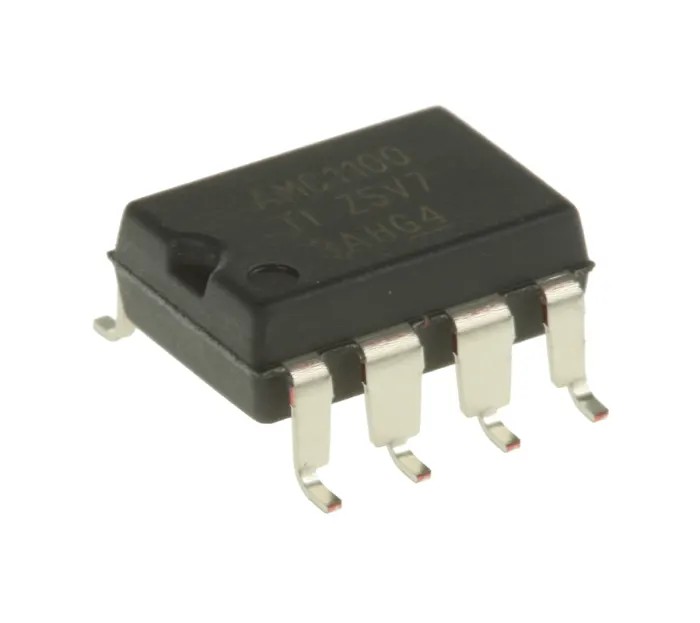

Texas Instruments Isolation Amplifier 8-Pin SOP 6V Maximum Supply Voltage AMC1100DUB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.35mm |
| Length | 9.55mm |
| Model | AMC1100DUB |
| Mount Type | Surface |
| Series | AMC1100 |
| Maximum Operating Temperature | 105°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Isolation Voltage | 1200V |
| Minimum Supply Voltage | -0.5V |
| Vos - Input Offset Voltage | 250 mV |
| CMRR - Common Mode Rejection Ratio | 108dB |
Key Features
- Supports a maximum supply voltage of 6V for reliable operation.
- Designed as a surface mount device with an 8-pin SOP package for compact PCB integration.
- Offers a high isolation voltage rating of 1200V for electrical safety.
- Features a single input channel with noise reduction through 108dB common mode rejection ratio.
- Operates reliably in temperature ranges from -40°C to 105°C.
- Compact physical dimensions measuring 9.55mm in length and 3.35mm in height.
- Suitable for use in industrial, instrumentation, and consumer electronics requiring galvanic isolation.
- No automotive-grade certification compliance is included.
Product Description
Texas Instruments AMC1100DUB is a highly reliable isolation amplifier designed for electronic applications requiring galvanic isolation with high accuracy. It supports a maximum supply voltage of 6V and minimum supply voltage of -0.5V, which ensures stable performance across varying operating conditions. The device comes in an 8-pin SOP surface mount package with compact physical dimensions of 9.55mm length and 3.35mm height, making it suitable for dense PCB layouts.
This isolation amplifier features a single input channel and an input offset voltage of 250 mV, providing precise signal amplification with minimal error. It has a high common mode rejection ratio (CMRR) of 108dB to effectively suppress noise and interference, enhancing measurement accuracy in industrial and instrumentation systems.
The device offers a high isolation voltage rating of 1200V for electrical safety and robust isolation between input and output circuits, complying with typical industrial safety requirements. It operates within a temperature range from -40°C to 105°C, suitable for harsh environmental conditions.
Texas Instruments AMC1100DUB is designed for a wide range of applications including electronic isolation in measurement devices, industrial control systems, and power supply monitoring. While no specific automotive standards are met, it supports surface mount technology (SMT) for modern automated PCB assembly processes.
Supports 6V maximum supply voltage for stable operation. Surface mount 8-pin SOP package enables compact PCB design. 1200V isolation voltage ensures electrical safety and isolation. High input offset voltage at 250 mV allows precise signal processing.
108dB common mode rejection reduces noise interference. Operating temperature range from -40°C to 105°C for industrial use. Compact size of 9.55mm by 3.35mm suits dense layouts. No automotive standard certification included.
For engineers and designers seeking a robust Isolation Amplifier for semiconductor-based electronic components, Texas Instruments AMC1100DUB offers excellent performance and reliability. Explore more electronic components and amplifiers available on EnvMart to meet diverse industrial and laboratory application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the AMC1100DUB is 6V, ensuring stable operation across varying conditions.
It features a high isolation voltage rating of 1200V, providing electrical safety and robust isolation between input and output circuits.
This model has compact physical dimensions of 9.55mm in length and 3.35mm in height, making it suitable for dense PCB layouts.
The AMC1100DUB offers a common mode rejection ratio of 108dB, effectively suppressing noise and interference for enhanced measurement accuracy.
It operates reliably within a temperature range from -40°C to 105°C, suitable for harsh environmental conditions.
This isolation amplifier has a single input channel, designed for precise signal amplification.
It is designed as a surface mount device in an 8-pin SOP package, facilitating compact PCB integration.
The input offset voltage for the AMC1100DUB is 250 mV, allowing for precise signal processing with minimal error.
No, this model does not include automotive-grade certification compliance.
The minimum supply voltage for this isolation amplifier is -0.5V, ensuring stable performance across a range of operating conditions.
It is suitable for use in industrial, instrumentation, and consumer electronics that require galvanic isolation.
The AMC1100DUB is manufactured in India.
