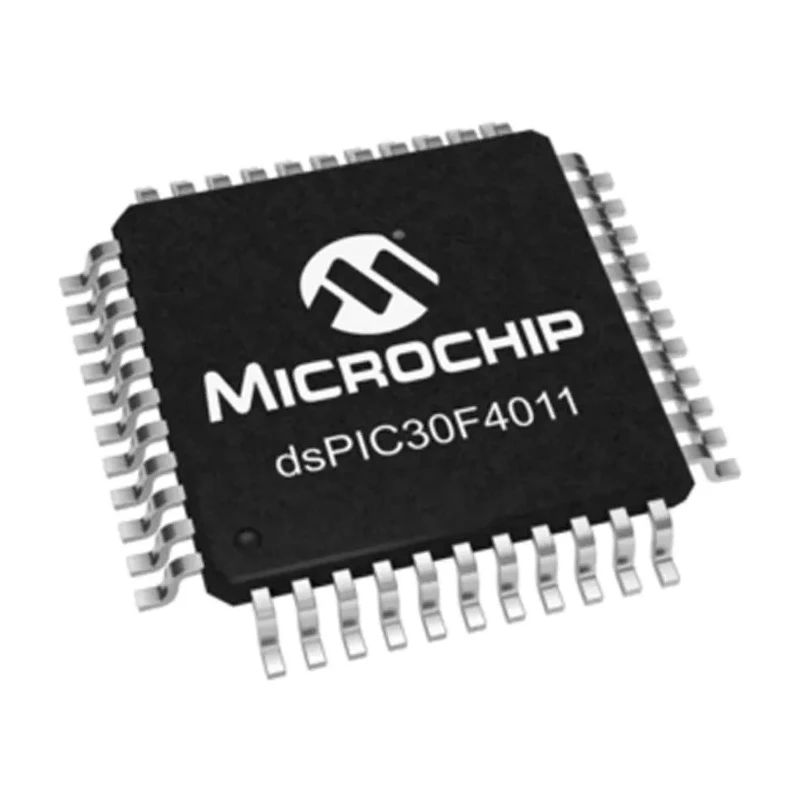

Microchip dsPIC30F 16-bit Digital Signal Processor 30 MIPS 48kB FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC30F |
| Width | 10mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 10bit |
| Timer Resolution | 16bit |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 48kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 5 |
| PWM Resolution | 16bit |
| ADC Channels | 9 |
| Number of PWM Channels | 6 |
Key Features
- Operates over a wide voltage range from 2.5V to 5.5V.
- Features 2kB RAM and RISC instruction set architecture for efficient processing.
- Contains 6 PWM channels and integrates motor control peripherals.
- Comes in a compact 44-pin TQFP package with 10mm x 10mm dimensions.
- Includes 9 ADC channels with 10-bit resolution for precise analog input.
- Supports high performance with a maximum operating temperature of 85°C and minimum of -40°C.
- Ideal for digital power converters, advanced motor control, speech, audio, and smart sensing applications.
- Implements integrated EEPROM and stands out with extremely low standby current.
Product Description
Microchip dsPIC30F4011-30I/PT is a 16-bit digital signal controller designed to deliver high-performance DSP capabilities combined with MCU simplicity. It operates at 30 Million Instructions Per Second (MIPS) and features 48kB of FLASH program memory and 2kB of RAM, implementing a RISC instruction set for optimized processing within resource-constrained embedded systems.
This digital signal processor supports a broad operating voltage range from 2.5V up to 5.5V, catering to applications requiring diverse power conditions. The package is a surface-mount 44-pin Thin Quad Flat Pack (TQFP) with compact dimensions of 10mm by 10mm and a height of 1.05mm, facilitating integration into space-sensitive designs.
The processor offers 6 PWM channels and 9 ADC channels with a 10-bit resolution, enabling precise digital control and sensing capabilities essential for motor control, power conversion, and signal processing tasks. PWM units have a 16-bit resolution and there are 5 available timers with 16-bit resolution to manage timing-critical functions efficiently.
Designed specifically for industrial, automotive (non-certified), and commercial embedded applications, this component supports temperature ranges from -40°C to 85°C, ensuring reliable operation under harsh environmental conditions.
Microchip's dsPIC30F series optimally balances power consumption and performance by incorporating integrated EEPROM and extremely low standby currents. These features make it ideal for smart sensing applications that require sophisticated algorithms in compact embedded environments including digital power supplies, advanced motor control systems, and audio codec processing.
Wide voltage range from 2.5V to 5.5V supports versatile power supply conditions. Compact 44-pin TQFP package suitable for high-density PCB layouts. 30 MIPS performance enables complex real-time processing tasks. 48kB FLASH memory offers ample program storage for embedded firmware.
Multiple PWM and ADC channels facilitate motor control and sensor interfacing. Supports industrial operating temperature range ensuring durability. Integrated EEPROM and low power modes reduce overall power consumption.
This processor is highly suitable for use in industrial machines, electronic control systems, motor control applications, and other embedded systems requiring efficient digital signal processing capability. Explore more products within the Digital Signal Processor category on EnvMart to find complementary components suited for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wide voltage range from 2.5V to 5.5V, making it suitable for diverse power supply conditions.
This model features 48kB of FLASH program memory, providing ample storage for embedded firmware.
The maximum operating temperature is 85°C, allowing it to function in high-temperature environments.
It includes 6 PWM channels, which are essential for motor control and other applications requiring precise digital control.
The ADC channels have a resolution of 10 bits, enabling precise analog input measurements.
The TQFP package has dimensions of 10mm x 10mm and a height of 1.05mm, suitable for compact PCB layouts.
It supports 9 ADC channels, facilitating various sensing applications.
It implements a RISC instruction set architecture, optimizing processing efficiency for embedded systems.
The maximum supply voltage is 5.5V, which is critical for ensuring proper operation within specified limits.
There are 5 timers available, each with a 16-bit resolution, designed to manage timing-critical functions effectively.
It is ideal for digital power converters, advanced motor control, speech, audio, and smart sensing applications.
The processor includes 2kB of RAM, which supports its processing capabilities in embedded applications.
