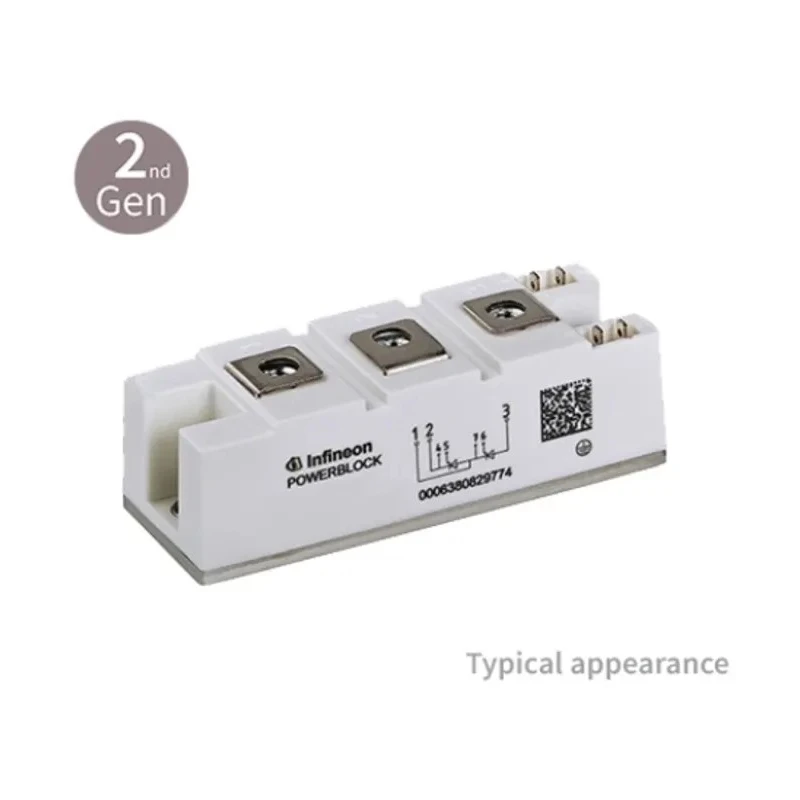

Infineon 1600 V 220 A Netz-Dioden-Modul Rectifier Diode Module General Purpose 3-Pin Eco Block DD220N16SHPSA1

Infineon DD220N16SHPSA1 Netz-Dioden-Modul Rectifier Diode Module is a high-performance, general-purpose diode module designed for robust industrial power applications. Rated at 1600 volts and 220 amperes continuous forward current, this module delivers reliable rectification in power conversion systems. Its 3-pin Eco Block package uses solder bond technology and features an electrically insulated base plate ensuring safe and efficient electrical isolation.The diode module exhibits a peak reverse repetitive voltage of 1600 V and can withstand a peak non-repetitive forward surge current of up to 5750 A, making it suitable for demanding transient load conditions. It supports operation within a wide temperature range from -40°C to 130°C, enabling deployment in diverse environmental settings.

Physically, the module measures 94 mm in length, 34 mm in width, and 30 mm in height, with a pin diameter of 8.5 mm, allowing easy integration into power control assemblies. Its maximum forward voltage of 1.39 V ensures efficient conduction while minimizing losses.

This rectifier diode module is ideally used in phase control and power electronics where high reliability and durability are required. Being the second generation with an increased current rating compared to prior models, it represents a dependable solution for industrial, manufacturing, and energy conversion applications.

Sold as a single module, the Infineon DD220N16SHPSA1 combines advanced semiconductor technology with robust packaging standards to meet stringent industrial requirements. The module has a maximum continuous forward current of 220 A for reliable power handling.

Peak reverse repetitive voltage rating is 1600 V to ensure high voltage endurance. It is mounted using screws and features Eco Block packaging for secure installation. The diode configuration is series with a general purpose rectifier suitable for power electronics.

The device tolerates operating temperatures from -40°C up to 130°C for varied environmental conditions. Peak non-repetitive forward surge current capability reaches 5750 A for transient load handling. The maximum forward voltage drop is 1.39 V contributing to efficient conduction.

The module dimensions are compact with a length of 94 mm, width of 34 mm, and height of 30 mm. The construction includes solder bond technology with an electrically insulated base plate enhancing durability. It is ideal for phase control applications in industrial power systems.
