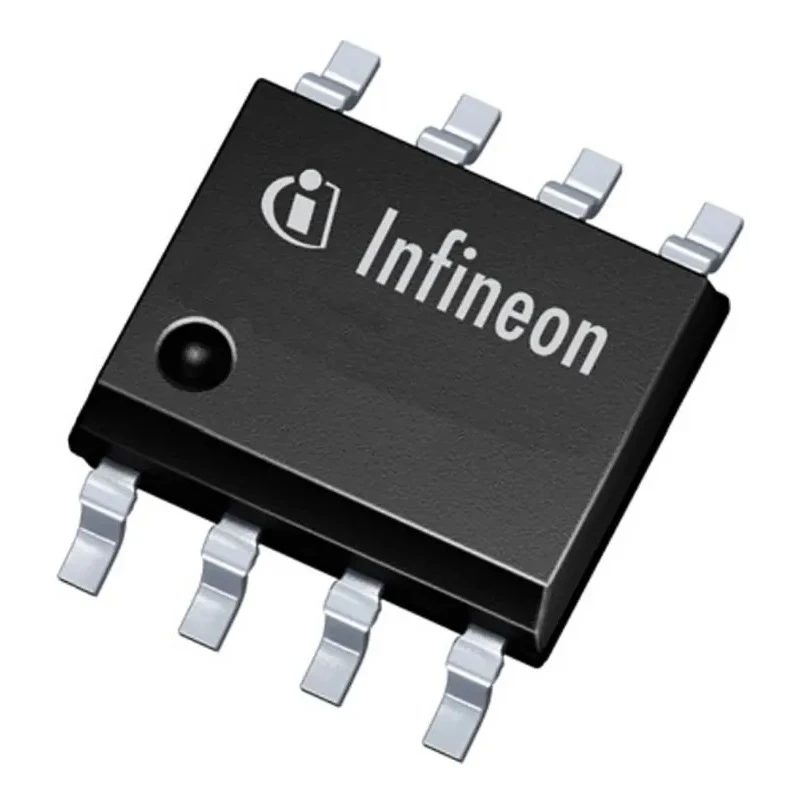

Infineon 1EDI20N12AFXUMA1 2-Output MOSFET Gate Driver, 4A, 8-Pin, 17V DSO Package
Specifications
| Country of Origin | China |
|---|---|
| Brand | Infineon |
| Height | 1.65mm |
| Length | 5mm |
| Model | 1EDI20N12AFXUMA1 |
| Width | 4mm |
| Mount Type | Surface |
| Series | 1EDI20N12AF |
| Output Current | 4A |
| Maximum Operating Temperature | 125°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 20ns |
| Pin Count | 8 |
| Minimum Supply Voltage | 17V |
| Number of Drivers | 2 |
| Fall Time | 19ns |
| Driver Type | MOSFET |
Key Features
- Provides isolated gate driving for MOSFET and IGBT devices.
- Delivers up to 4A output current for fast switching and high efficiency.
- 8-pin DSO surface-mount package ensures compact integration.
- Wide operating input voltage range up to 17V for design flexibility.
- Optimized rise and fall times (20ns/19ns) for minimal signal delay.
- Operates in temperatures from -40°C to 125°C for industrial reliability.
- Features input-to-output isolation for safe operation in power circuits.
- Suitable for motor drives, power management, and high-speed switching electronics.
Product Description
The Infineon 1EDI20N12AFXUMA1 is a high-performance, isolated two-channel MOSFET Gate Driver designed for advanced power management and switching applications. Its 8-pin DSO surface-mount package houses robust driving capabilities that meet the requirements of industrial and commercial users seeking both reliability and efficiency.
This device delivers up to 4A of output current and operates with a supply voltage up to 17V, enabling fast and controlled switching for various power electronics. Its dual-channel architecture supports separate source and sink outputs, allowing for flexible integration in complex systems. Optimized rise and fall times (20ns and 19ns, respectively) ensure minimal signal distortion and fast response - ideal for switching demanding loads such as motors, converters, and high-frequency inverters.
Isolated MOSFET/IGBT driver circuitry supports safe electrical isolation of inputs and outputs, essential in industrial motor drive and brushless DC motor control. Compact 8-pin DSO form factor designed for automated PCB assembly with minimal board space consumption.
Operates reliably from -40°C to 125°C, making it suitable for harsh or varying environments including industrial, laboratory, and automotive applications. Surface-mount package is easy to integrate into modern power management and gate driver IC boards.
Wide application support, including power management systems, AC motor drives, brushless motor controllers, and switching power supplies. IEC standard compliance for safety and input-to-output isolation protection. Engineered by Infineon - a worldwide leader in semiconductor and power electronics solutions.
Typical use cases include gate driving of high- and low-side MOSFETs or IGBTs in half-bridge or full-bridge switching designs, motor drive modules, industrial automation controls, and energy conversion systems. Its isolation and high current drive capability are especially valuable in applications where transient voltages or electrical noise are prevalent.
The supplied package includes one Infineon 1EDI20N12AFXUMA1 gate driver IC. For more design resources, refer to Infineon's application notes and RoHS certificates as appropriate for your requirements.
Explore the full range of Infineon gate drivers and advanced power management solutions on EnvMart. Discover reliable, efficient semiconductor components for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers up to 4A of output current, enabling fast switching and high efficiency for various power electronics applications.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for harsh industrial environments.
The rise time is optimized at 20ns and the fall time at 19ns, ensuring minimal signal delay and distortion during operation.
The device comes in an 8-pin DSO surface-mount package with dimensions of 5mm length, 4mm width, and 1.65mm height.
This model features two outputs, allowing for flexible integration in complex systems with separate source and sink capabilities.
The maximum operating supply voltage for this unit is 17V, providing design flexibility for various applications.
It is designed to provide isolated gate driving for MOSFET and IGBT devices, suitable for power management and motor drive applications.
This model is suitable for applications including motor drives, power management systems, and high-speed switching electronics.
The input-to-output isolation is essential for safe operation in power circuits, particularly in industrial motor drive and control applications.
This model belongs to the 1EDI20N12AF series, which includes various MOSFET gate drivers designed for advanced power management.
It features a surface mount design, making it suitable for automated PCB assembly and compact integration.
The Infineon 1EDI20N12AFXUMA1 is manufactured in China.
