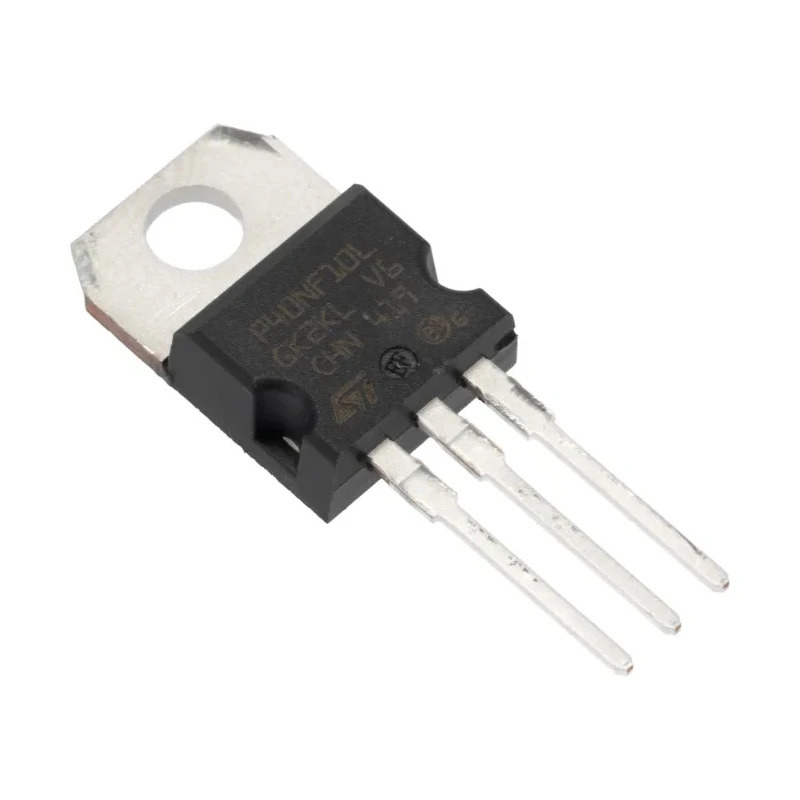

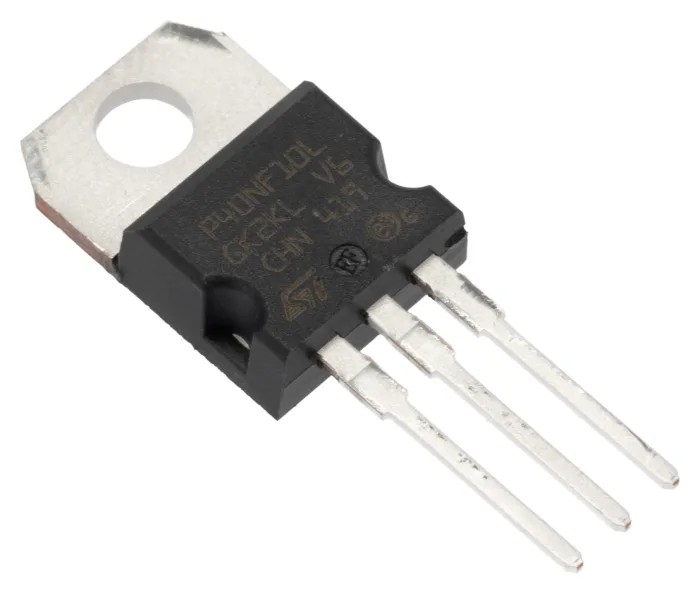

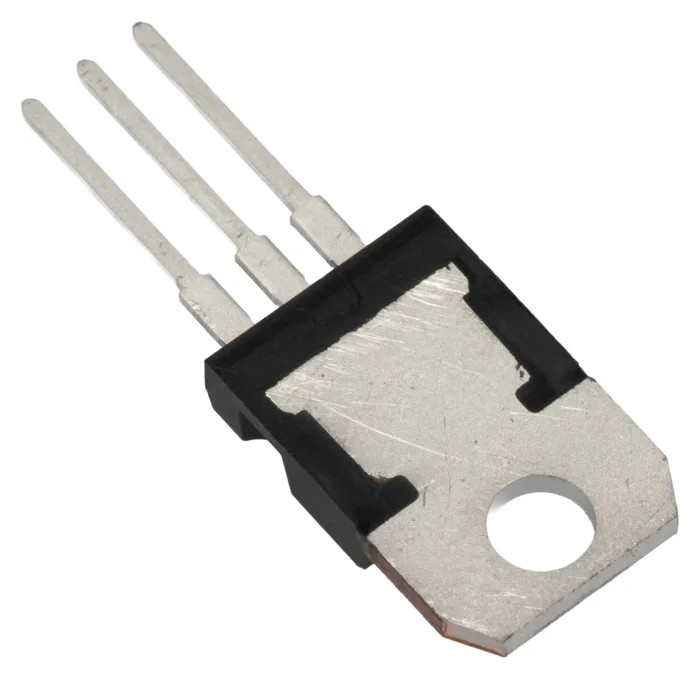

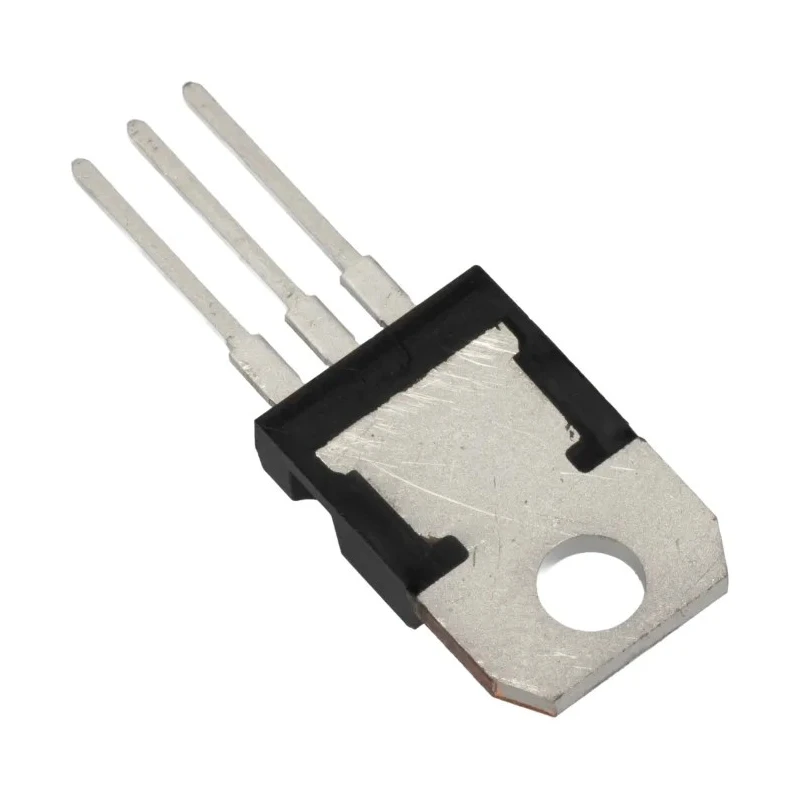

STMicroelectronics STripFET N-Channel MOSFET 40 A, 100 V, Enhancement Mode, 3-Pin TO-220 STP40NF10L
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | STP40NF10L |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STripFET |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 40A |
| Maximum Drain Source Voltage Vds | 100V |
| Maximum Drain Source Resistance Rds | 33mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 150W |
| Typical Gate Charge Qg @ Vgs | 46nC |
| Maximum Gate Source Voltage Vgs | -17, +17V |
| Forward Voltage Vf | 1.3V |
| Transistor,MOSFET,STP22NE10LBrand | STMicroelectronics |
Key Features
- Enhancement mode MOSFET suitable for power switching applications.
- Maximum continuous drain current of 40 A ensures high current handling.
- Low maximum drain-source resistance of 33 milliohms for efficient conduction.
- Capable of dissipating up to 150 W power with high thermal limits.
- Operates within a temperature range of -65°C to 175°C for reliable performance.
- 3-pin through-hole mount design in industry standard TO-220 package.
- Typical gate charge of 46 nC at specified gate voltage improves switching efficiency.
Product Description
STMicroelectronics STP40NF10L is a high-performance N-Channel STripFET MOSFET designed for efficient power management in industrial and electronic applications. This enhancement mode transistor supports a maximum continuous drain current of 40 A and withstands drain-source voltages up to 100 V, making it ideal for power switching and amplification scenarios.
Packaged in a robust 3-pin TO-220 format, it offers through-hole mounting for secure installation on printed circuit boards. The device features a low on-resistance of 33 milliohms, enabling minimal power losses and improved energy efficiency. Its maximum power dissipation capacity of 150 W ensures operation under demanding thermal conditions.
The transistor maintains operational stability across a broad temperature range from -65°C to 175°C, suited for harsh industrial environments. Additionally, its gate charge and gate-source voltage ratings provide reliable control characteristics, optimized for switching applications.
Its compact physical dimensions of 10.4 mm length, 4.6 mm width, and 9.15 mm height allow for versatile design integration. Common use cases include power supply regulation, motor drives, and general electronic component design in consumer and industrial electronics.
Enhancement mode N-Channel MOSFET with 40 A current rating. Maximum drain-source voltage of 100 V for robust performance. Low Rds(on) enables efficient power switching. High power dissipation rating supports demanding applications.
Wide operating temperature range for industrial reliability. Standard TO-220 package with 3 pins for easy mounting. Optimized gate charge and voltage for switching efficiency. Compact dimensions facilitate PCB integration.
This STMicroelectronics MOSFET is well-suited for applications in power electronics, automotive electronics, industrial automation, and consumer electronic device manufacturing. Explore our extensive range of semiconductor products for comprehensive power management solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the STMicroelectronics STripFET N-Channel MOSFET is 40 A.
This model has a maximum drain-source voltage rating of 100 V.
The maximum drain-source resistance (Rds(on)) is 33 milliohms, which enables efficient power conduction.
It can dissipate up to 150 W of power, making it suitable for demanding applications.
The operating temperature range is from -65°C to 175°C, ensuring reliable performance in harsh environments.
The STP40NF10L is packaged in a standard TO-220 format, which allows for through-hole mounting.
The dimensions of this model are 10.4 mm in length, 4.6 mm in width, and 9.15 mm in height.
The typical gate charge at the specified gate-source voltage is 46 nC, which improves switching efficiency.
The maximum gate-source voltage rating for this model is -17 V to +17 V.
It supports through-hole mounting, making it easy to install on printed circuit boards.
This MOSFET is suitable for power supply regulation, motor drives, and general electronic component design in both consumer and industrial electronics.
The STP40NF10L features an N-channel configuration, which is typical for enhancement mode MOSFETs.
