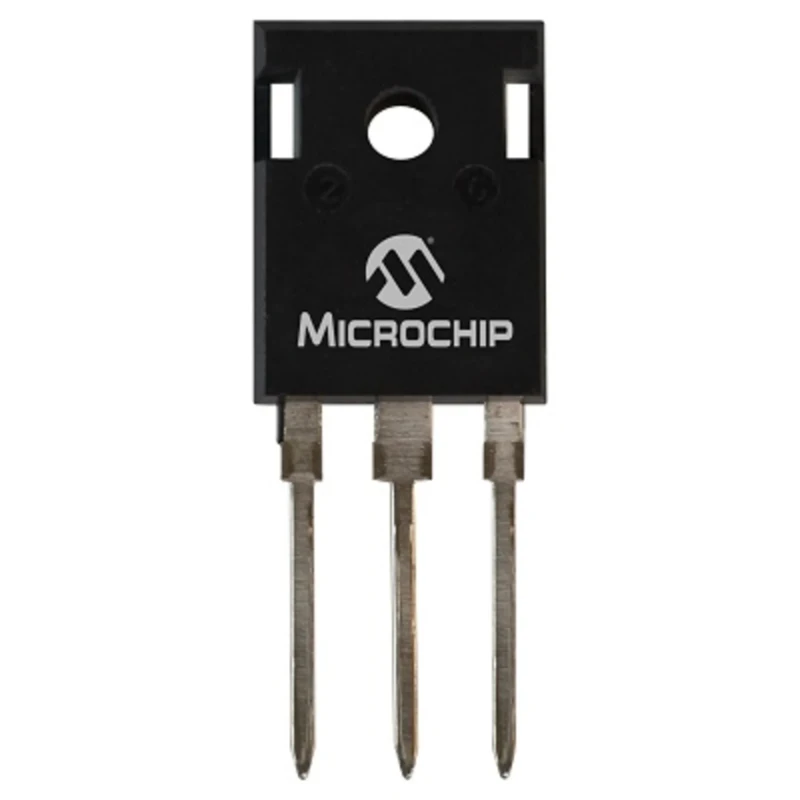

Microchip N-Channel MOSFET 12 V, 140 A, TO-247 Package MSC025SMA120B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC025SMA120B |
| Mount Type | Through Hole |
| Series | MSC025SMA120B |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 140A |
| Maximum Drain Source Voltage Vds | 12V |
| Maximum Drain Source Resistance Rds | 8Ω |
| Maximum Power Dissipation Pd | 1.6W |
| Typical Gate Charge Qg @ Vgs | 232nC |
| Maximum Gate Source Voltage Vgs | 2V |
| Forward Voltage Vf | 1.8V |
Key Features
- The device features low drain-source resistance, ensuring efficient conduction.
- It supports a wide operating temperature range from -55°C to 175°C for robust performance.
- The MOSFET provides fast switching and low gate charge for high-speed applications.
- It includes a stable body diode and is compliant with RoHS standards.
- Designed for through-hole mounting, the package enhances heat dissipation for power applications.
- The maximum power dissipation is rated at 1.6 W, suitable for controlled thermal environments.
Product Description
Microchip MSC025SMA120B is an N-Channel MOSFET with a maximum continuous drain current of 140 A and a maximum drain-source voltage of 12 V packaged in a TO-247 format. It is designed for high-performance power applications requiring efficient switching with low losses.
The MOSFET operates reliably within a temperature range from -55°C to 175°C, benefiting from low internal gate resistance that enables fast switching speeds. It features a forward voltage of 1.8 V and a typical gate charge of 232 nC at a gate-source voltage of 2 V, making it suitable for demanding power management circuits.
With a maximum drain-source resistance of 8 Ω, this device ensures minimal conduction losses, improving overall system efficiency. Its through-hole mount type allows effective heat dissipation, extending device longevity in industrial environments.
The robust body diode provides stable operation and superior avalanche ruggedness, enhancing reliability under fluctuating load conditions. The MOSFET complies with RoHS directives, reflecting environmentally responsible manufacturing.
Low capacitances and low gate charge support fast switching. Stable operation at high junction temperature up to 175 °C. Reliable body diode and superior avalanche ruggedness. RoHS compliant ensuring environmental safety.
Compact TO-247 package for effective heat management. Ideal for applications in power management, industrial automation, and electronic component design, the Microchip MSC025SMA120B MOSFET delivers high performance and durability.
Explore more MOSFETs and discrete semiconductor components on EnvMart for comprehensive electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the MSC025SMA120B is 140 A.
This MOSFET has a maximum drain-source voltage of 12 V.
It operates reliably within a temperature range from -55°C to 175°C.
The MSC025SMA120B is packaged in a TO-247 format.
The maximum power dissipation is rated at 1.6 W.
The typical gate charge at a gate-source voltage of 2 V is 232 nC.
The maximum gate-source voltage is 2 V.
This model is designed for through-hole mounting.
The maximum drain-source resistance is 8 Ω.
Yes, it complies with RoHS standards, reflecting environmentally responsible manufacturing.
It is ideal for applications in power management, industrial automation, and electronic component design.
It features low drain-source resistance, fast switching speeds, and a stable body diode for improved reliability under fluctuating load conditions.
