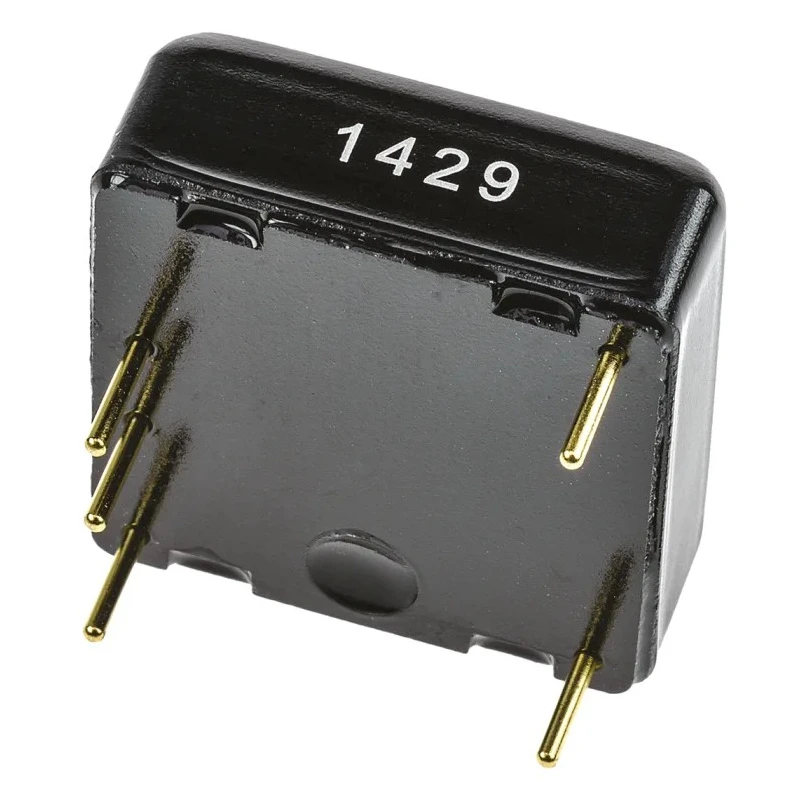

TRACOPOWER 10 W Regulated Isolated DC/DC Converter, 12V DC Output, 830 mA, 9V-36V DC Input, PCB Mount THL 10-2412WI

TRACOPOWER THL 10-2412WI is a compact and highly reliable 10W regulated isolated DC/DC converter designed for industrial electronics, instrumentation, and communication equipment. This converter delivers a fixed 12V DC output at a maximum current of 830 mA, supported by a wide input voltage range of 9V to 36V DC, accommodating various power supply scenarios.

The device features a shielded metal case with an isolated baseplate, providing robust electromagnetic interference (EMI) protection and improved heat dissipation. Its PCB mount design with dimensions of 25.4 mm length and 10.2 mm depth allows easy integration into compact PCB layouts.

With a high efficiency rating of 86%, the THL 10-2412WI minimizes power loss and heat generation, making it suitable for continuous operation in industrial settings. It incorporates protection mechanisms including short circuit and overvoltage protection to enhance system safety.

The converter meets industrial standards such as EMC compliance to EN 55022 class A and FCC part 15 level A without the need for external components. Its MTBF is rated at 300,000 hours following MIL-HDBK-217F (25°C), ensuring long operational life.

This product supports an operating temperature range of -40°C to 85°C, making it fit for use in harsh environmental conditions. An isolation voltage of 1.5 kV DC ensures safety by electrically separating input and output circuits.

Regulated fixed 12V DC output with 830 mA maximum current. Wide ultrawide input voltage range of 9V to 36V DC (4:1 ratio). Shielded metal case with isolated baseplate for EMI protection. Compact 1 inch by 1 inch package with industrial-standard pinout and PCB mount.

Short circuit and overvoltage protection included. Compliance with EN 55022 Class A and FCC part 15 standards. High efficiency at 86% for energy-saving operation. MTBF of 300,000 hours ensuring product reliability. Operating temperature from -40°C to 85°C suitable for industrial applications.

1.5 kV DC isolation voltage for electrical safety.

This TRACOPOWER DC/DC Converter is an ideal solution for powering instrumentation, communication devices, and distributed power systems in industrial electronics and laboratory equipment. It balances compact size, robustness, and energy efficiency to meet demanding requirements.
