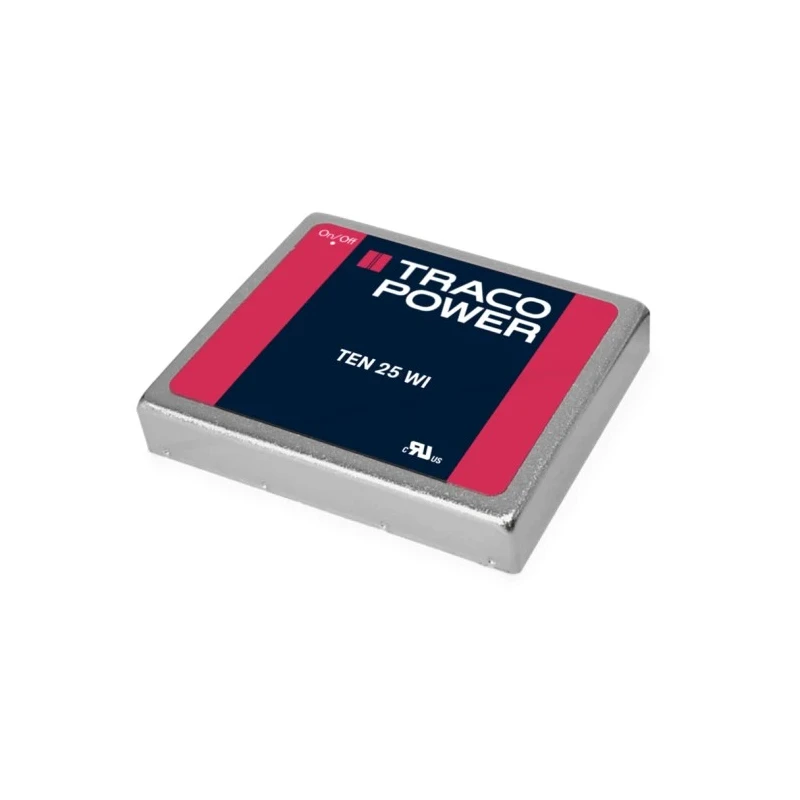

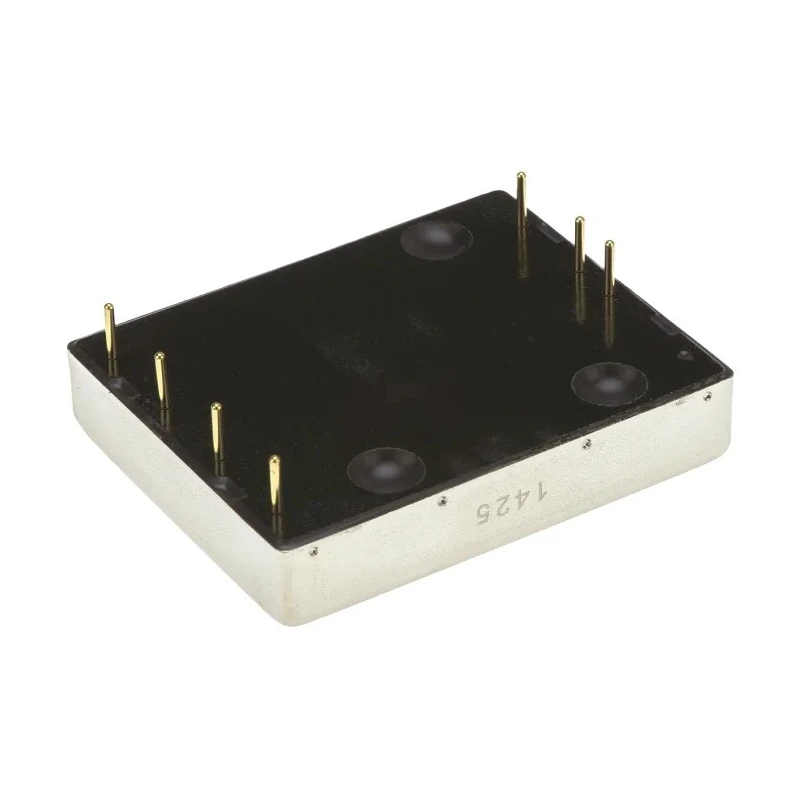

TRACOPOWER DC/DC Converter 12V DC 1.25A 30W Through Hole TEN 25-2422WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50mm |
| Model | TEN 25-2422WI |
| Depth | 9.3mm |
| Mount Type | Through Hole |
| Series | TEN 25WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 550000h |
| Number of outputs | 2 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 40V dc |
| Minimum Input Voltage | 10V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-5922Brand: TRACOPOWERManufacturers Part No.: TEN 25-2422WI |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 1250mA |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Wide input voltage range of 10V to 40V DC supports various applications.
- Dual output with ±12V DC voltage provides versatility in power supply needs.
- High efficiency at 89% minimizes power loss and heat generation.
- Operating temperature range from -40°C to 85°C ensures reliable performance in harsh environments.
- 1500 Vdc isolation voltage offers excellent safety and noise immunity.
- Compact size with 50mm length and 9.3mm depth suitable for PCB mounting.
- Continuous short circuit and over-temperature protection enhances durability.
- RoHS compliant design supports environmental and regulatory standards.
Product Description
TRACOPOWER TEN 25-2422WI DC/DC Converter is a high-performance, regulated isolated converter providing a dual output of ±12V DC with 1.25A output current and 30W maximum power. Designed with a wide 4:1 input voltage range of 10V to 40V DC, it is ideal for industrial, communication, battery-operated equipment, and distributed power systems.
This converter features a through hole mount type, allowing easy integration into printed circuit boards and other applications requiring space-efficient power conversion with robust mounting. The package supports continuous short circuit and over-temperature protection to safeguard connected electronics, and it provides an isolation voltage of 1.5kV DC for enhanced safety and electrical noise isolation.
With an efficiency of 89%, this device minimizes energy loss and thermal stress, enabling operation within an ambient temperature range of -40°C to 85°C. The converter meets key standards and is fully RoHS compliant, supporting environmental sustainability. Its compact form factor, with dimensions of 50mm length and 9.3mm depth, is suitable for various industrial and commercial electronics applications.
The product comes from Taiwan, Province of China, and provides a Mean Time Between Failures (MTBF) rating of 550,000 hours, indicating high reliability. It includes multiple pins (7 pins) for secure electrical connections and features remote on/off capability along with adjustable output voltage within ±10% range.
Wide 4:1 input voltage range ensures compatibility with varying power sources. Dual output voltage ±12V DC supports multiple device requirements. High isolation voltage of 1.5kV DC for safety and noise immunity. Through hole mount type for stable circuit board integration.
Continuous short circuit and over-temperature protection enhances safety. Compact dimensions of 50mm x 9.3mm for space-constrained applications. Operating temperature range from -40 to 85 degrees Celsius permits use in harsh environments.
Compliance with RoHS directive supports environmental regulations. Typical applications in industrial electronics, communication systems, and battery-powered devices. Reliable performance backed by MTBF of 550,000 hours.
Explore more TRACOPOWER models and DC/DC Converters in our Electronics & Electricals category on EnvMart for high-quality power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TEN 25-2422WI has a wide input voltage range of 10V to 40V DC, allowing it to support various applications.
This DC/DC converter provides a maximum output power of 30W, suitable for various power supply needs.
It features dual outputs of ±12V DC, with an output current of 1.25A for each output.
The efficiency of the TRACOPOWER TEN 25-2422WI is rated at 89%, minimizing power loss and heat generation.
The converter has a compact size with a length of 50mm and a depth of 9.3mm, making it suitable for PCB mounting.
It offers an isolation voltage of 1.5kV DC, providing excellent safety and noise immunity.
The TRACOPOWER TEN 25-2422WI operates within a temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.
This DC/DC converter includes 7 pins for secure electrical connections.
It utilizes a through hole mount type, allowing for easy integration into printed circuit boards.
It includes continuous short circuit and over-temperature protection to enhance safety and durability.
The MTBF for the TRACOPOWER TEN 25-2422WI is rated at 550,000 hours, indicating high reliability.
Yes, the TRACOPOWER TEN 25-2422WI is fully RoHS compliant, supporting environmental and regulatory standards.
