Lorlin CK 12 Position Rotary Switch 1A 24V AC/DC PCB Terminal IP65 CKF1044

Free Delivery in India | Lowest Global Shipping Charges

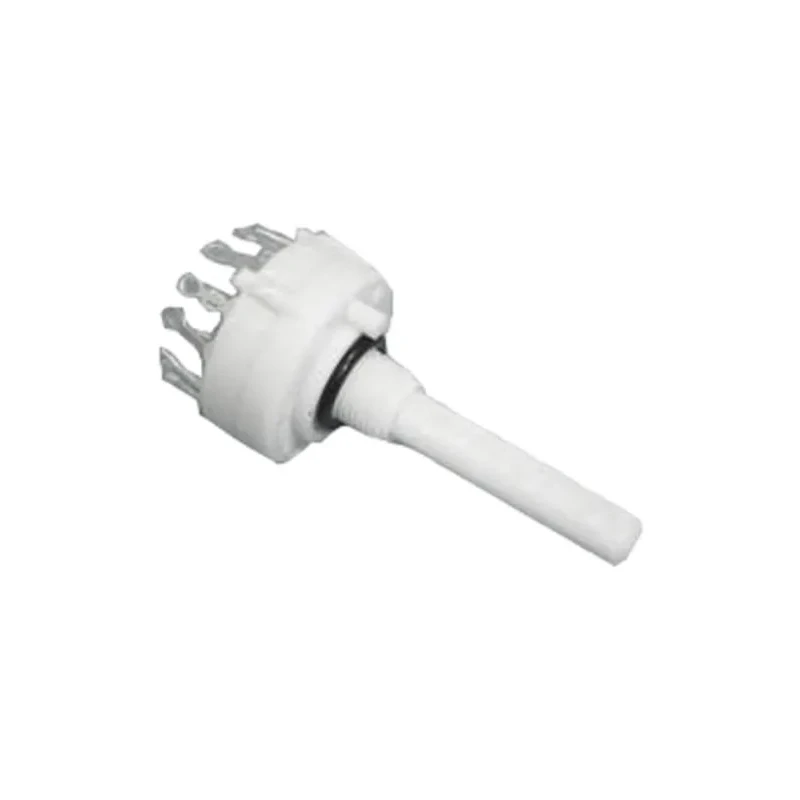

Lorlin CK 12 Position Rotary Switch 1A 24V AC/DC PCB Terminal IP65 CKF1044

Name: Lorlin CK 12 Position Rotary Switch 1A 24V AC/DC PCB Terminal IP65 CKF1044
Brand: Lorlin
SKU: 386148
Price: 20.22 USD
Availability: InStock



Category Rotary Switches Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Diameter	27.5mm
Brand	Lorlin
Model	CKF1044
Depth	27.5mm
IP Rating	IP65
Width	26.2mm
Mount Type	PCB
Housing Material	Polyamide
Series	CK
Maximum Operating Temperature	85°C
Number of Positions	12
Minimum Operating Temperature	-30°C
Terminal type	PCB Terminal
Maximum dc Voltage	24V dc
Number of Poles	1
Standards/Approvals	RoHS
Switch Operation	Rotary
Actuator Colour	Black
Switch Contact Current	1A
Mechanical Life	10000Cycles
Maximum AC Voltage	24V ac
Angle of Throw	90 °

Key Features

The switch supports 12 distinct positions offering flexible switching options.
Operates reliably at a maximum voltage of 24V AC/DC.
Constructed with a polyamide housing and features a black actuator.
Offers a dampened indexing mechanism with reduced shaft play for smooth operation.
Front panel sealed to IP65 rating for protection against dust and moisture.
Mechanical life rated at 10,000 cycles ensuring long-term durability.
Mount type is suitable for PCB terminals with solder or PCB terminal options.
Operates within a temperature range of -30°C to 85°C.

Product Description

Lorlin CKF1044 is a high-quality 12 Position Rotary Switch rated for a contact current of 1A and designed for PCB mounting with an IP65 front panel seal rating. This rotary switch belongs to the CKF series which provides enhanced protection with its sealed construction and dampened indexing for a smooth and precise rotary operation.

Constructed using durable polyamide housing material and a black actuator, the switch maintains reliable performance over wide operating temperatures from -30°C to 85°C. Featuring a 27.5 mm diameter and 26.2 mm width, it is compact and suitable for various PCB mounting applications where space saving is critical.

The CKF1044 supports up to 12 distinct positions with a single pole operation and a 90° angle of throw. Its mechanical life is rated at 10,000 cycles, making it reliable for repeated switching tasks in industrial, laboratory, automation, and control systems.

This switch is RoHS compliant and built to withstand challenging environments with IP65 dust and moisture protection, ensuring longevity and robustness in commercial and industrial settings. Terminal type options include PCB terminals with solder or printed circuit board mounting compatibility.

The switch supports 12 positions for versatile signal routing. Contact current is rated at 1A for reliable low-power switching. Operating voltages up to 24V AC or DC accommodate common control circuits. Enclosure and front panel sealing conform to IP65 standards for environmental protection.

Dampened indexing reduces axial play and mechanical wear for precise operation. Temperature tolerance suitable from -30°C up to 85°C allows diverse usage scenarios. Compact dimensions with a diameter and depth of approximately 27.5 mm fit standard panel cutouts.

This product is manufactured in the United Kingdom, ensuring high manufacturing standards and consistent quality. Ideal for use in electronic switch assemblies, instrumentation, industrial automation controls, and other signal switching applications.

Explore further Rotary Switches and related components in the Electronics & Electricals category at EnvMart for comprehensive industrial-grade solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating voltage for the Lorlin CKF1044 rotary switch is 24V AC or DC.

This model supports 12 distinct positions for flexible switching options.

The contact current rating of the CKF1044 is 1A.

The switch has an IP65 rating, providing protection against dust and moisture.

The switch has a diameter of 27.5 mm and a width of 26.2 mm.

It operates within a temperature range of -30°C to 85°C.

This switch supports PCB terminal mounting options.

The mechanical life of the CKF1044 is rated at 10,000 cycles.

The switch is constructed with a polyamide housing and features a black actuator.

Yes, the CKF1044 is RoHS compliant.

The angle of throw for this model is 90 degrees.

This rotary switch is suitable for use in electronic switch assemblies, instrumentation, industrial automation controls, and other signal switching applications.
