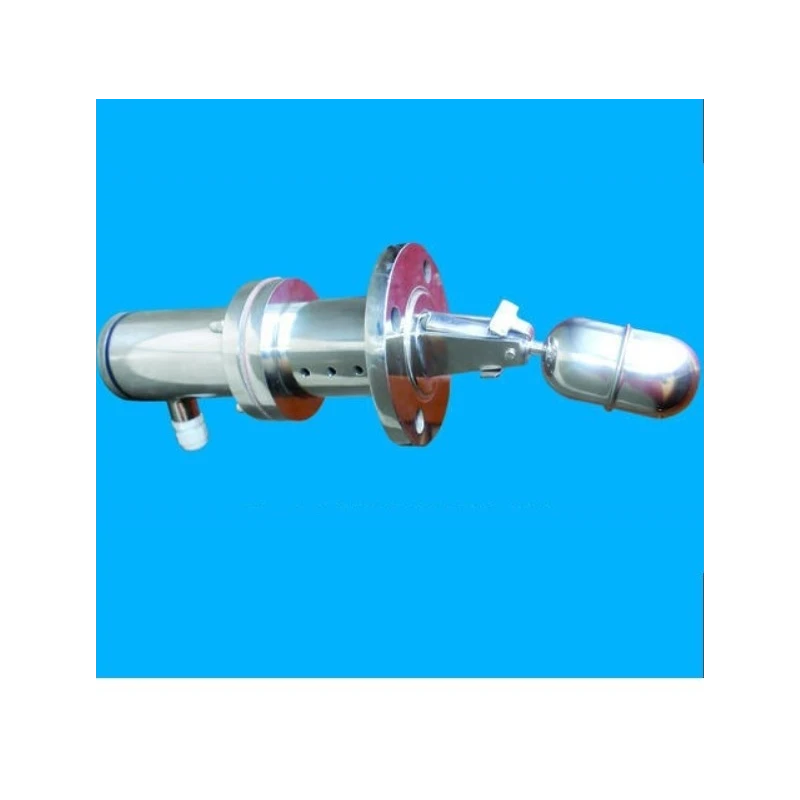

Magnetic Level Switch MLS-16-F92-HT
Specifications
| Brand | Mahalaxmi Instruments |
|---|---|
| MOC | SS 316 |
| Model | MLS-16-F92-HT |
| Enclosure | SS 304 having neoprene grommet for cable entry. |
| Process connection | 120 mm Round flange with 4 bolt holes of 14 mm diameter on 92 mm PCD. |
| Float | 50 mm Dia x 85 mm long - SS316 |
| Maximum Working Pressure | 10 kg/cm2 |
| Maximum Working Temperature | 350C |
| Switch Rating | 5 AMPS at 230 VAC |
| Maximum Switching Voltage (V) | 230 VAC |
| Type of Switch | 1 No. Change over Micro Switch |
| Specific Gravity | Down to 0.75 |
| Differential Between Make Break | 10mm| +-2 mm |
Key Features
- Bulk Quantities Available
Product Description
MLS-16-F92-HT Magnetic Level SwitchWe are one of the leading manufacturer of MLS-16-F92-HT Magnetic Level Switch. We obligated to meet the quality standard as per the customer demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working temperature for this model is 350°C.
The switch rating is 5 AMPS at 230 VAC.
It uses a 1 No. changeover micro switch.
The main body is made of SS 304, while the float is made of SS 316.
It features a 120 mm round flange with 4 bolt holes of 14 mm diameter on a 92 mm PCD.
The maximum working pressure is 10 kg/cm².
It can measure specific gravities down to 0.75.
The differential between make and break is 10 mm with a tolerance of ±2 mm.
The float has a diameter of 50 mm and a length of 85 mm.
The enclosure has a neoprene grommet for cable entry.
The maximum switching voltage is 230 VAC.
This model is manufactured by Mahalaxmi Instruments.
