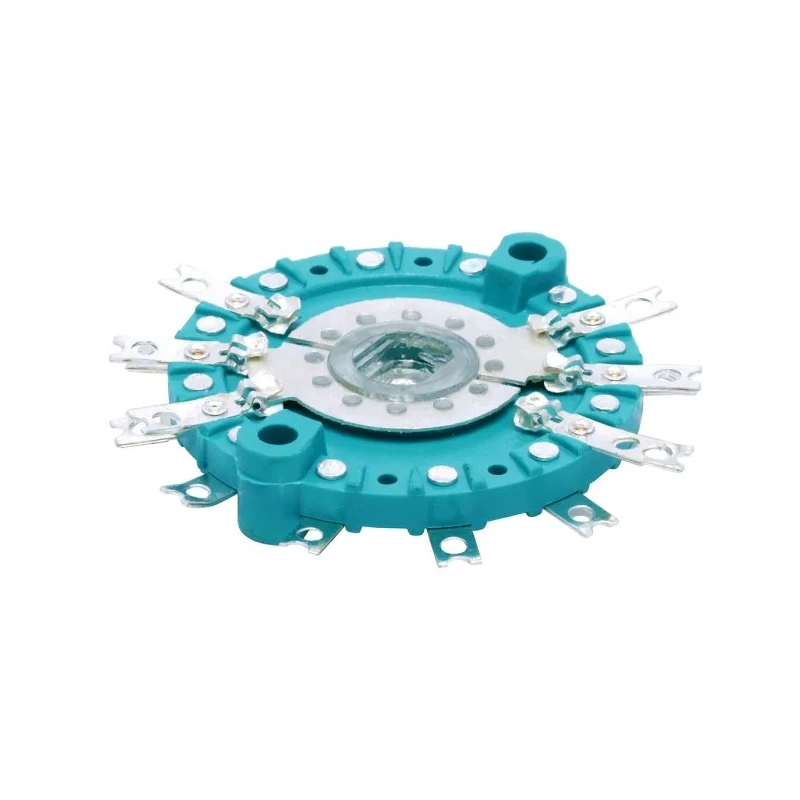

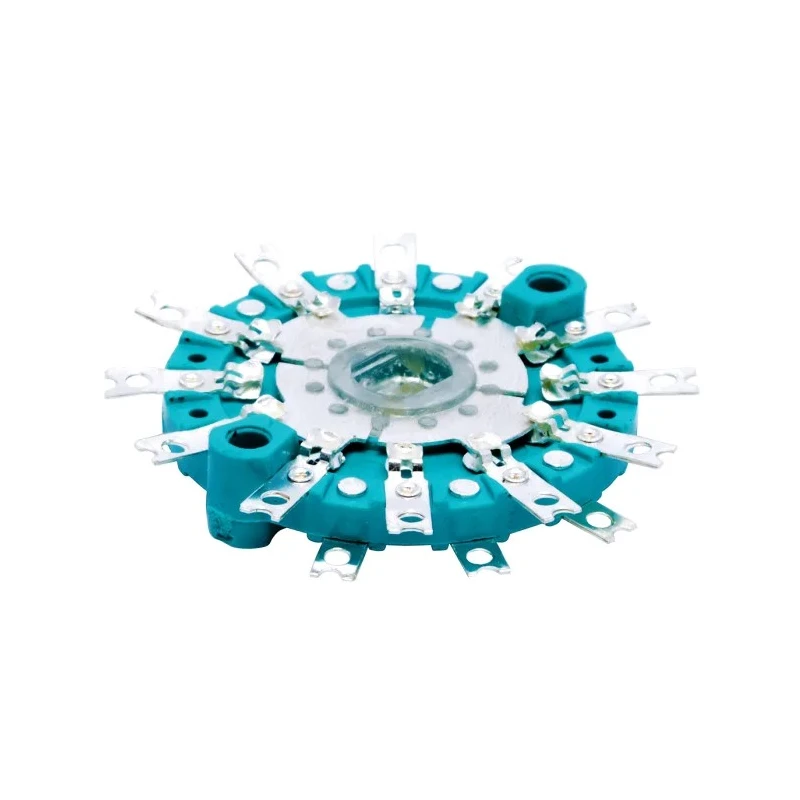

NSF Rotary Switch Wafer 32mm Diameter 2 Positions 6 Contacts 300V AC/DC 454483MK

NSF 454483MK Rotary Switch Wafer is a high-quality rotary switch wafer designed for industrial and electronic applications requiring reliable and precise switching. With a 32mm diameter, this component offers 2 positions and 6 contacts, supporting both AC and DC voltages up to 300V, making it ideal for use in automated electrical systems, control panels, and switching devices.

The switch wafer features a robust construction using glass-fibre loaded diallyl phthalate for the stators and polycarbonate for the rotors, combined with silver-plated contacts to ensure excellent electrical conductivity and durability. Its double-spring detent mechanism guarantees stable and repeatable positioning with 30° indexing and adjustable end stops, providing precise operational control.

This model has a life expectancy of over 100,000 detent operations, suitable for long-term industrial usage. The product supports assembly of up to 10 standard wafers, though capacity reduces with the addition of spacers or screens. The shaft diameter is 6 mm with M10 x 0.75 mounting bushes, and the overall length measures 190 mm, with a front shaft length of 40 mm.

Optional accessories are available to customize the switch wafer for specific requirements. It complies with RoHS standards and is manufactured in the United Kingdom, assuring adherence to environmental and quality regulations.

This rotary switch wafer is widely used in laboratory instrumentation, industrial automation, electrical control systems, and other electronic equipment that demands reliable multi-position switching.

Features a standard 32mm diameter for compatibility. Provides 2 selectable positions for switching. Includes 6 electrical contacts for reliable conduction. Operates safely at 300 volts AC and DC. Constructed with glass-fibre loaded diallyl phthalate stators and polycarbonate rotors.

Silver-plated contacts ensure excellent conductivity and durability. Equipped with double-spring detent mechanism for precise indexing. Offers a life expectancy exceeding 100,000 detent operations. Includes adjustable end stops with 30° indexing increments.

Made in the United Kingdom under RoHS compliance standards. Explore more Rotary Switch wafers and compatible accessories in the Electronics & Electricals category on EnvMart for your industrial and automation projects.
