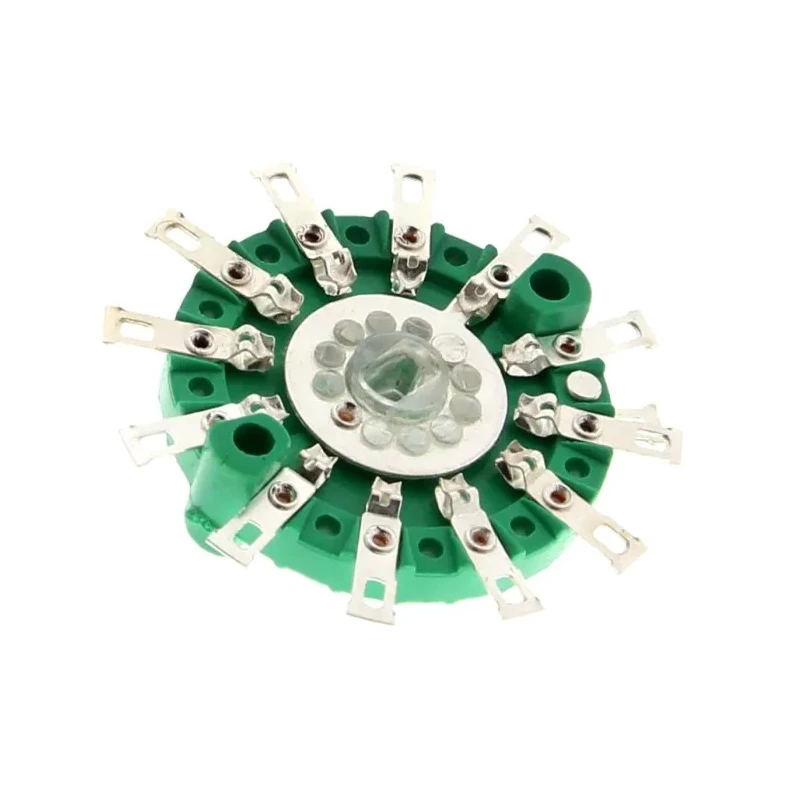

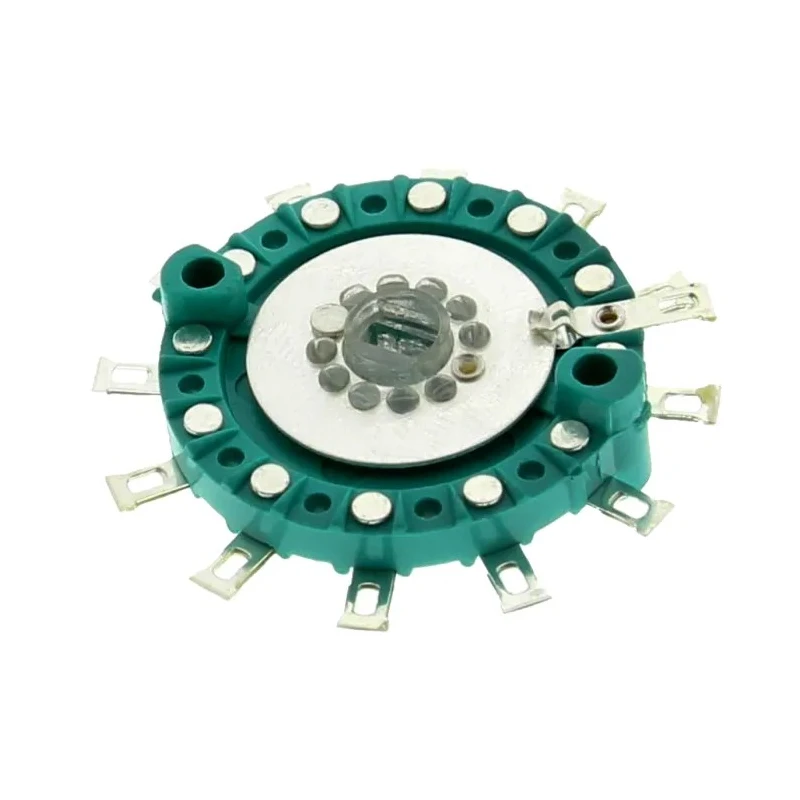

NSF Rotary Switch Wafer 25.4mm Diameter 12 Positions 1 Contact 300V AC/DC 457841/1/MA

Free Delivery in India | Lowest Global Shipping Charges

NSF Rotary Switch Wafer 25.4mm Diameter 12 Positions 1 Contact 300V AC/DC 457841/1/MA



Category Rotary Switches Brand NSF Condition New

Specifications

Country of Origin	United Kingdom
Voltage	300V ac/dc
Display	screen
Diameter	25.4mm
Brand	NSF
Model	457841/1/MA
Number of Positions	12
Standards/Approvals	RoHS
Number of Contacts	1
WAFER 1 POLE 12 WAYBrand	NEUTRAL
NSF MU-MA, 12 Position SP12T Rotary Switch, 150mA, SolderBrand	NSF

Key Features

Constructed with glass-fibre loaded diallyl phthalate stators and polycarbonate rotors.
Silver-plated contacts ensure reliable electrical performance.
Features double-spring detent mechanism for precise 30° indexing and adjustable end stops.
Compact size with 6mm diameter shaft and M10 x 0.75 mounting bushes.
Designed for miniature wafer assemblies, supporting up to 8 wafers.
Life expectancy exceeds 100,000 detent operations for durability.
Meets RoHS standards and originates from the United Kingdom.

Product Description

The NSF 457841/1/MA rotary switch wafer is engineered for industrial and electrical automation applications requiring precise position switching at 300V AC/DC voltage levels. With a diameter of 25.4mm, this wafer incorporates a single contact across 12 positions, making it suitable for compact rotary switch assemblies.

Constructed from robust glass-fibre loaded diallyl phthalate stators and polycarbonate rotors, the wafer ensures electrical insulation and mechanical stability in demanding environments.

Silver-plated contacts provide excellent conductivity and resistance to corrosion. The miniature design includes a 6mm diameter shaft and M10 x 0.75 mounting bushes, facilitating easy installation and integration.

Equipped with a double-spring detent mechanism, the rotary switch wafer offers precise 30° indexing with adjustable end stops, contributing to accurate position control and operator feedback. The life expectancy surpasses 100,000 detent operations, highlighting its reliability in repeated use scenarios.

This wafer supports up to 8 miniature wafers in one assembly, although the capacity reduces if spacers or screens are employed. Optional accessories are available for customization according to specific requirements.

Compliant with RoHS environmental standards, the NSF rotary switch wafer is manufactured in the United Kingdom, suitable for use in industrial, laboratory, electronics manufacturing, and automation system applications.

Constructed with glass-fibre loaded diallyl phthalate stators and polycarbonate rotors. Silver-plated contacts offer enhanced conductivity. Double-spring detent mechanism with precise 30° indexing. Supports miniature wafer assemblies with up to 8 wafers.

Durability assured with over 100,000 detent life cycles. Mounting with 6mm shaft diameter and M10 x 0.75 bushes. RoHS compliant and UK manufactured. Explore a wide range of rotary switch wafers and components at EnvMart for your electrical and automation needs.
