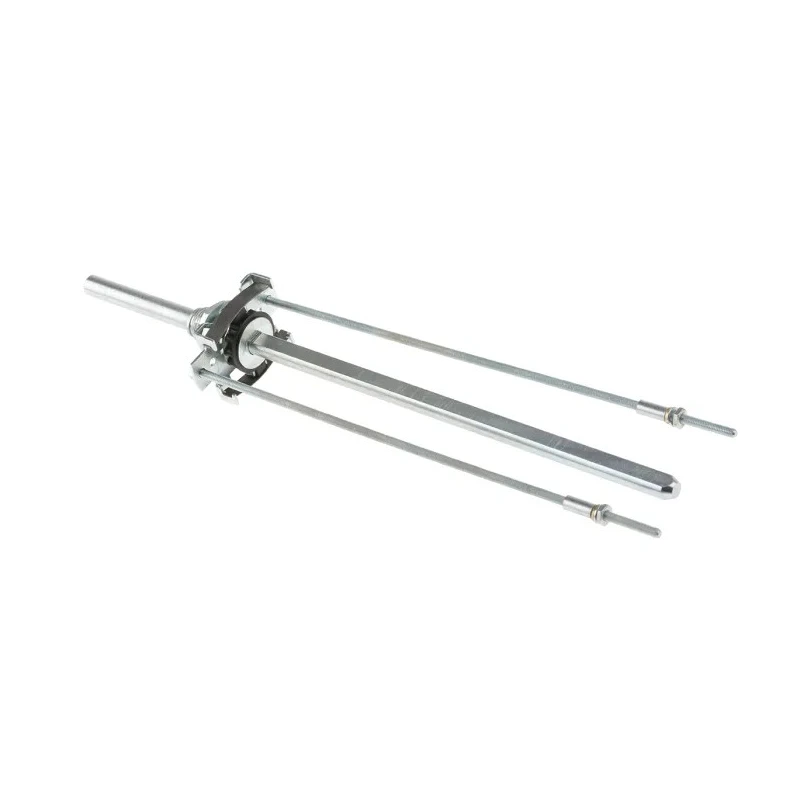

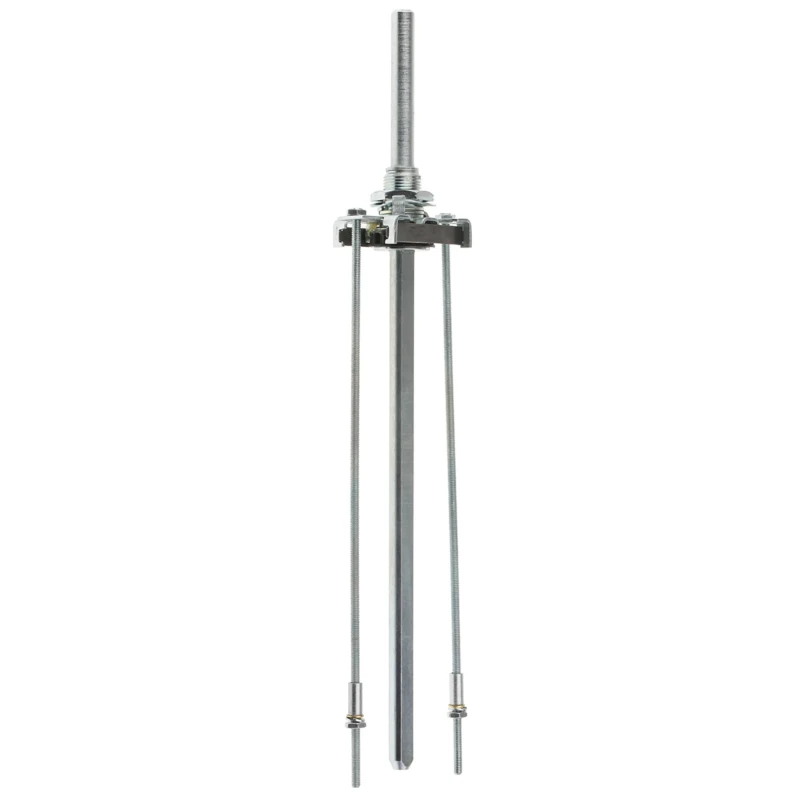

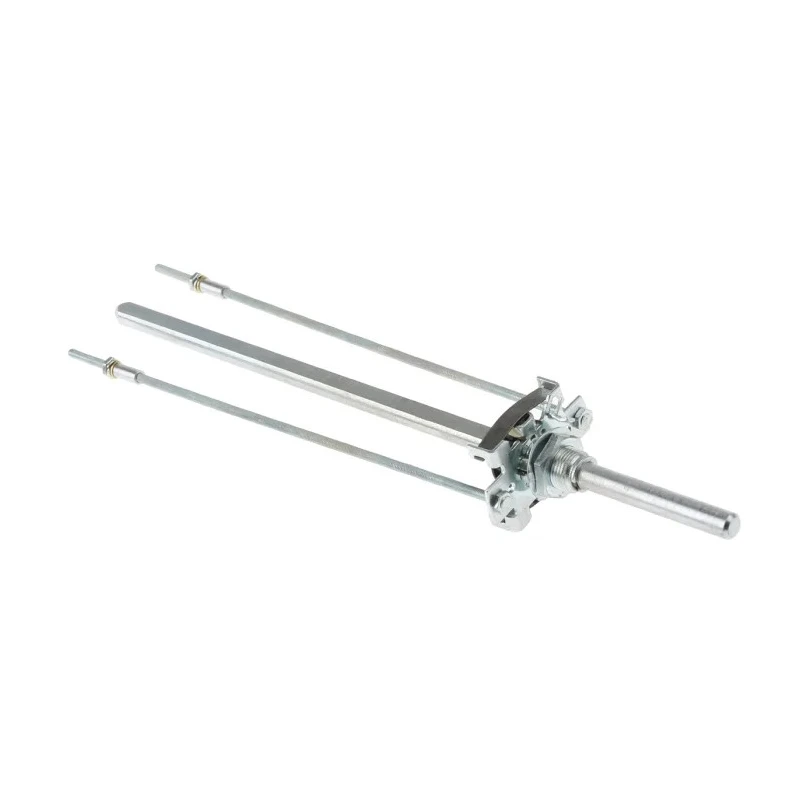

NSF Rotary Switch Shaft Assembly for use with MU-MK Series 0.41mm Shaft Length 12 Positions 30° Angle of MU454488FPA(MK)

The NSF MU454488FPA(MK) Rotary Switch Shaft Assembly for use with MU-MK Series is designed to provide precise, reliable switching solutions in industrial automation and electrical applications. Featuring a shaft length of 0.41mm and a 30° angle of throw, this Rotary Switch Shaft Assembly facilitates 12 distinct positions, allowing for flexible operational settings.

This assembly utilizes double-spring detent mechanisms to guarantee a life expectancy exceeding 100,000 detent operations, ensuring longevity and dependable performance in demanding environments. The standard shaft assembly allows installation of up to 10 standard wafers, though capacities may vary if using spacers or screens. The 6mm diameter shaft paired with M10 x 0.75 mounting bushes offers robust mechanical stability.

Manufactured with precision, including glass-fibre loaded diallyl phthalate stators, polycarbonate rotors, and silver-plated contacts, this product balances mechanical strength with electrical efficiency. It comes in variants featuring break before make (BBM) and make before break (MBB) functionalities, suitable for diverse industrial control requirements.

The overall length is 190mm with a front shaft length of 40mm, facilitating easy integration into existing systems. Optional accessories are available to further customize and optimize the switch assembly according to specific application demands.

Originating from the United Kingdom, this product complies with RoHS standards, underscoring its environmental safety. It is suitable for use in industrial automation, electrical switchgear, manufacturing, and control systems where precise switching is essential.

The assembly is compliant with RoHS standards for environmental safety. Equipped with double-spring detent mechanisms for durability over 100,000 operations. It accommodates up to 10 standard wafers, with adjustable end stops for customization.

The shaft diameter is 6mm with M10 x 0.75 mounting bushes ensuring secure installation. The product is constructed with glass-fibre loaded diallyl phthalate stators and polycarbonate rotors for strength and reliability. Available in break before make and make before break versions for various switching needs.

Engineered to meet industrial and electrical automation requirements. Explore more from NSF and related rotary switch assemblies in the Electronics & Electricals category on EnvMart.
