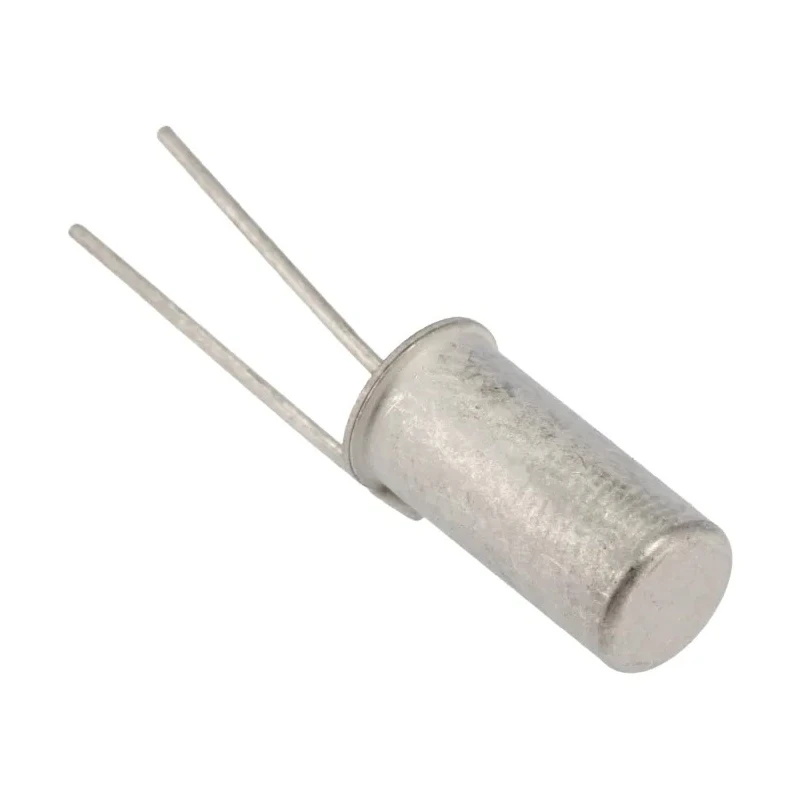

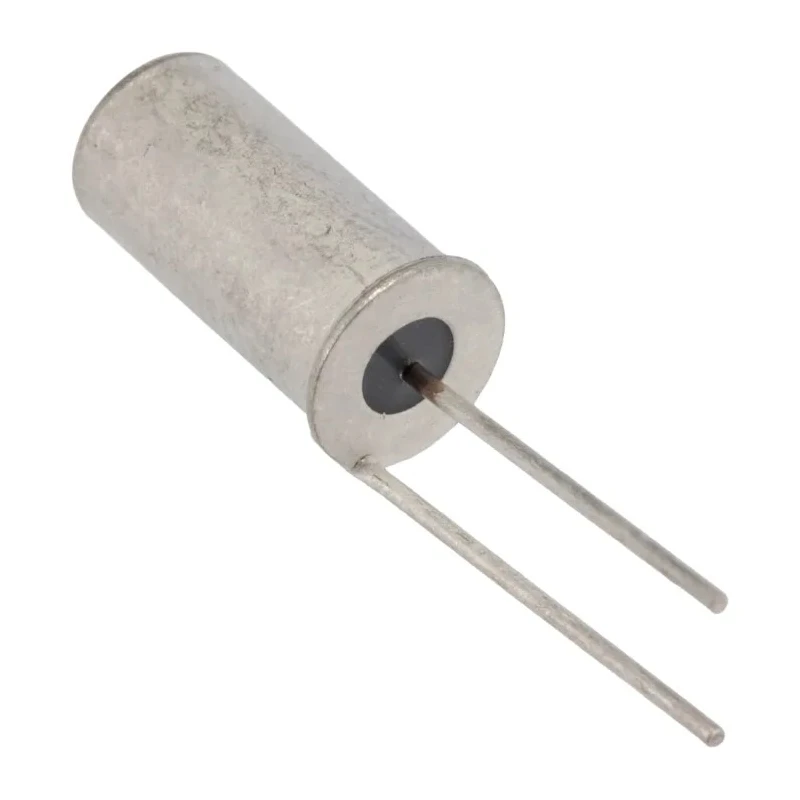

Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V AC CW1306-1

Assemtech CW1306-1 is a 15 ° horizontal tilt switch designed as a motion sensor with a 2-pin configuration capable of handling up to 250 mA current at 60 V AC or DC. This tilt switch is hermetically sealed and filled with inert gas, housed in a tin-plated casing providing excellent resistance to ambient environmental conditions. It functions by changing contact states from open to closed as it detects motion, making it suitable for applications requiring reliable position or motion sensing.

The switch operates efficiently within a wide temperature range of -37°C to 100°C. Its small form factor with a length of 22.1 mm, diameter of 12 mm, and width of 0.47 inches allows it to be integrated into compact electronic assemblies.

Typical industrial applications include automation systems, motion detection in electrical circuits, and limit sensing in control equipment. The device complies with RoHS standards, ensuring it meets stringent environmental and safety regulations. It forms part of the CW1 series, offering compatibility with a range of motion and tilt switch products.

The switch's low contact resistance of 30 ohms guarantees minimal signal loss and high sensitivity. Its manufacturing origin in the United States ensures adherence to quality and performance benchmarks.

Operates at maximum current of 250 mA. Supports AC and DC voltages up to 60 V. Hermetically sealed, tin-plated housing for durability. Contact resistance rated at 30 ohms. Wide operating temperature range from -37°C to 100°C.

Compact size facilitates easy mounting and integration. RoHS certificate confirms environmental compliance. Reliable motion and tilt sensing capabilities. Suitable for industrial, automation, and electrical use cases. Explore more Assemtech Tilt Switches and sensors on EnvMart for solutions tailored to your industrial and automation needs.
