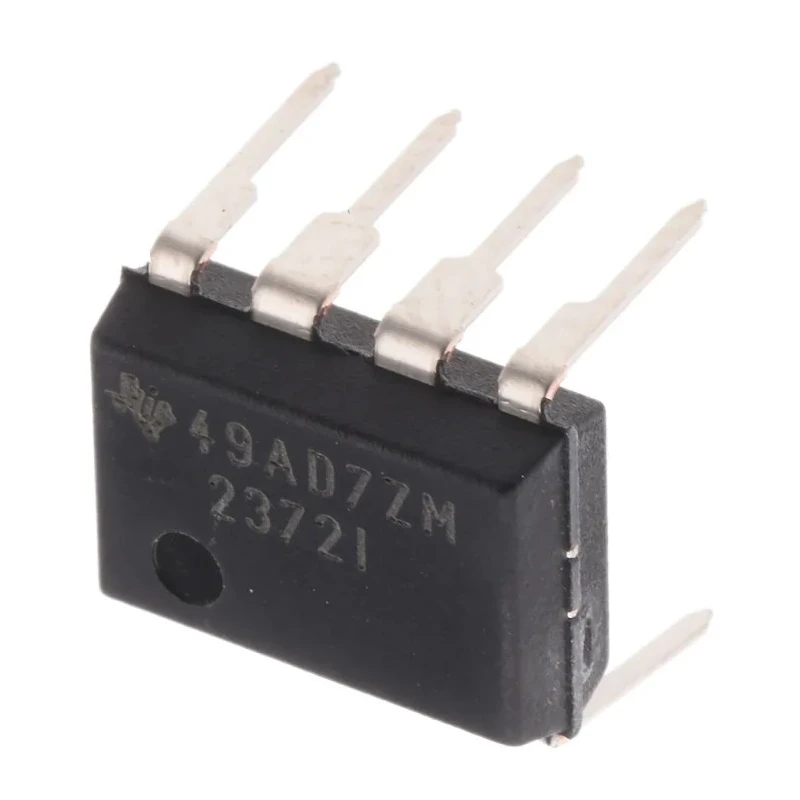

Texas Instruments Operational Amplifier, Low Voltage CMOS, Dual Channel, 3 MHz Gain Bandwidth, 8-Pin 16V PDIP TLV2372IP

Texas Instruments TLV2372IP is a high-performance, low voltage CMOS operational amplifier designed for precision analog signal processing applications. This dual-channel operational amplifier is housed in a standard 8-pin PDIP package, allowing easy integration into through-hole PCB designs.

With a gain bandwidth product of 3 MHz, it suits a wide range of industrial, automotive, and laboratory applications where moderate frequency amplification is required. The device operates over a broad supply voltage range from 3 V to 16 V, making it versatile for battery-powered and line-powered systems.

The TLV2372IP features low input bias current (1 nA) and low input offset voltage (6 mV), minimizing signal distortion and improving accuracy in sensitive analog circuits. Its slew rate of 2.4 V/μs enables quick signal transitions, important in control and measurement environments.

Designed to meet the AEC-Q100 automotive standard, it ensures high reliability in automotive and industrial environments. Its operating temperature range spans from -40°C to 125°C, assuring stable operation under harsh conditions.

The compact physical footprint with length 9.81 mm, width 6.35 mm, and height 4.57 mm optimizes board space while providing robust performance. Low voltage CMOS technology for enhanced precision and efficiency. Dual channel operation in a single 8-pin PDIP package.

3 MHz gain bandwidth product for balanced speed and accuracy. Wide supply voltage flexibility from 3 V to 16 V. Very low input bias current of 1 nA. Input offset voltage of 6 mV supports precision applications. Fast slew rate of 2.4 V/μs ensures rapid signal response.

RoHS compliant for environmentally safe usage. Automotive standard compliant (AEC-Q100) ensuring industrial robustness. Operating temperature range -40°C to 125°C supports demanding environments. Compact package dimensions suitable for through-hole mounting.

This operational amplifier is optimized for various industrial, automotive, laboratory, and electronic equipment designs requiring reliable and accurate amplification. Its robust specs and package make it ideal for signal conditioning, sensor interface, and general-purpose analog circuits.
