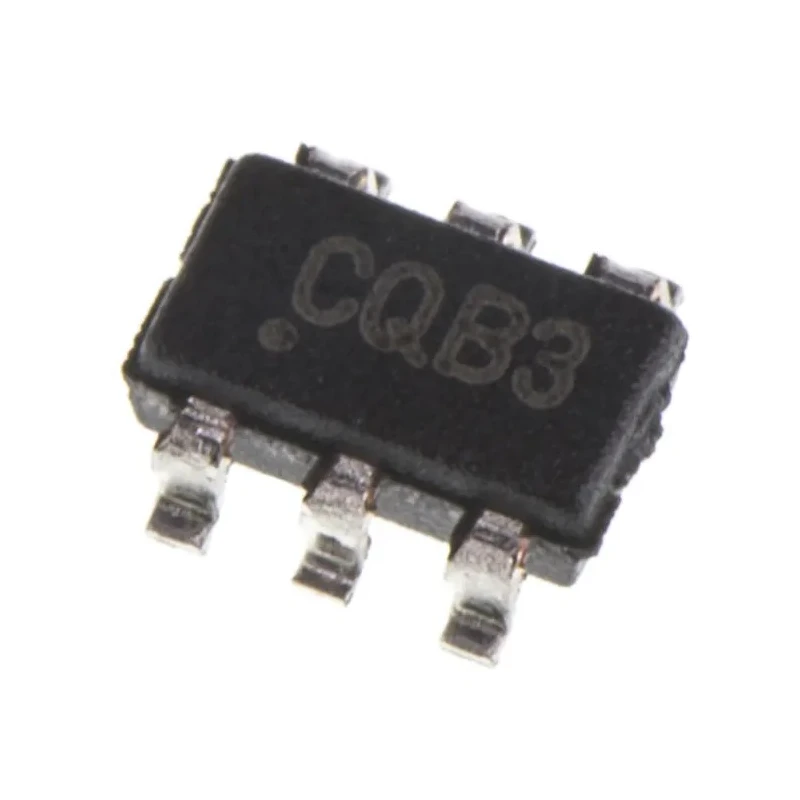

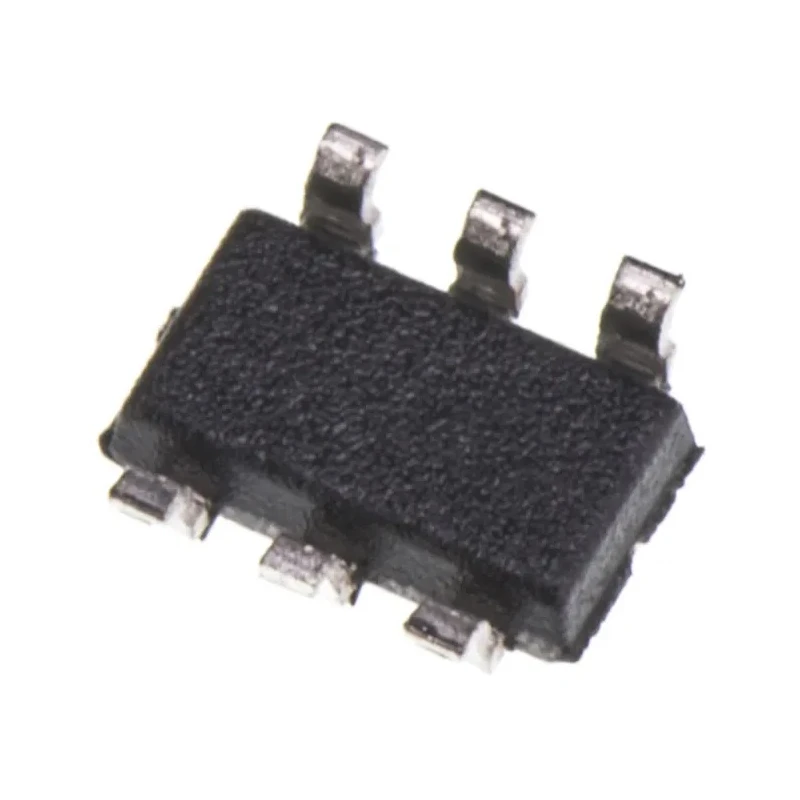

Microchip 16-bit Delta Sigma ADC 0.02 ksps, Serial-I2C Interface, 6-Pin SOT-23 Package MCP3425A0T-E/CH
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.45mm |
| Length | 3.1mm |
| Model | MCP3425A0T-E/CH |
| Mount Type | Surface |
| Sampling rate | 0.02ksps |
| Series | MCP3425 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
| Programable Data rate options are | 15 SPS, 60 SPS or 240 SPS |
Key Features
- This ADC features a Serial-I2C interface for efficient communication.
- It supports a single ADC channel designed for voltage input types.
- The device operates over an extended temperature range from -40°C to 85°C.
- It has programmable data rate options including 15, 60, and 240 samples per second.
- The package is surface-mount type SOT-23 with a compact footprint of 3.1mm length and 1.45mm height.
- Maximum supply voltage is 5.5 volts with a minimum supply of 5 volts.
- The ADC series is MCP3425 compliant and meets the automotive standard AEC-Q100.
- Designed for precise and low-speed data conversion in industrial and electronic applications.
Product Description
Microchip MCP3425A0T-E/CH is a high-precision 16-bit Delta Sigma analogue to digital converter (ADC) designed for surface mount applications. The device operates with a sampling rate of 0.02 ksps and communicates via a Serial-I2C interface, ideal for integration into compact electronic circuits requiring accurate voltage sensing.
Housed in a compact 6-pin SOT-23 package, the ADC features a single ADC channel optimized for voltage inputs. Its robust operating temperature range from -40°C to 85°C allows deployment in automotive and industrial environments. The programmable data rate options of 15, 60, and 240 samples per second enable flexible configuration for diverse measurement needs.
The component supports supply voltages from 5 volts up to a maximum of 5.5 volts, ensuring stable operation. Its length of 3.1 mm and height of 1.45 mm contribute to a small form factor, suitable for high-density printed circuit boards.
The MCP3425A0T-E/CH conforms to the automotive standard AEC-Q100, underlining its quality and reliability for automotive-grade designs. Applications include electronic instrumentation, sensor interfaces, industrial automation, and other low-frequency data acquisition systems requiring high resolution and stable data conversion.
This ADC uses Delta Sigma architecture to achieve low noise and high resolution output. Serial-I2C interface enables easy integration with microcontrollers and embedded systems. Surface-mount SOT-23 packaging ensures ease of assembly and space-saving on PCBs.
Operating temperature range suitable for harsh environmental conditions. Programmable data rates to accommodate different measurement scenarios. Automotive standard compliant assuring robustness and reliability. Compact size suitable for modern electronic hardware designs.
Designed for applications in industrial, automotive, and general electronic component usages. Discover and source Microchip Analogue to Digital Converters at EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3425A0T-E/CH features a resolution of 16 bits, allowing for precise data conversion.
The maximum supply voltage for the MCP3425A0T-E/CH is 5.5 volts.
This ADC operates over an extended temperature range from -40°C to 85°C, making it suitable for various environments.
It utilizes a Serial-I2C interface for efficient communication with other devices.
The MCP3425A0T-E/CH offers programmable data rate options of 15, 60, and 240 samples per second.
This model is housed in a surface-mount SOT-23 package, with a length of 3.1 mm and a height of 1.45 mm.
The MCP3425A0T-E/CH supports a single ADC channel optimized for voltage inputs.
This ADC employs Delta Sigma architecture, which contributes to low noise and high resolution output.
Yes, it conforms to the automotive standard AEC-Q100, ensuring its reliability for automotive applications.
The device is designed for voltage input types, making it suitable for various sensing applications.
The minimum supply voltage for this model is 5 volts.
It is designed for applications in electronic instrumentation, sensor interfaces, industrial automation, and low-frequency data acquisition systems.
