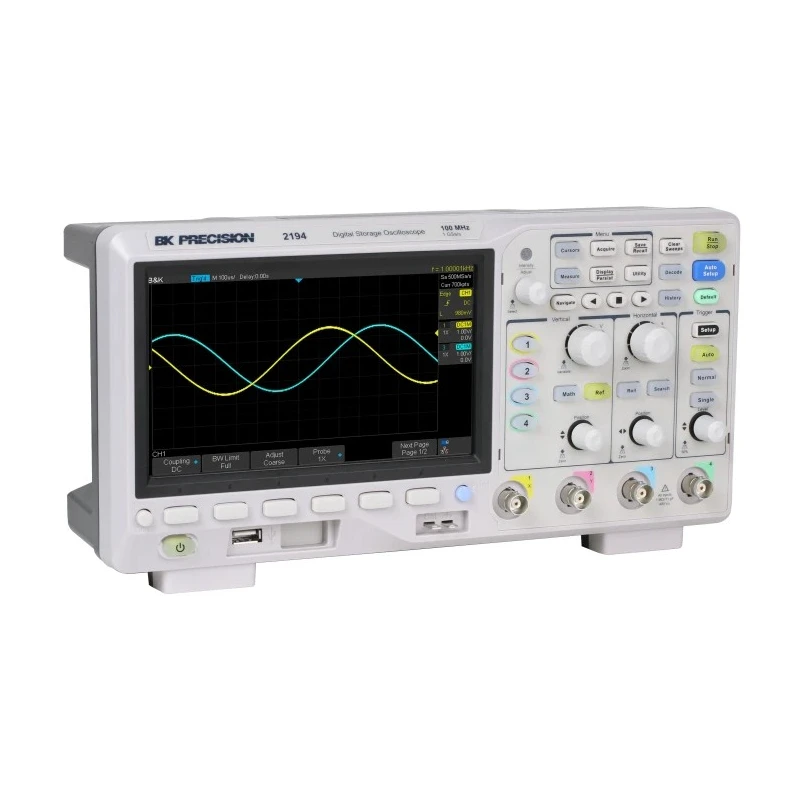

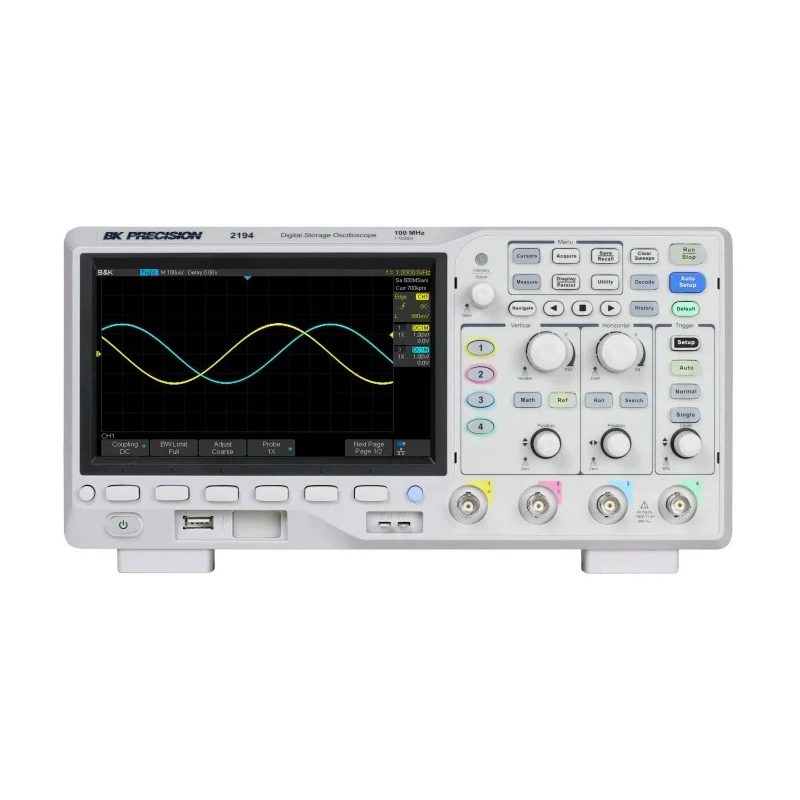

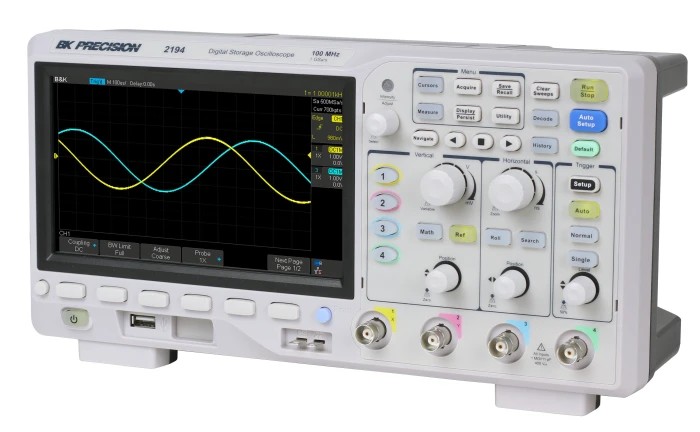

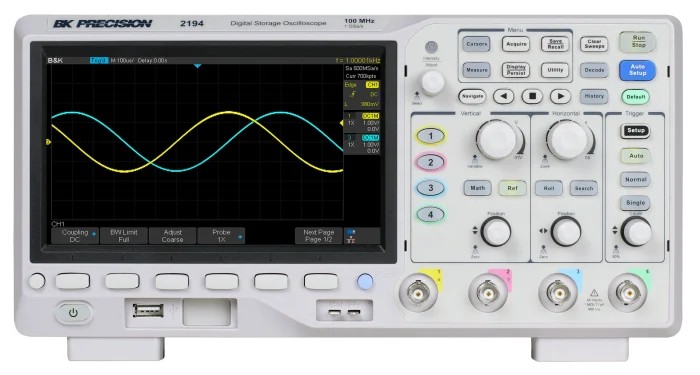

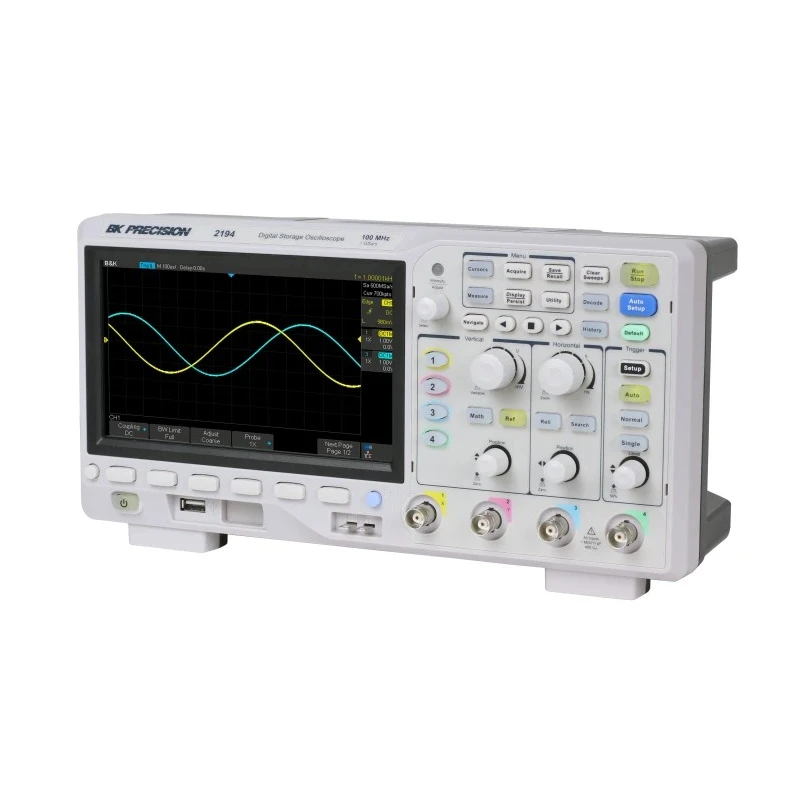

BK Precision 100 MHz Bench Oscilloscope 4-Channel Digital Storage Instrument BK2194

BK Precision BK2194 is a professional Digital Storage Oscilloscope featuring 100 MHz bandwidth and 4 analog channels. It is designed for comprehensive electrical signal measurement and analysis in industrial, laboratory, educational, and electronics engineering environments.

This bench oscilloscope offers a maximum sample rate of 1 Giga Samples per second and a large memory depth of 14 Mega points, enabling detailed waveform capture and analysis.

The instrument features a 7-inch widescreen TFT-LCD with 800 x 480 resolution for clear visualization of waveforms, along with extensive triggering options including pulse width, line-selectable video, and serial protocol triggers.

Advanced functions such as FFT (Fast Fourier Transform) enable frequency domain analysis, while the unit supports serial decoding for five communication protocols (I2C, SPI, UART, CAN, LIN), ideal for debugging embedded and communication systems.

The BK2194 supports segmented acquisition capable of storing up to 80,000 frames and high waveform capture rates up to 400,000 waveforms per second in sequence mode, facilitating detailed signal inspection.

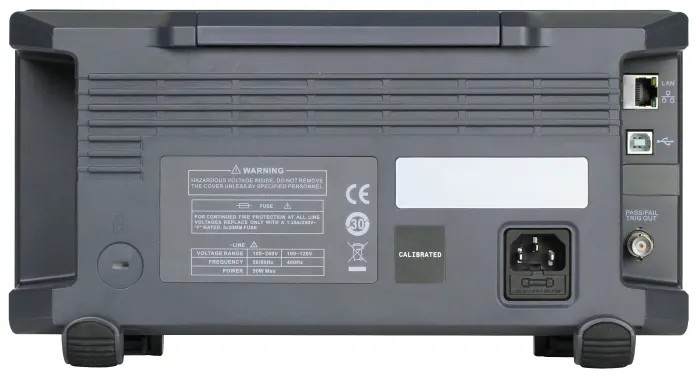

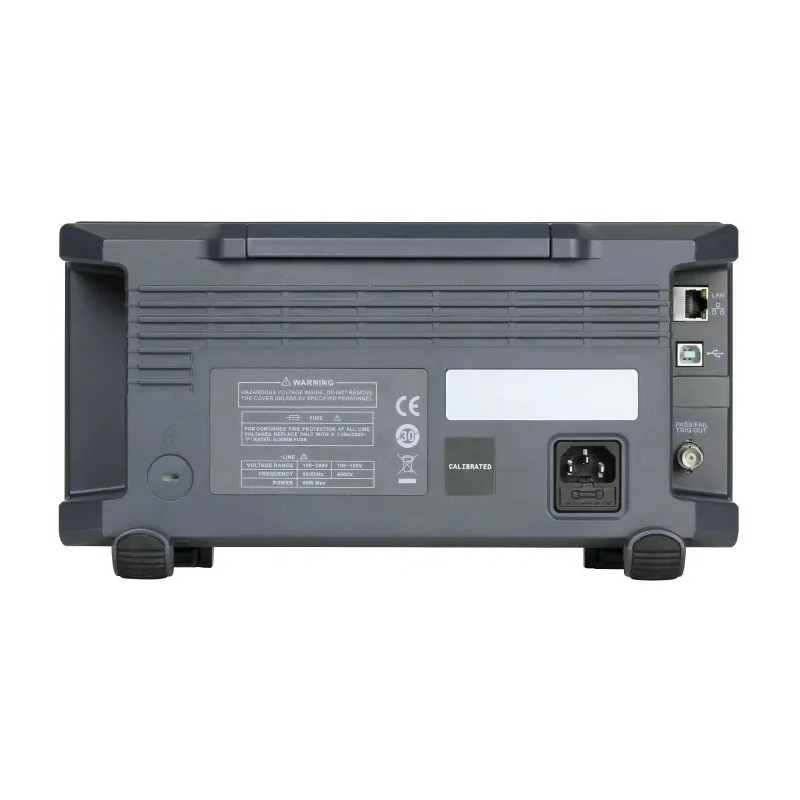

Connectivity includes LAN and USBTMC compliant device ports for PC control, as well as a USB host port for saving and recalling waveform setups, data, and screenshots, enhancing usability in laboratory and industrial test setups.

Typical applications include troubleshooting electronic circuits, component testing, and research and development activities involving signal measurement and analysis in educational and hobbyist settings.

Provides 100 MHz bandwidth for precise signal capture. Features 4 analog channels supporting multiple inputs. Equipped with a 7-inch widescreen TFT-LCD for clear waveform display. Maximum sample rate of 1 GSa/s for accurate data sampling.

Includes serial decoding for I2C, SPI, UART, CAN, and LIN protocols. Offers waveform capture rates up to 400,000 waveforms per second in sequence mode. Includes segmented acquisition storing up to 80,000 frames. Provides FFT for frequency domain signal analysis.
