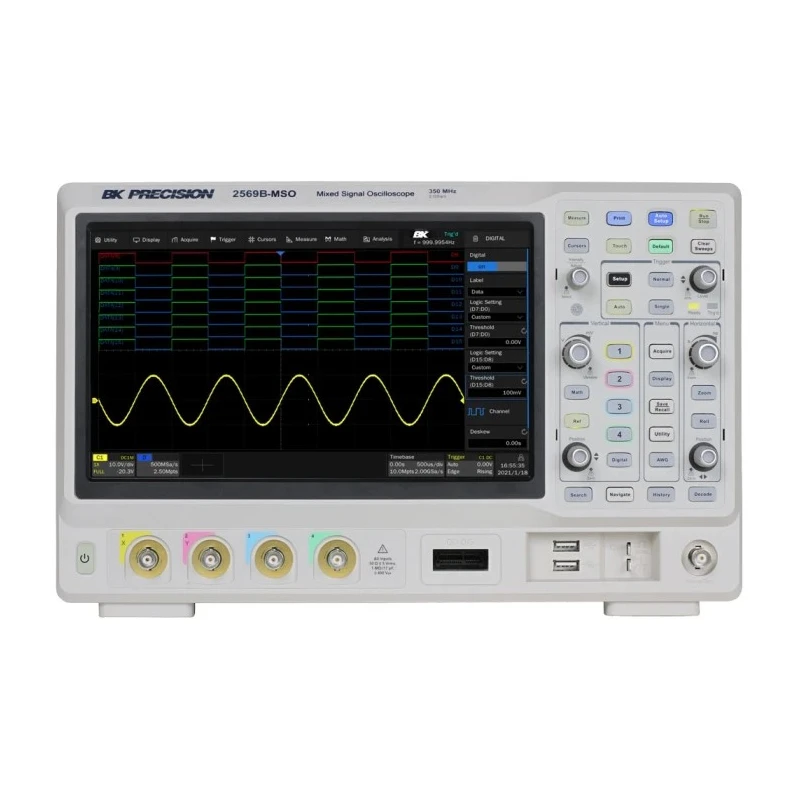

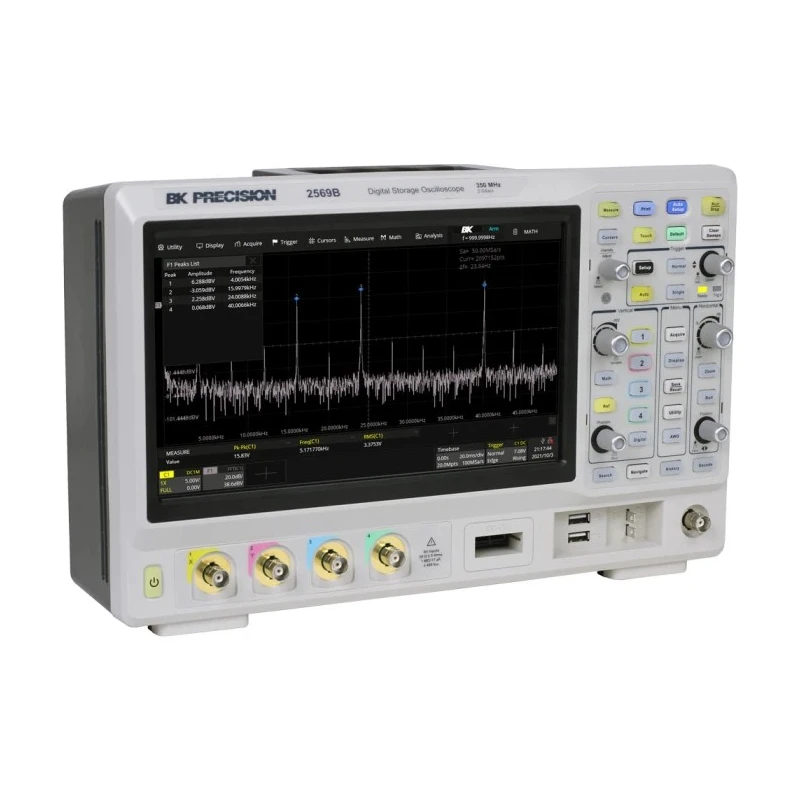

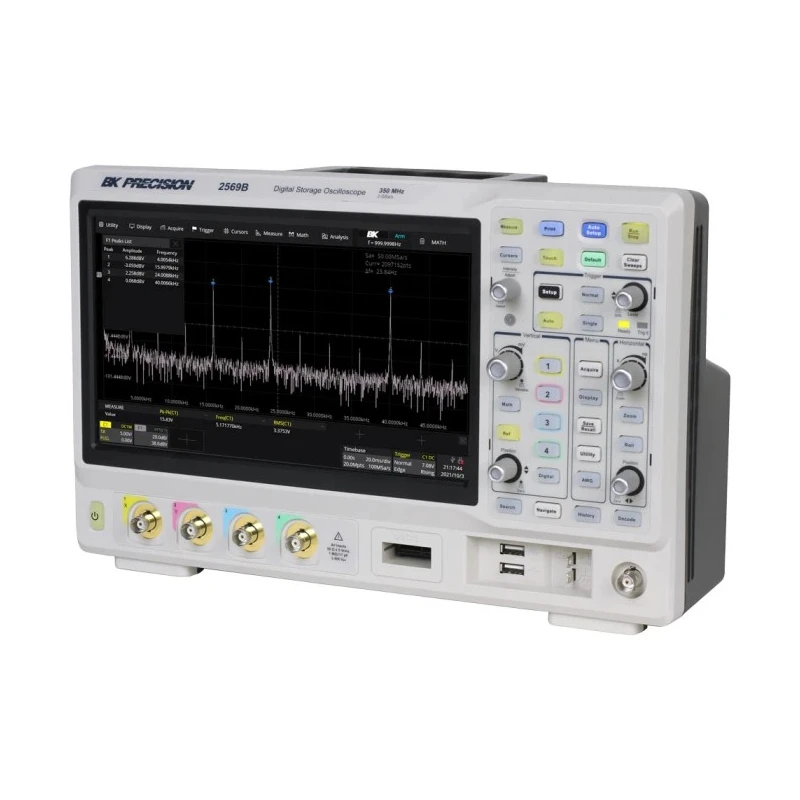

BK Precision 2560B Series 350 MHz Bench Oscilloscope 4-Channel BK2569B-MSO

BK Precision BK2569B-MSO Bench Oscilloscope 4-Channel 350 MHz provides robust digital storage and mixed signal analysis functionality for industrial, laboratory, and engineering applications. Equipped with 350 MHz bandwidth and 4 analog channels, it enables precise waveform measurements and signal troubleshooting.

This bench oscilloscope supports up to 2 GSa/s sample rate and 200 Mpts maximum memory depth, allowing high-resolution data capture. The large 10.1 inch capacitive touchscreen with 1024 x 600 resolution offers user-friendly operation through touchscreen gestures.

The BK2569B-MSO model supports serial bus decoding for I2C, SPI, UART, CAN, and LIN protocols, critical for embedded system debugging. Software upgrades extend protocol support to FlexRay, I2S, CAN FD, MIL-STD-1553B, SENT, and Manchester decoding.

Additional features include a 50 MHz direct digital synthesis waveform generator, power analysis evaluating 11 different power supply parameters, segmented acquisition, and a history function with a maximum storage of 90,000 frames to review complex signals over time.

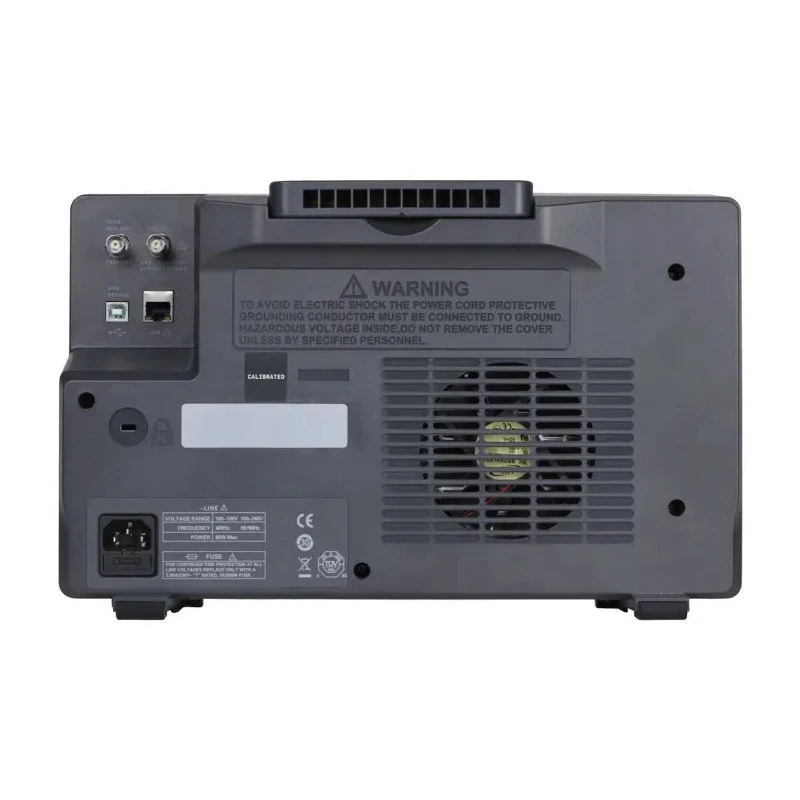

Connectivity via Standard LAN, USBTMC-compliant USB device, and dual USB host ports enables remote control through built-in web server or PC software, facilitating integration into automated test setups.

This oscilloscope is ideal for industrial maintenance, research laboratories, electronics manufacturing, and automotive diagnostics, providing versatility and advanced functionality for demanding test environments.

This bench oscilloscope features 350 MHz bandwidth and 4 analog channels for comprehensive signal analysis. It supports a maximum sample rate of 2 GSa/s and maximum memory depth of 200 Mpts for detailed waveform capture.

The device includes a large 10.1 inch capacitive touchscreen with 1024 x 600 resolution for intuitive operation. Standard serial bus decoding supports I2C, SPI, UART, CAN, and LIN protocols, with software upgrades for additional protocol analysis.

A 50 MHz arbitrary waveform generator and power analysis are integrated for advanced testing applications. Connectivity options include Standard LAN, USBTMC-compliant USB device, and two USB host ports for flexible remote control.

The oscilloscope offers segmented acquisition and a history function with storage of up to 90,000 frames for thorough data review. Explore the full BK Precision Oscilloscope range and other test and measurement instruments on EnvMart.
