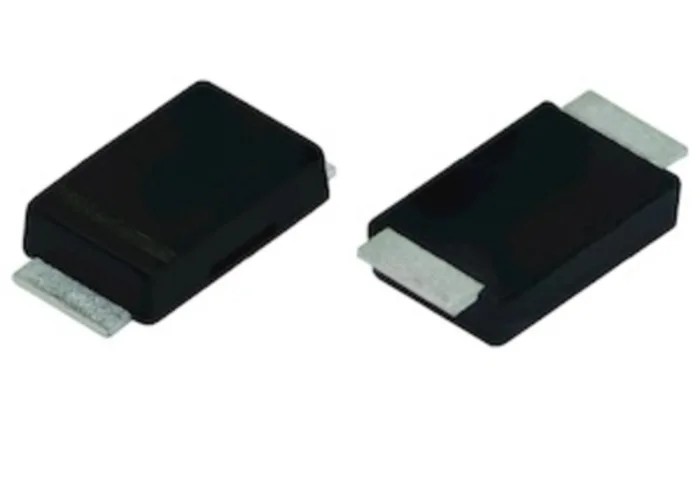

Vishay 120 V 2 A Schottky Barrier Rectifier 2-Pin DO-221AD VSS8D2M12-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VSS8D2M12-M3/H |
| Mount Type | Surface |
| Series | VSS8D2M12 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 120V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.59V |
Key Features
- Supports a maximum continuous forward current of 2 Amps.
- Can withstand peak reverse repetitive voltages up to 120 Volts.
- Features a low maximum forward voltage drop of 0.59 Volts for efficient operation.
- Designed to operate in a temperature range from -40°C to 175°C for reliability.
- Utilizes a surface mount DO-221AD package with 2 pins for compact installation.
- Exhibits low leakage current, suitable for high-frequency inverter and DC/DC converter use.
- Complies with RoHS standards ensuring environmental safety.
- Meets the automotive AEC-Q101 standard for tough automotive applications.
Product Description
Vishay VSS8D2M12-M3/H Schottky Barrier Rectifier 2-Pin DO-221AD is engineered for fast switching speeds and low forward voltage drop, essential for modern industrial and automotive electronic circuits.
Its robust surface mount DO-221AD package provides mechanical reliability and ease of automated placement on PCBs. The device offers a maximum continuous forward current of 2 Amps with a peak reverse voltage rating of 120 Volts, making it suitable for power rectification in high frequency inverters and DC/DC converters.
Operating from -40°C to 175°C, this diode maintains stable performance across wide temperature ranges, which is critical for harsh industrial and automotive environment applications. The diode is designed with a single configuration and a low maximum forward voltage of 0.59 Volts to minimize power loss and increase efficiency in switching and rectification tasks.
Additional features include low leakage current and compliance with RoHS environmental standards, alongside automotive-grade AEC-Q101 qualification, ensuring suitability for demanding automotive electronic systems. The product origin is China.
Supports 2 A maximum continuous forward current for reliable load handling. Peak reverse repetitive voltage of 120 V ensures robustness against voltage spikes. Low forward voltage drop of 0.59 V reduces energy loss. Wide operating temperature range from -40°C to 175°C for versatile industrial applications.
Surface mount DO-221AD package allows for compact automated assembly. Low leakage current advantageous in high frequency inverter circuits. Complies with RoHS and meets automotive standard AEC-Q101. Ideal for freewheeling, polarity protection, and DC/DC converter applications.
This diode is suitable for integration in electronic components, power systems, automotive electronics, and industrial machinery requiring efficient and reliable rectification capability.
Explore related Vishay semiconductors for advanced power management solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum continuous forward current of 2 Amps.
It has a peak reverse repetitive voltage rating of 120 Volts, ensuring robustness against voltage spikes.
The diode features a low maximum forward voltage drop of 0.59 Volts, which helps minimize power loss during operation.
It is designed to operate in a temperature range from -40°C to 175°C, making it suitable for various industrial applications.
This unit utilizes a surface mount DO-221AD package, which allows for compact installation and automated assembly.
It meets the automotive AEC-Q101 standard, ensuring its suitability for demanding automotive applications.
The dimensions of this model are 5mm in length and 2.7mm in height.
The low leakage current is advantageous for high-frequency inverter and DC/DC converter applications, improving efficiency.
This model is classified as a Schottky rectifier, known for fast switching speeds and low forward voltage drop.
The country of origin for this diode is China.
It complies with RoHS standards, ensuring environmental safety during its production and use.
