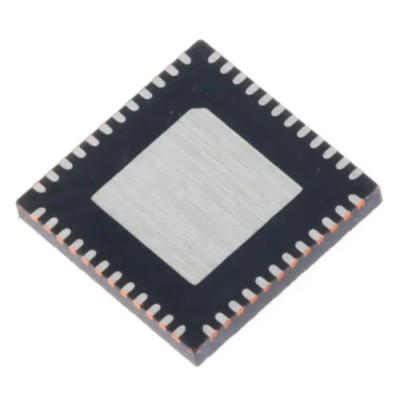

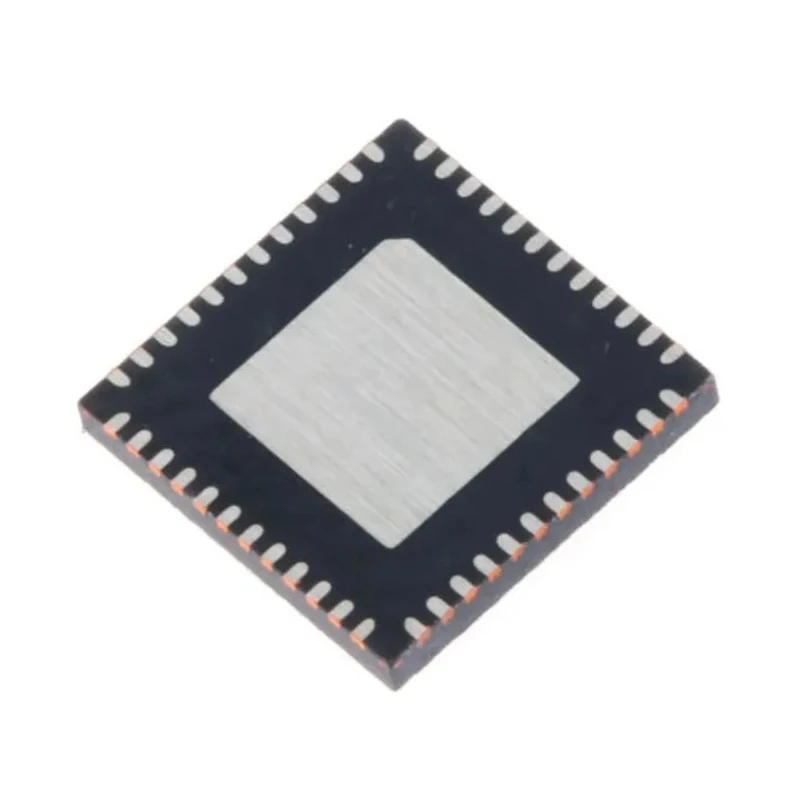

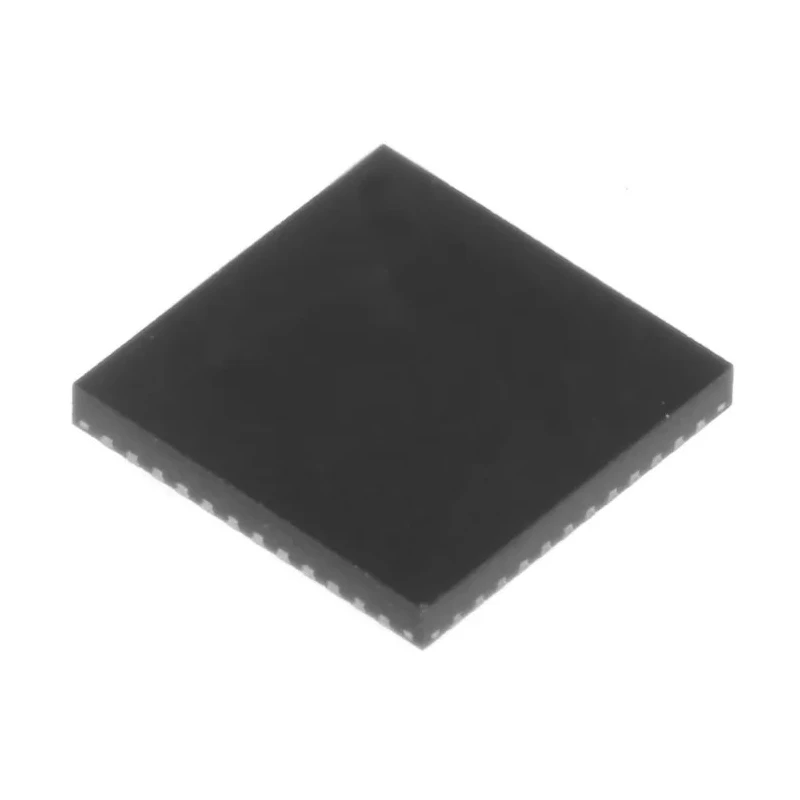

STMicroelectronics 8-Channel Channel Protector 35V, 48-Pin QFN SCLT3-8BQ7-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 950μm |
| Length | 7mm |
| Model | SCLT3-8BQ7-TR |
| Mount Type | Surface |
| Series | SCLT3-8BQ7 |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Pin Count | 48 |
| Maximum Supply Voltage | 35V |
| Maximum Power Dissipation Pd | 78mW |
| Minimum Supply Voltage | 15V |
Key Features
- Features 8 protected input channels suitable for industrial automation systems.
- Operates within a voltage range from 15V to 35V for flexible applications.
- Maximum power dissipation is rated at 78mW ensuring efficient energy use.
- Designed to operate in temperatures ranging from -40°C to 105°C for harsh environments.
- Compact dimensions with a length of 7mm and height of 950µm for space-optimized PCB design.
- Surface mount package ensures easy assembly and integration in digital input modules.
- Incorporates Current-Limiting Termination (CLT) for enhanced overvoltage protection.
Product Description
STMicroelectronics SCLT3-8BQ7-TR is a high-performance 8-channel channel protector IC designed for industrial, factory automation, and building automation systems. The device is housed in a compact 48-pin QFN surface mount package with precise dimensions of 7mm length and 950μm height, making it suitable for integration in digital input modules and proximity sensor interfaces.
The SCLT3-8BQ7-TR operates over a wide voltage range with a minimum supply voltage of 15V and a maximum supply voltage of 35V. It features an overvoltage protection capability of 600W along with an integrated Current-Limiting Termination (CLT) function to protect input interfaces from transient voltage spikes and ensure system reliability.
Designed to withstand harsh industrial environments, this channel protector supports operating temperatures from -40°C to 105°C. Its maximum power dissipation is rated at 78mW, highlighting its efficiency and suitability in power-sensitive applications.
The device does not carry automotive standards or specific certifications, but it is engineered to meet stringent industrial requirements for robust and reliable protection of digital input modules and PLC interfaces.
Features 8 input protected channels for versatile interface protection. Surface mount QFN 48-pin package for compact integration. Rated for a wide supply voltage from 15V to 35V. Power dissipation of 78mW for efficient thermal management.
Wide operating temperature range from -40°C to 105°C. Incorporates Current-Limiting Termination for enhanced protection. Ideal for industrial and building automation applications.
This channel protector is ideal for applications requiring reliable digital input protection such as factory automation systems, PLC digital inputs, and proximity sensor interfaces. Its compact form factor and rugged electrical specifications make it a valuable component in manufacturing, industrial control, and automation sectors.
Browse more semiconductor channel protectors and interface ICs at EnvMart for your automation system needs.
Explore more products in our Channel Protector ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 15V to 35V, allowing for flexible applications in various industrial settings.
The SCLT3-8BQ7-TR features 8 protected input channels, making it suitable for multiple interface protection needs.
It has compact dimensions of 7mm in length and 950μm in height, which facilitates space-optimized PCB design.
The maximum power dissipation is rated at 78mW, ensuring efficient energy use in applications.
This channel protector is designed to operate in temperatures ranging from -40°C to 105°C, suitable for harsh environments.
It is housed in a 48-pin QFN surface mount package, which allows for easy assembly and integration into digital input modules.
Yes, it features an overvoltage protection capability of 600W, along with an integrated Current-Limiting Termination for enhanced protection.
This model is ideal for applications requiring reliable digital input protection, such as factory automation systems and PLC digital inputs.
The SCLT3-8BQ7-TR has a pin count of 48, which supports its functionality in various electronic configurations.
This model is part of the SCLT3-8BQ7 series, indicating its specific design and features within the product line.
The country of origin for this model is India, reflecting its manufacturing location.
The Current-Limiting Termination enhances overvoltage protection, ensuring the reliability of input interfaces against transient voltage spikes.
