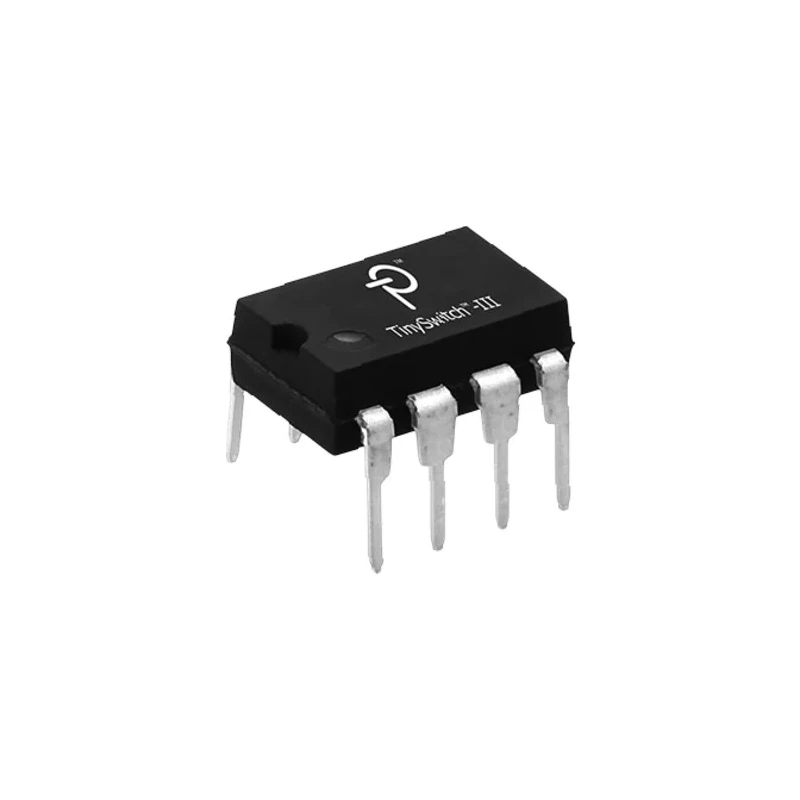

Power Integrations High Side Off Liner Power Switch IC 8-Pin DIP-C TNY277PN
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Power Integrations |
| Height | 3.68mm |
| Length | 9.83mm |
| Model | TNY277PN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Number of inputs | 1 |
| Series | TNY277 |
| Power Rating | 18W |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP-C |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1650mA |
| Number of outputs | 5 |
| Pin Count | 8 |
| Switch On Resistance RdsOn | 13.5Ω |
| Self-biased | no bias winding or bias components |
Key Features
- The device incorporates a 700 V power MOSFET for high voltage operation.
- Features include an oscillator, current limit with selectable levels, and thermal shutdown circuitry.
- Switch On Resistance (RdsOn) of 13.5Ω ensures efficient switching.
- Power rating is 18W to support extended power capabilities.
- Operates between -40°C to 150°C for reliable performance.
- Mount type is through hole with 8 pins in DIP-C package.
- Operating current rating is 1650 mA for versatile applications.
- Designed with simple ON/OFF control, requiring no loop compensation.
Product Description
Power Integrations TNY277PN High Side Off Liner Power Switch IC 8-Pin DIP-C is a compact and efficient power management integrated circuit offering a 700 V power MOSFET, oscillator, high voltage switched current source, user-selectable current limit, and thermal shutdown.
This TinySwitch-III series IC employs an ON/OFF control scheme, delivering flexible design options with low system cost and extended power capability up to 18W. Its simple ON/OFF control requires no loop compensation, simplifying circuit design for industrial, electronic component, and power supply applications.
The package is through hole mounted in an 8-pin DIP-C form factor, suitable for diverse electronics manufacturing environments. Key features include a 13.5Ω switch on resistance and operating current of 1650 mA, allowing it to handle high-side switching efficiently in power switching circuits.
The IC performs reliably across a temperature range of -40°C to 150°C and incorporates frequency jittering to minimize EMI filter expenses. Its self-biased design eliminates the need for bias winding or bias components, further simplifying end-use circuit design.
Manufactured in Malaysia, this product complies with industry standards and is ideal for power management IC use in consumer electronics, industrial power supplies, and other semiconductor applications.
The device integrates a 700 V power MOSFET with oscillator and thermal protection. Selected current limit optimizes MOSFET and magnetic component power delivery. Pin-out simplifies heatsinking to PCBs. Frequency jittering reduces the cost and size of EMI filters.
Self-biased, requiring no additional bias components. Through hole 8-pin DIP-C package for easy integration and durability. Operating temperature range from -40°C to 150°C for industrial reliability. Power rating of 18W supports moderate power applications.
Manufactured in Malaysia with consistent quality assurance.
Choose Power Integrations TNY277PN for robust, cost-effective power switch IC solutions in electronics manufacturing, power supplies, and industrial control systems. Explore more power management and switch ICs in EnvMart's comprehensive semiconductor category.
Explore more products in our Power Switch ICs category.
