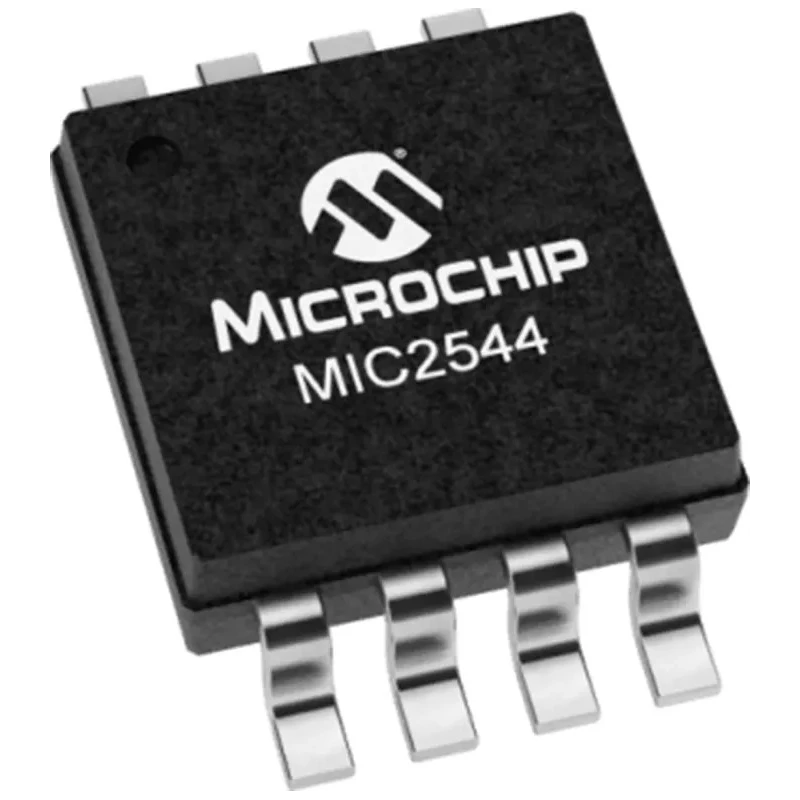

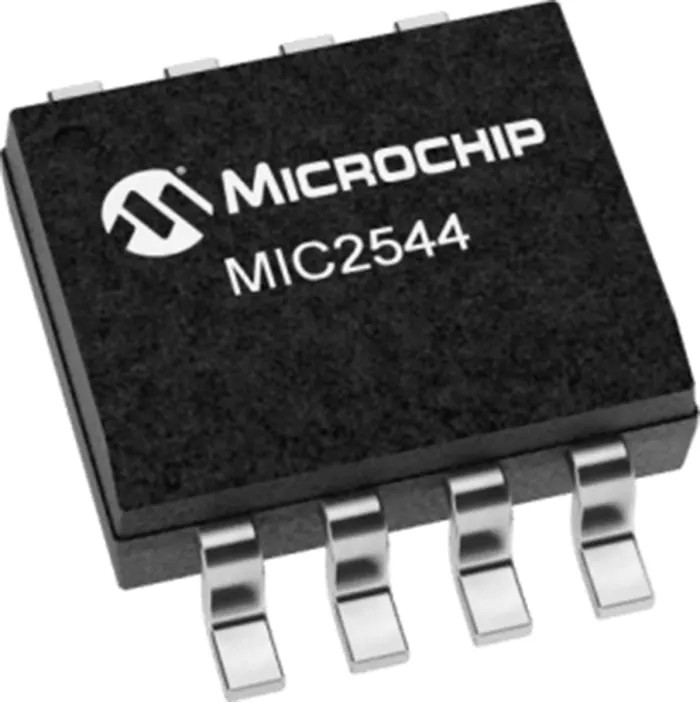

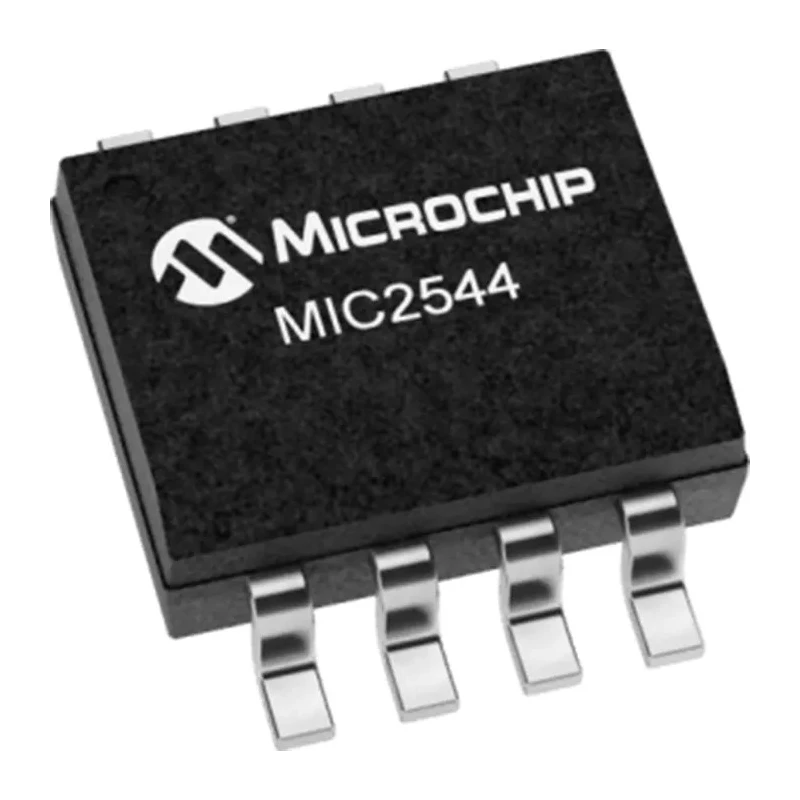

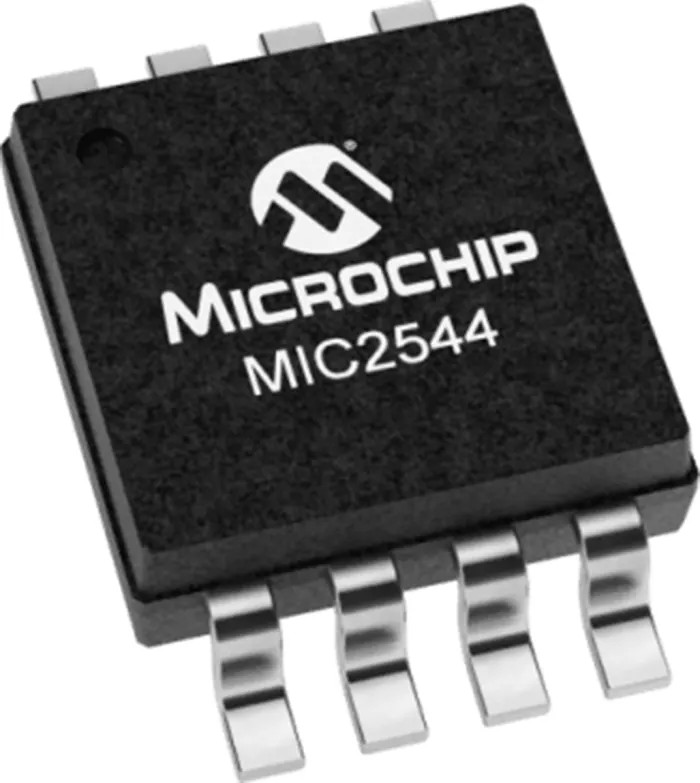

Microchip High Side Power Switch IC 8-Pin SOIC 2 Outputs 1 Input 1.5A 2.7-5.5V MIC2544-1YM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 5mm |
| Model | MIC2544-1YM |
| Width | 3.99mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | MIC2544 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1.5A |
| Number of outputs | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 120mΩ |
Key Features
- Equipped with 2 high side outputs and 1 input for power switching.
- Low 120mΩ switch on resistance for reduced power loss.
- Surface mount SOIC package with 8 pins for compact integration.
- Wide operating temperature range from -40°C to 125°C.
- Reverse current blocking and adjustable current limit enhance protection.
- Ultra-low quiescent current in on and off states for energy saving.
- Features open-drain fault flag for fault indication.
- Thermal shutdown circuitry to prevent damage from overheating.
Product Description
Microchip MIC2544-1YM is a reliable high side power switch integrated circuit designed for low loss DC power switching and advanced power management applications, including Advanced Configuration and Power Interface (ACPI).
This 8-pin SOIC device supports a supply voltage range from 2.7V up to 5.5V and provides adjustable current limiting up to 1.5A, suitable for various electronic and embedded system power control needs.
The MIC2544-1YM features reverse current flow blocking without a body diode, ensuring safe operation and load protection. Its low maximum on-resistance of 120mΩ minimizes voltage drops and heat dissipation during conduction.
Energy efficiency is enhanced by a typical on-state supply current of only 75μA and a typical off-state current of just 1μA, prolonging battery life in portable designs.
Additional built-in protections include an open-drain fault flag output to signal abnormal conditions and thermal shutdown circuitry to protect against overheating. The device supports a slow 2ms turn-on time combined with a fast turn-off for precise load switching.
2 high side power outputs with 1 input control. Low Rds(on) of 120 milliohms to reduce losses. Wide operating temperature from -40°C to 125°C. Adjustable current limit up to 1.5A. Reverse current flow blocking for safe operation.
Low quiescent current in both on and off states. Open-drain fault flag for fault detection. Thermal shutdown protection included. Slow turn-on and fast turn-off switching.
This power switch IC is suitable for industrial, automotive, consumer electronics, and computer power management applications, delivering compact and efficient power switching solutions.
Explore more high quality semiconductor and power management ICs in the Power Switch ICs category at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
It supports a supply voltage range from 2.7V to 5.5V.
This unit has 2 high side outputs.
The switch on resistance (Rds(on)) is 120mΩ, which helps reduce power loss.
It comes in an 8-pin SOIC package, suitable for surface mounting.
The adjustable current limit can go up to 1.5A.
Yes, it features an open-drain fault flag output for fault detection.
The typical on-state supply current is only 75μA, contributing to energy efficiency.
It operates within a wide temperature range from -40°C to 125°C.
The device has a slow turn-on time of 2ms combined with a fast turn-off.
The country of origin for this model is India.
This model has 1 input for control.
