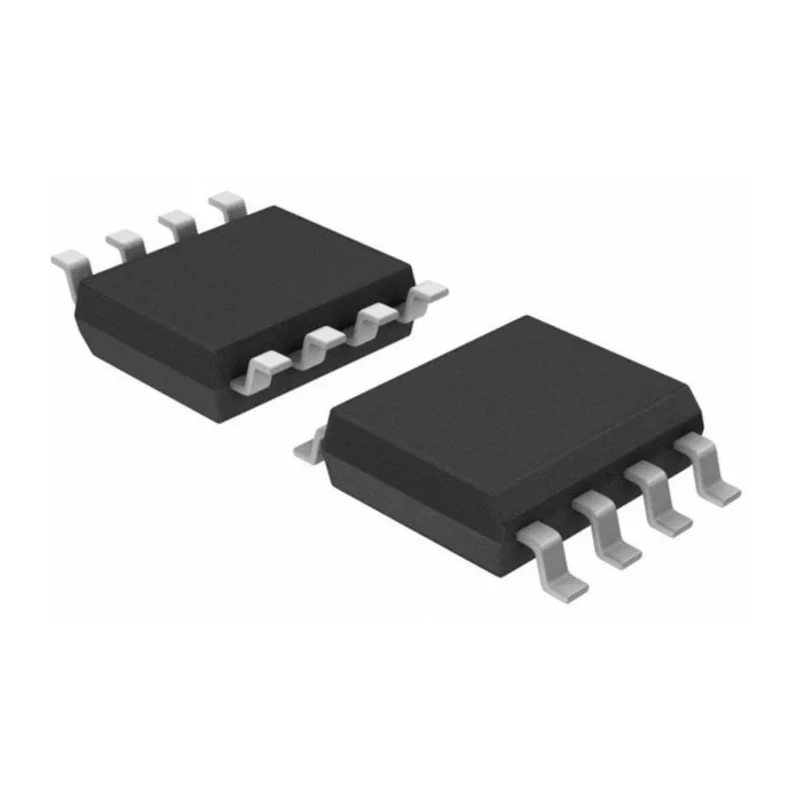

STMicroelectronics MOSFET Gate Driver 1 Channel 6A Output Current 8-Pin SO-8 Package VN5E160ASTR-E
Specifications
| Country of Origin | the proprietary VI Power |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 5mm |
| Model | VN5E160ASTR-E |
| Width | 4mm |
| Mount Type | Surface |
| Output Current | 6A |
| Maximum Operating Temperature | 150°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 10μs |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 28V |
| Number of Drivers | 1 |
| Fall Time | 10μs |
| Driver Type | MOSFET |
Key Features
- Designed with proprietary VI Power M0-5 technology for enhanced performance.
- Operates at a minimum and maximum supply voltage of 28V for stable power delivery.
- Features 5 output drivers with fast rise and fall times of 10 microseconds.
- Supports operating temperature range from -40°C up to 150°C for harsh environments.
- Includes advanced protection features like load current limitation and thermal shutdown with auto-restart.
- Automotive AEC-Q100 compliant ensuring automotive-grade quality and reliability.
- Compatible with 3V and 5V CMOS microcontroller interfaces for easy integration.
Product Description
STMicroelectronics VN5E160ASTR-E is a single-channel MOSFET gate driver designed to deliver a peak output current of 6A, housed in a compact SO-8 surface mount package. Utilizing proprietary VI Power M0-5 technology, this device ensures robust performance for automotive and industrial control applications requiring reliable high-side switching.
This gate driver operates with a supply voltage of 28V and includes 5 output drivers capable of fast switching with 10μs rise and fall times. It supports a wide operating temperature range from -40°C to 150°C, which makes it suitable for challenging thermal environments typical in automotive systems.
Safety and protection are integral features of the VN5E160ASTR-E. It includes load current limitation, active inrush and overload power management, overvoltage active clamp, and thermal shutdown with automatic restart functions, ensuring device and load safety.
The driver interfaces easily with 3V and 5V CMOS logic levels, facilitating direct microcontroller control. Its surface mount SO-8 package measures 5mm x 4mm x 1.65mm, supporting compact PCB designs. This device is compliant with the automotive AEC-Q100 standard, guaranteeing reliability in automotive electronics applications.
Common industrial use cases for this MOSFET gate driver include automotive motor controls, power management in embedded systems, HVAC system controls, and general-purpose industrial switching where precise, rapid MOSFET driving is required.
Designed with proprietary VI Power M0-5 technology for enhanced performance. Operates at a minimum and maximum supply voltage of 28V for stable power delivery. Features 5 output drivers with fast rise and fall times of 10 microseconds.
Supports operating temperature range from -40°C up to 150°C for harsh environments. Includes advanced protection features like load current limitation and thermal shutdown with auto-restart. Surface mount SO-8 package with compact dimensions: 5mm length, 4mm width, and 1.65mm height.
Automotive AEC-Q100 compliant ensuring automotive-grade quality and reliability. Compatible with 3V and 5V CMOS microcontroller interfaces for easy integration. Explore more MOSFET Gate Drivers and semiconductor components at EnvMart to fulfill your electronics design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VN5E160ASTR-E can deliver a peak output current of 6A.
It operates with a minimum and maximum supply voltage of 28V for stable power delivery.
This model supports an operating temperature range from -40°C to 150°C, making it suitable for harsh environments.
The SO-8 package measures 5mm in length, 4mm in width, and 1.65mm in height.
The output drivers feature fast rise and fall times of 10 microseconds.
This device includes 5 output drivers.
Yes, it is compliant with the automotive AEC-Q100 standard, ensuring automotive-grade quality and reliability.
It is compatible with 3V and 5V CMOS microcontroller interfaces for easy integration.
The VN5E160ASTR-E includes load current limitation, thermal shutdown with auto-restart, and overvoltage active clamp.
This MOSFET gate driver has a pin count of 8.
Common applications include automotive motor controls, power management in embedded systems, and HVAC system controls.
It is designed with proprietary VI Power M0-5 technology for enhanced performance.
