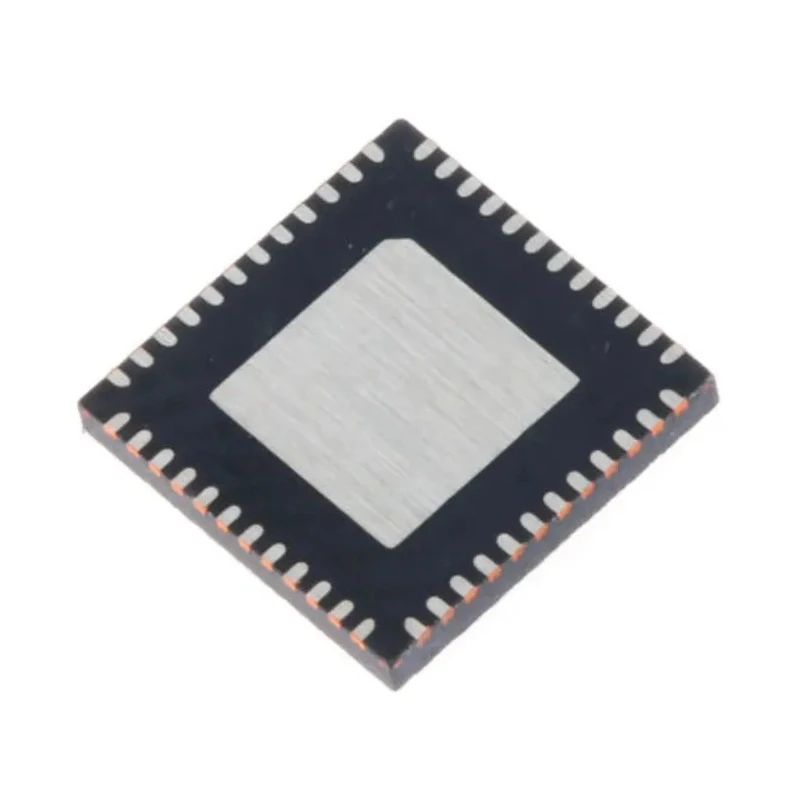

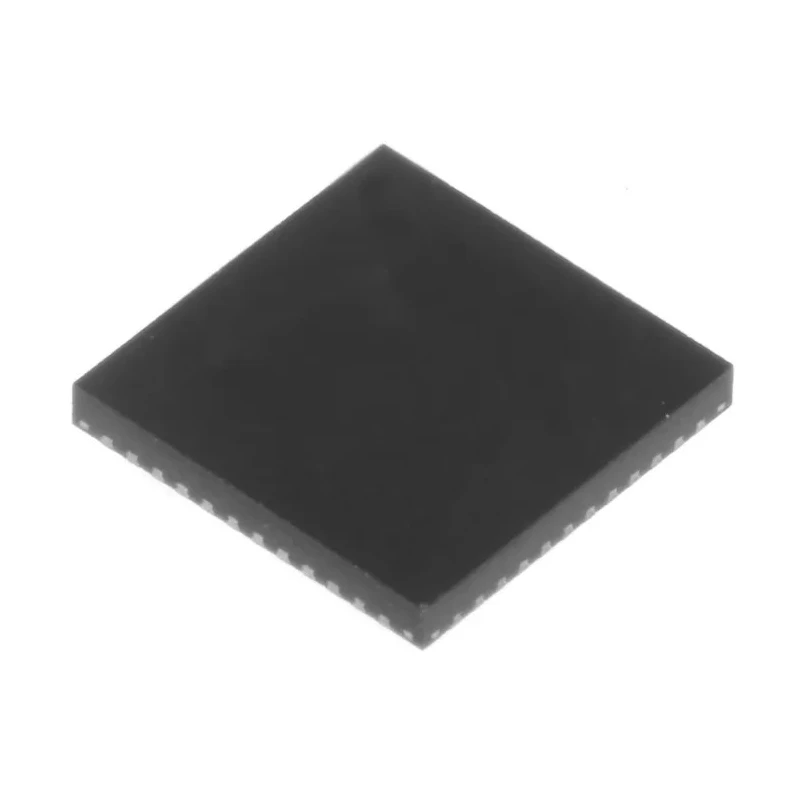

STMicroelectronics 8-Channel Channel Protector 35V, 48-Pin QFN CLT01-38SQ7-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 950μm |
| Length | 7mm |
| Model | CLT01-38SQ7-TR |
| Mount Type | Surface |
| Series | CLT01-38SQ7 |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Pin Count | 48 |
| Maximum Supply Voltage | 35V |
| Maximum Power Dissipation Pd | 78mW |
| Minimum Supply Voltage | 15V |
Key Features
- Features 8 protected input channels for signal integrity.
- Mounted on a Surface Mount Device with a compact 48-pin QFN package.
- Operates reliably from -40°C up to 105°C in industrial environments.
- Supports a minimum supply voltage of 15V and maximum voltage of 35V.
- Maximum power dissipation of 78mW ensures energy efficiency.
- Channel protector includes current-limiting termination for enhanced protection.
- Compact form factor with 7 mm length and 950 μm height dimensions.
- Ideal for use in factory automation, PLC interfaces, and proximity sensor modules.
Product Description
STMicroelectronics CLT01-38SQ7-TR 8-Channel Channel Protector operates at a 35V maximum supply voltage and is packaged in a 48-pin QFN surface mount device. It is engineered to provide current-limiting terminations and intelligent protection for digital input modules and proximity sensor interfaces.
This advanced channel protector incorporates 8 input protected channels and integrates SPI output along with 600 W overvoltage protection, facilitating resilient performance within factory, industrial, and building automation systems, including PLCs.
The device functions reliably over a wide temperature range from -40°C to 105°C, making it suitable for demanding operational environments. Its energy-efficient design features a maximum power dissipation of 78mW.
With compact physical dimensions of 7 mm in length and 950 μm in height, the CLT01-38SQ7-TR supports efficient component placement on PCBs while maintaining robust protection capabilities.
This product is part of the CLT01-38SQ7 series by STMicroelectronics and is well-suited for integration within industrial interfaces requiring overvoltage and signal protection. Features 8 protected input channels for enhanced signal integrity.
Surface mount technology in a QFN 48-pin package ensures compactness. Wide operating temperature range supports industrial applications. Power dissipation rated at 78mW for energy-efficient operation. Designed for current-limiting termination to protect digital inputs.
Compact dimensions facilitate integration into tight electronic assemblies. Includes overvoltage protection rated up to 600 W. Applicable for factory automation, industrial controls, and sensor protection. Part of the reliable and recognized CLT01-38SQ7 series.
This channel protector is essential for safeguarding sensitive digital input circuits in industrial electronics applications. For additional products and components from STMicroelectronics, please explore EnvMart’s Electronics & Electricals categories.
Explore more products in our Channel Protector ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 35V.
It features 8 protected input channels for enhanced signal integrity.
The device operates reliably within a temperature range of -40°C to 105°C.
This model has a length of 7 mm and a height of 950 μm.
The maximum power dissipation is rated at 78mW, ensuring energy efficiency.
It is packaged in a 48-pin QFN surface mount device.
It includes current-limiting termination and overvoltage protection rated up to 600 W.
It is suitable for factory automation, PLC interfaces, and proximity sensor modules.
The country of origin for this model is India.
It features 8 protected input channels that help maintain signal integrity in digital input circuits.
This product is part of the CLT01-38SQ7 series by STMicroelectronics.
It utilizes a surface mount technology for compact integration.
