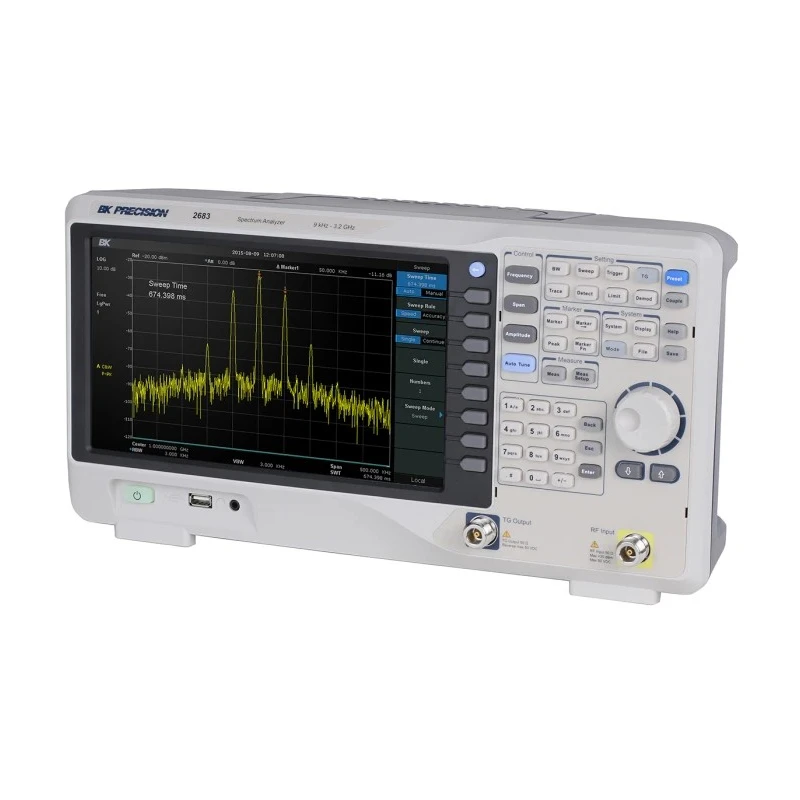

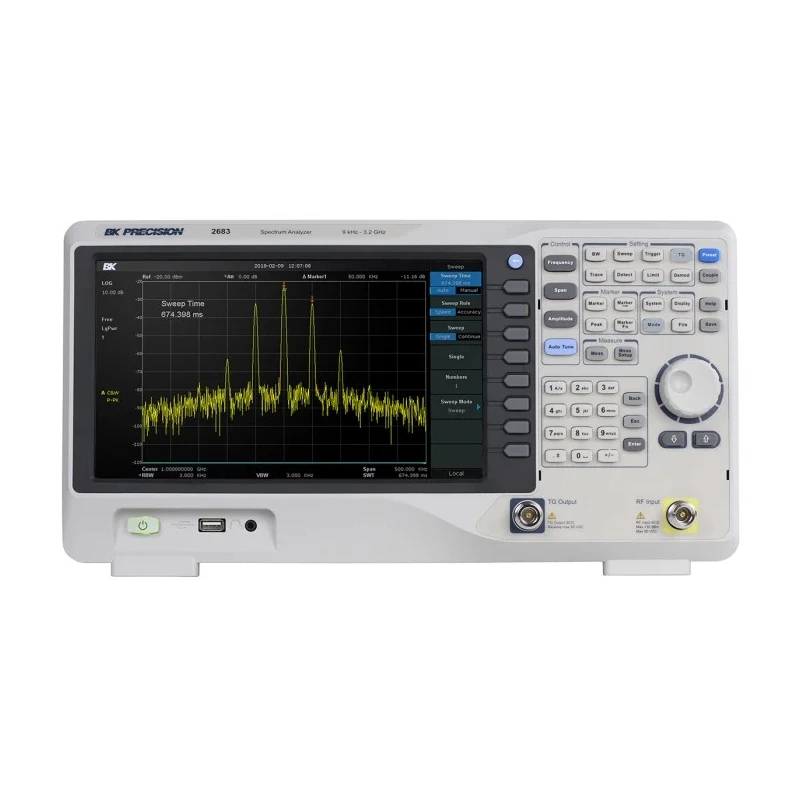

BK Precision 2680 Series Spectrum Analyser 9 kHz to 3.2 GHz Bandwidth, 3200000 kHz, TFT LCD Display BK2683

BK Precision BK2683 Spectrum Analyser from the 2680 series provides a robust frequency range spanning 9 kHz to 3.2 GHz with a bandwidth of 3.2 MHz, tailored for demanding industrial and laboratory signal testing scenarios.

This model features a high sensitivity of -161 dBm/Hz displayed average noise level, facilitating accurate detection of low-level signals. The low phase noise of -98 dBc/Hz at 10 kHz offset enhances measurement precision by minimizing interference.

The BK2683 is equipped with a 10.1 inch TFT LCD display offering a resolution of 1024 x 600 pixels, enhancing readability and user interaction. Versatile sweep modes including Single and Continuous, combined with span setting modes, ensure adaptable testing configurations.

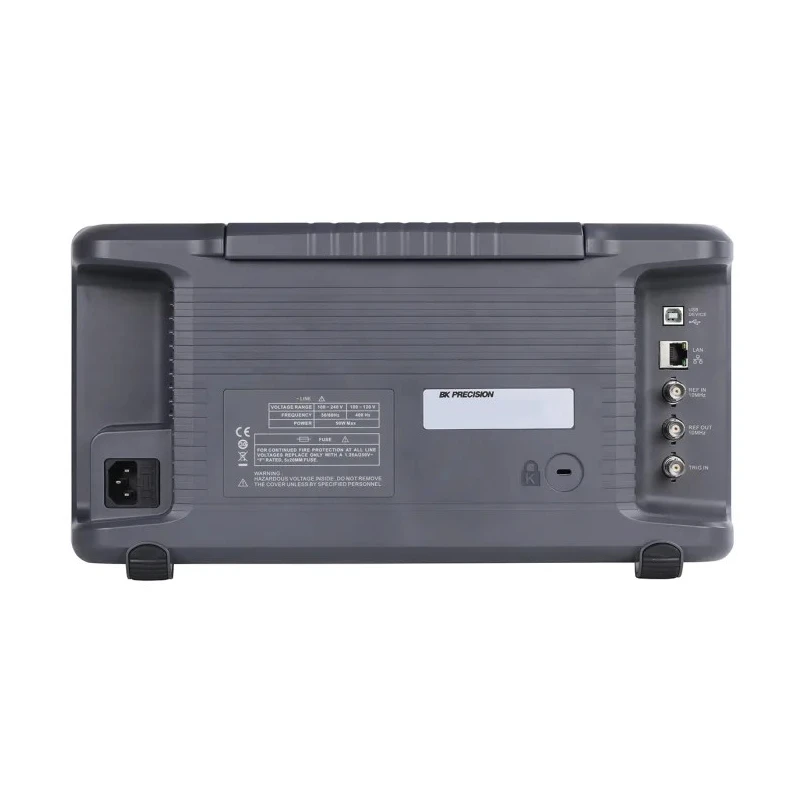

Standard inclusions such as a preamplifier and tracking generator extend the instrument's functional range. Connectivity through USB and LAN interfaces, with USBTMC protocol support, allows easy data management including storage and retrieval of waveform data, setups, and screen captures.

Designed for operational temperatures between 0°C and 50°C, the analyser maintains performance in varied industrial environments. Its dimensions of 393 mm length, 116.5 mm width, and 207 mm height, along with a weight of 4.6 kg, deliver a compact and manageable footprint.

This spectrum analyser is ideal for applications in industrial, laboratory, telecommunications, and research environments requiring high precision frequency analysis and signal measurement.

Equipped with a high sensitivity of -161 dBm/Hz displayed average noise level for precise signal analysis. Features low phase noise of -98 dBc/Hz at 10 kHz offset ensuring high signal integrity measurement. Includes a 10.1 inch TFT LCD colour display with 1024 x 600 pixel resolution for clear visualization.

Supports sweep modes of Single and Continuous with span setting modes for versatile operation. Standard preamplifier and tracking generator included for enhanced signal generation and reception. Connectivity options include USB and LAN with USBTMC support to store and recall data efficiently.

Operating temperature range from 0°C to 50°C allows use in diverse environments. Compact dimensions with length 393 mm, width 116.5 mm, height 207 mm and weight 4.6 kg for portability. Explore more in the Spectrum Analyser category on EnvMart for compatible instruments and accessories.
