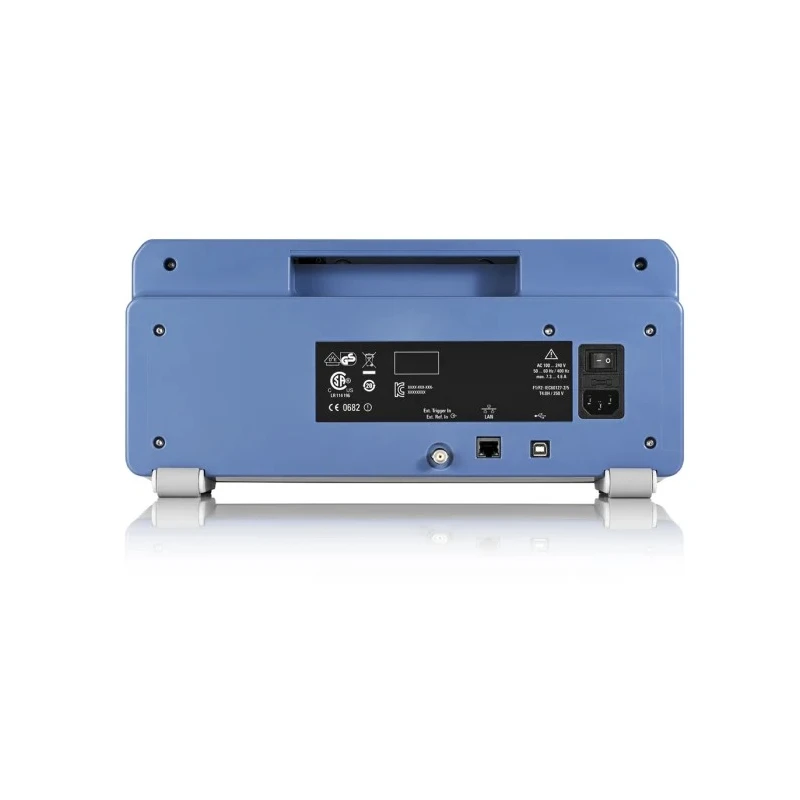

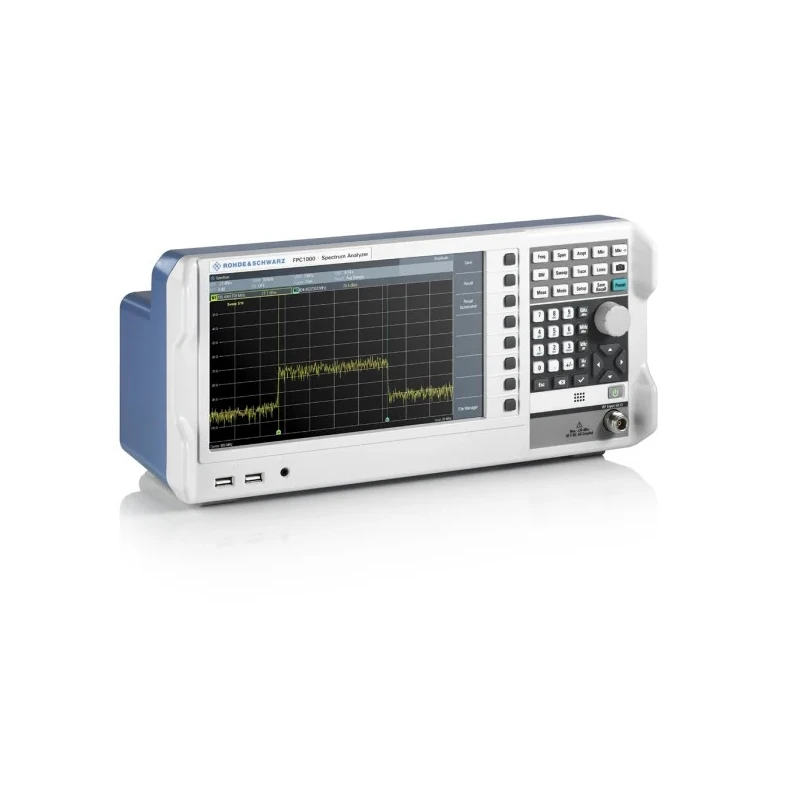

Rohde & Schwarz Desktop Spectrum Analyser 3 GHz Bandwidth 10.1 in WXGA Display FPC1000

Rohde & Schwarz FPC1000 Desktop Spectrum Analyser (Model FPC1000) is a professional-grade measuring instrument offering a bandwidth of up to 3 GHz with a 10.1-inch WXGA (1366 x 768 pixels) display. The device supports high dynamic range signal analysis from 5 kHz minimum to 3 GHz maximum frequency, making it suitable for a broad range of electromagnetic spectrum measurements and diagnostic applications.

Equipped with an extraordinarily low noise floor of -150 dBm, the analyzer combines high sensitivity with the capability to measure high power input signals up to +30 dBm (1 watt). Resolution bandwidth settings down to 1 Hz allow detailed resolution of spectral details, essential for precise frequency domain measurements.

The FPC1000 series includes a wide range of software upgrade options such as modulation analysis, receiver mode, and advanced measurements, enabling flexible functionality for diverse testing scenarios. This model supports wired Ethernet LAN and USB 2.0 ports for data storage and peripheral connectivity, as well as wireless WiFi control via Smart Wireless software and iOS/Android mobile applications, facilitating remote management and measurement.

Compact and designed for desktop operation, the unit measures 396 mm in length, 156 mm in width, and 185 mm in height, with a gross weight of approximately 3 kg, promoting portability within lab or production environments. Its rugged construction and compliance with multiple international standards (EN 60068264, UL 610101, CSA, MILPRF28800F Class 2, VDE, IEC 610101) ensure reliability in demanding industrial and educational settings.

With a temperature operating range from 10°C to 40°C, the FPC1000 is engineered to perform in a variety of ambient conditions encountered in industrial, laboratory, manufacturing, and research applications. It supports N connector RF input and includes a 3-pin global plug type, simplifying integration into existing setups.

This product bundle includes multiple frequency upgrades extending coverage from 1 GHz to 3 GHz, a preamplifier for enhanced sensitivity, and additional software packages enhancing analytical capabilities. The FPC1000 spectrum analyzer series represents a highly capable and modular test instrument ideal for education, production testing, basic research, and field service diagnostics.

Operates over a wide frequency range with high resolution and dynamic range. Supports advanced software features for modulation and receiver analysis. Enables remote control through wireless and app-based interfaces. Compact desktop form factor suitable for various industrial and lab environments.

Complies with critical international safety and performance standards. Explore Rohde & Schwarz products at EnvMart for high-quality signal analysis solutions.
