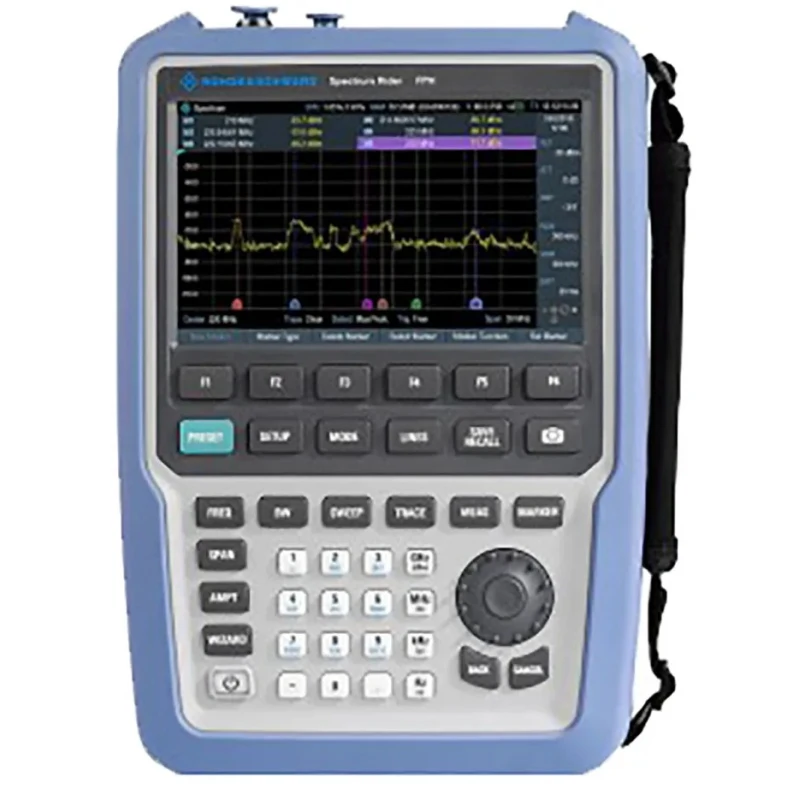

Rohde & Schwarz Handheld Spectrum Rider Spectrum Analyser 5 kHz-2 GHz, Battery Lithium-ion, 8h Life FPH

Rohde & Schwarz FPH Handheld Spectrum Rider Spectrum Analyser provides spectrum analysis from 5 kHz to 2 GHz with optional software upgrades to 3 GHz or 4 GHz. It combines rugged and lightweight construction with a user-friendly capacitive touchscreen, making it ideal for both laboratory diagnostics and field operations.

This instrument weighs 2.5 kg and features a large WVGA color display with touch and gesture support for intuitive operation. It is designed for outdoor use with a non-reflective screen and a backlit keypad, ensuring visibility in various lighting conditions. The ruggedized housing meets MIL‑PRF‑28800F Class 2 requirements, guaranteeing reliability under tough conditions.

The FPH supports peak hold and continuous sweep modes with a single marker and convenient span setting modes. Connectivity options include RJ45 10/100 Base-TX and USB interfaces. It uses an N connector for RF input and operates within a temperature range of -30°C to 60°C, suitable for diverse environmental conditions.

Key features include an 8-hour Lithium-ion battery life for prolonged field deployment and a measurement wizard to speed up tasks and reduce operational errors. The spectrum analyser is suitable for varied industries such as aerospace, defense, wireless communications, broadcasting, spectrum regulation, and education.

Accessories supplied include a lithium-ion battery pack, USB cable, AC power supply with country-specific adapters, R&S InstrumentView software on CD-ROM, documentation, quick start guide, and a side strap for portability.

Overall, the Rohde & Schwarz Spectrum Rider FPH is a versatile solution for reliable spectrum analysis with excellent RF performance in a portable, rugged package. Its industry-oriented options and software upgrades make it a cost-efficient and future-proof measuring instrument.

Compact, lightweight design weighing 2.5 kg for easy field mobility. Large 800 x 480 pixel touchscreen with WVGA display and gesture control. Rugged housing compliant with MIL‑PRF‑28800F Class 2 standards for durability.

Supports frequency upgrades up to 4 GHz via software keycode. Battery-powered with 8-hour operation for extended field use. Multiple sweep modes including Peak Hold and Continuous for versatile measurement. Wide operating temperature range from -30°C to 60°C for harsh environments.

Supports EMI debugging with optional near-field probes. Equipped with N connector RF input and RJ45, USB interfaces. Includes measurement wizard to facilitate fast campaigns and minimize errors. Discover more advanced Spectrum Analysers and measurement instruments at EnvMart for your industrial and laboratory needs.
