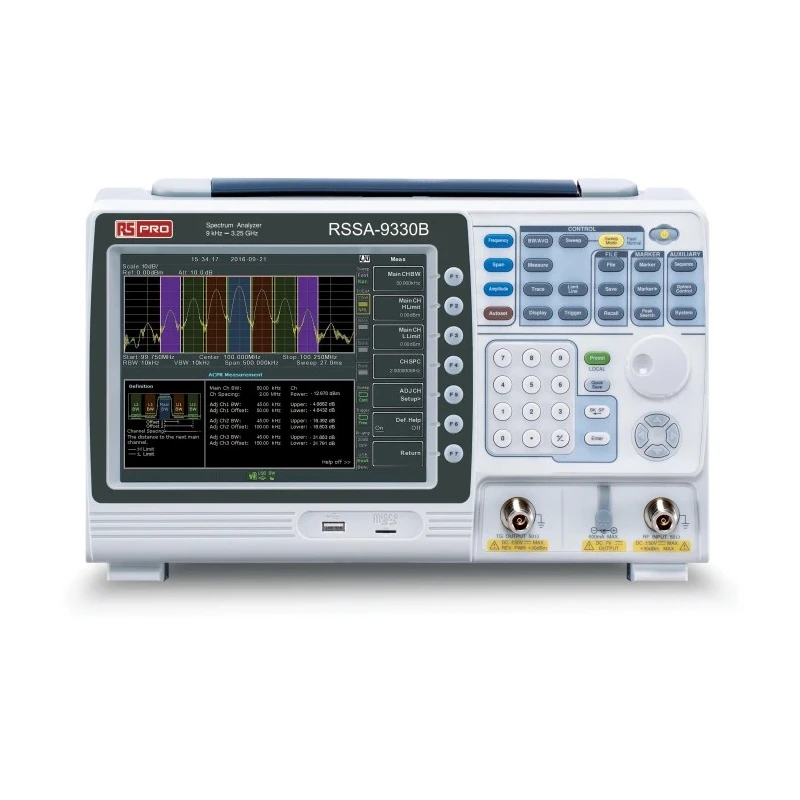

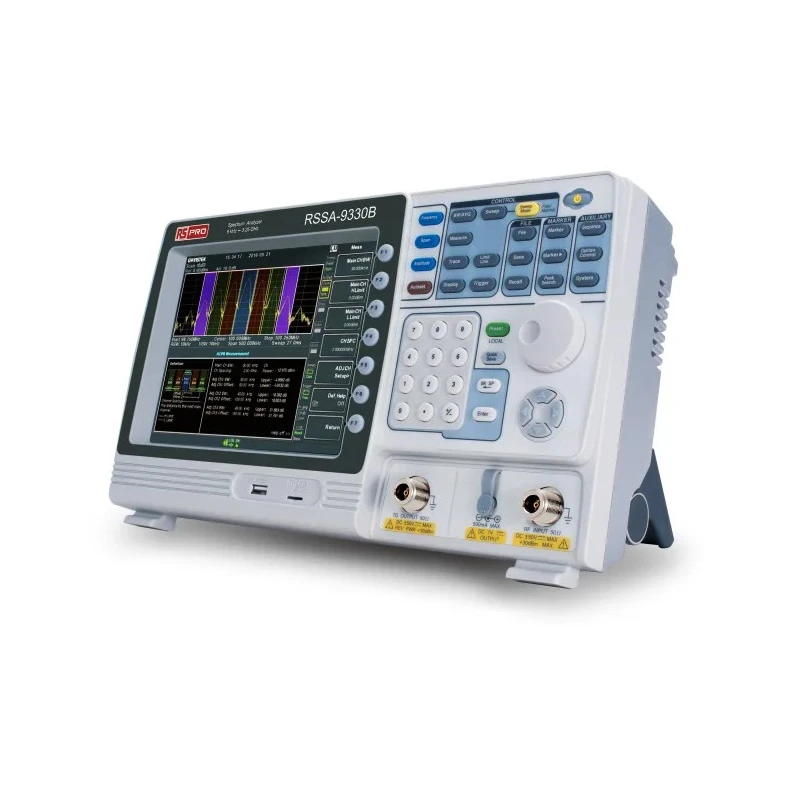

RS PRO Desktop Spectrum Analyser with Tracking Generator 3 GHz RSSA-9300B TG

RS PRO RSSA-9300B TG Desktop Spectrum Analyser 3 GHz is a high-performance instrument designed for precise analysis of RF, radio frequency, and audio signals across a broad frequency range from 9 kHz to 3 GHz. Engineered for reliability and ease of use, it meets the needs of professionals in sound engineering, RF engineering, geology, astronomy, and biochemistry.

This durable and lightweight analyser features advanced capabilities such as auto wake-up, sequence function, and limit line testing that support detailed signal investigations and compliance testing. The tracking generator function enhances the device’s versatility, enabling it to perform as a scalar network analyser by measuring circuit response.

The device includes a built-in preamplifier and 50 dB attenuator, delivering a sensitivity of -149 dBm/Hz when the preamp is enabled. It supports a wide range of analysis modes including P1dB point, harmonic, channel power, and multiple bandwidth measurements, paired with spectrogram, topographic, and dual-view display options for comprehensive visualization.

Connectivity options include LAN, GPIB, USB, and RS-232 interfaces, allowing remote operation through the SpectrumShot software suite. Built-in AM/FM demodulation and sophisticated power measurements further expand its application scope.

Designed to operate reliably within an ambient temperature range of -20°C to +70°C and carrying CE certification, the RSSA-9300B TG is a dependable addition to any laboratory or industrial test setup. Its compact form factor (350 mm length, 100 mm width, 210 mm height) and 4.5 kg weight facilitate ease of placement and transport.

Package contents include the RS PRO RSSA-9300B Spectrum Analyser, power cord, calibration certificate, and a CD-ROM containing Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide, and IVI Driver, ensuring a comprehensive setup for immediate application.

This analyser is ideal for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial environments requiring detailed RF spectrum analysis.

Explore a wide range of spectrum analysers and related equipment at EnvMart to find the suitable instrument for your technical requirements. The Spectrum Analyser covers a 9 kHz to 3 GHz frequency range for versatile usage.

Features include auto wake-up, sequence function, and limit line testing for enhanced analysis. The integrated tracking generator enables scalar network analysis capabilities. Equipped with a built-in preamplifier, 50 dB attenuator, and RBW from 1 Hz to 1 MHz for accurate measurements.

Supports remote control via LAN, USB, RS-232 interfaces with SpectrumShot software. Includes built-in AM/FM demodulation and advanced signal measurement functions for comprehensive spectrum evaluation. Operates over a temperature range from -20°C to +70°C with CE certification compliance.

Compact desktop design measuring 350 x 100 x 210 mm and weighing 4.5 kg for easy deployment.
