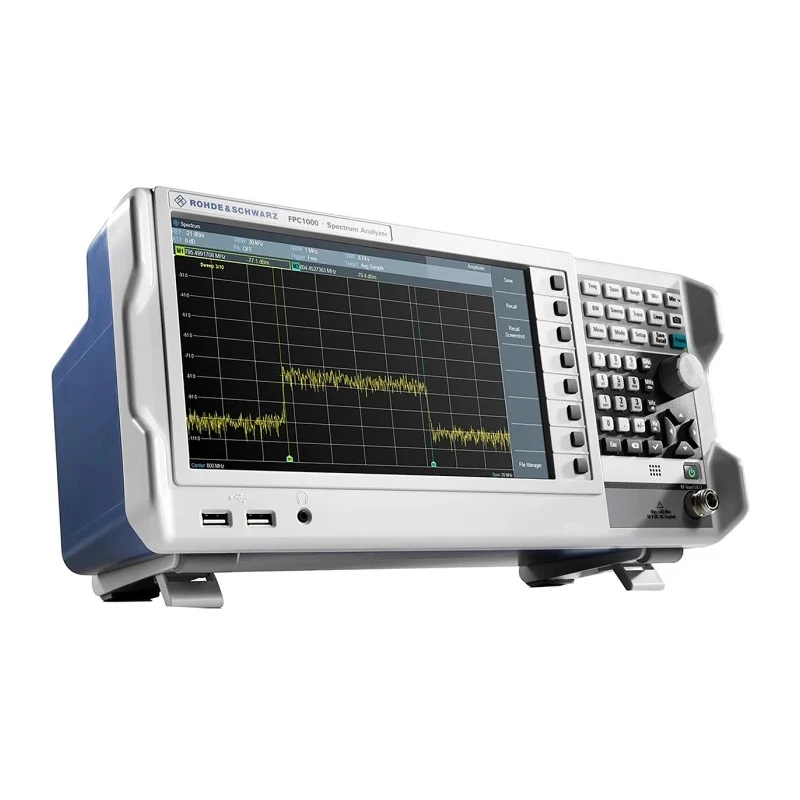

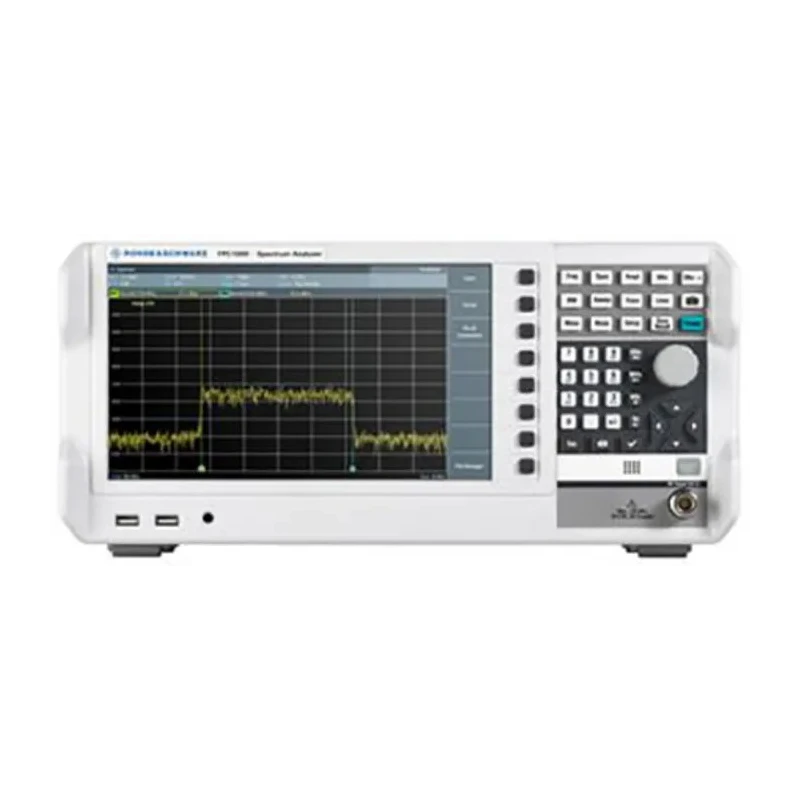

Rohde & Schwarz Desktop FPC1000 Spectrum Analyser 5 kHz to 3 GHz Bandwidth 3000000 kHz Model FPC-P3

Rohde & Schwarz FPC-P3 Desktop FPC1000 Spectrum Analyser is a high-performance measuring instrument designed for precise spectrum analysis in telecommunications, electronics laboratories, educational institutes, and electronic design sectors. It operates across a frequency range of 5 kHz to 3 GHz, providing a bandwidth of 3000000 kHz enabling detailed frequency spectrum observation.

This desktop Spectrum Analyser boasts a large 10.1 inch LCD screen with 26% larger display size and 160% higher resolution than comparable instruments, enhancing visibility of spectral details. The device incorporates six multi-coloured markers that improve signal detection and analysis clarity.

Its rugged build supports operation temperatures between 10°C and 40°C, suitable for various industrial and laboratory environments. The analyser supports multiple interfaces including USB 2.0 for data storage and accessory connection, wired Ethernet, and wireless Wi-Fi for remote controlling and measurements through smart devices.

The FPC-P3 achieves an exceptionally low noise floor of -150 dBm and can measure signals with power levels up to 30 dBm (1 watt) making it ideal for high precision RF testing. The RF input uses an N connector ensuring reliable signal integrity. It also supports optional measurement modes such as receiver mode, modulation analysis, and advanced measurements.

Included features also comprise a headphone jack and audio speaker for audio-related diagnostics, along with soft menu selections and measurement setup buttons for streamlined operations. Boot time is approximately 15 seconds, facilitating quick readiness for field or lab use.

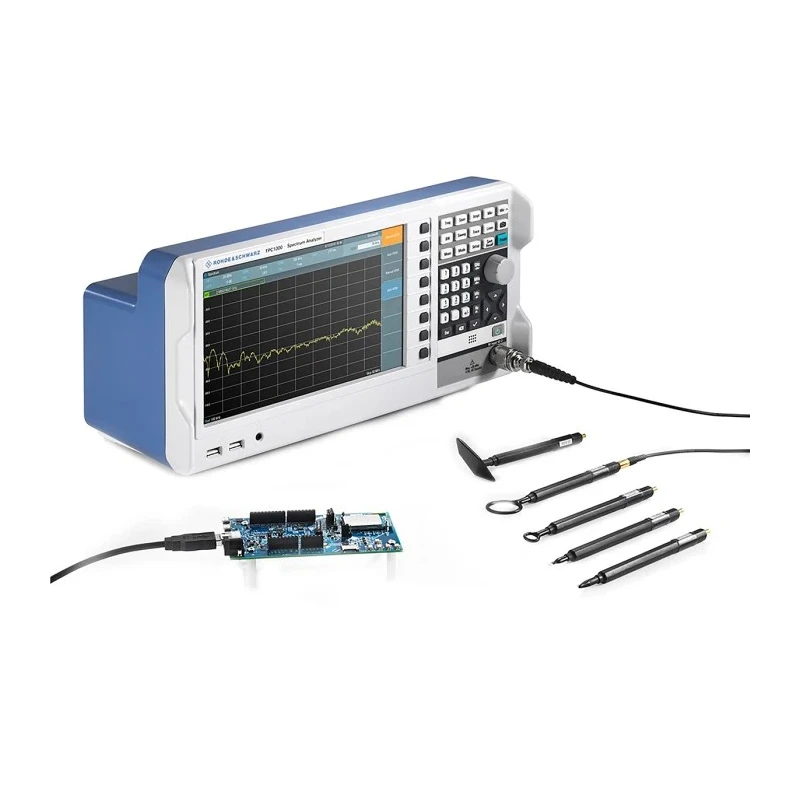

Optional accessories enhance usability and transportability including a 19-inch rackmount kit, near field probes spanning 30 MHz to 3 GHz, frequency range amplifier from 100 kHz to 3 GHz, and a soft carrying case suiting mobile applications.

Designed for industrial, laboratory, telecommunications, and maintenance applications, this analyser delivers reliable and accurate RF measurement with robust construction and advanced software control including R&S InstrumentView for Windows and R&S MobileView app support.

A key offering from Rohde & Schwarz, the FPC-P3 ensures compliance with global quality and safety standards including VDE, CSA NRTL, UL 61010-1, IEC 61010-1, EN 61010-1, and MIL-PRF-28800F Class 2 certification, providing peace of mind through rigorous testing. This product is crafted in Czech Republic and backed by a 3-year standard warranty.

Explore the broad Rohde & Schwarz range of spectrum analyzers and associated test equipment available at EnvMart for professional measurement solutions. Features an LCD display with a 10.1 inch screen sized 185mm height, 156mm width, and 396mm length.

Operates within a temperature range of 10°C to 40°C for versatile environments. Includes USB 2.0 interface for convenient connectivity and data transfer. Supports six vivid markers displayed in different colours for enhanced analysis.

Capable of measuring high-power signals up to 30 dBm (1W) with low noise floor of -150 dBm. Equipped with an N connector RF input and supports wired Ethernet and Wi-Fi connectivity. Operated via Smart Wireless remote software with App support for iOS and Android platforms.

Compliant with multiple international standards including VDE, CSA, UL, and MIL-PRF-28800F Class 2. Includes optional accessories like rackmount kit, near field probes, amplifier and a soft carrying case. Comes with a 3-year standard warranty ensuring product reliability and performance.
