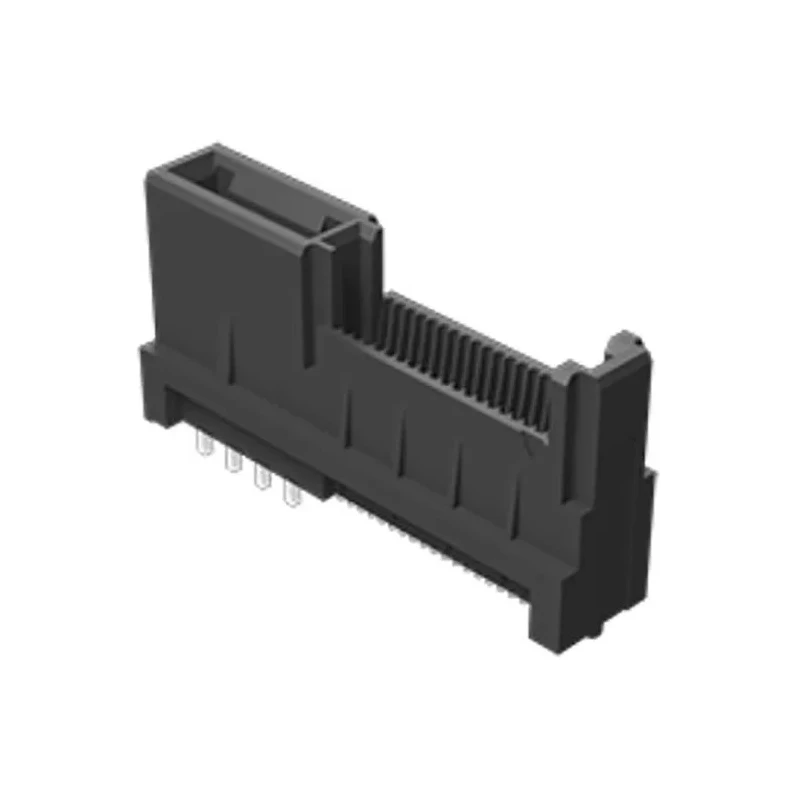

Samtec Right Angle Edge Connector Female, Surface Mount, 80 Contacts, 0.8 mm Pitch, 2 Row, Solder, Liquid HSEC8-140-01-S-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.6A |
| Model | HSEC8-140-01-S-RA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-140-01-S-RA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Card Slot | .062" (1.60 mm) |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- The connector features a right angle orientation suitable for compact PCB layouts.
- It supports a current rating of 2.6 A ensuring reliable power transmission.
- The housing is made of liquid crystal polymer providing durability and thermal stability.
- Contact material is beryllium copper alloy with gold plating for excellent conductivity.
- Operates effectively between -55°C and 125°C temperature range.
- Designed for PCIe card type with a card thickness of 1.6 mm.
- Termination type is solder ensuring secure connection to PCB.
- Suitable for industrial, electronic equipment, and communication applications.
Product Description
Samtec HSEC8-140-01-S-RA is a high-quality right angle edge connector female, designed specifically for surface mounting on printed circuit boards. Featuring 80 gold-plated contacts arranged in two rows with a pitch of 0.8 mm, this connector ensures robust electrical performance and mechanical stability.
The connector supports a current rating of 2.6 amperes and operates reliably within a broad temperature range from -55°C up to 125°C, making it suitable for demanding industrial environments. Its contact material, beryllium copper alloy with gold plating, offers excellent conductivity and corrosion resistance, enhancing the longevity of the connection.
Constructed with a durable liquid crystal polymer housing, this connector supports PCIe card types and accommodates card thickness of 1.6 mm. The solder termination type provides a secure and reliable soldered connection to your PCB assembly.
Additional features include an optional weld tab that enhances mechanical strength and rugged Edge Rate® contact technology, supporting both single-ended and differential pairs. It also offers an optional pass-through variant (HSEC8-PE) and mechanical options such as board locks and cable latching features to secure your assemblies in place.
This Edge Connector is ideal for use in industrial electronics, telecommunications, computer hardware, and other manufacturing and assembly applications requiring high-speed signal integrity and mechanical reliability.
The connector features a right angle orientation suitable for compact PCB layouts. It supports a current rating of 2.6 A ensuring reliable power transmission. The housing is made of liquid crystal polymer providing durability and thermal stability.
Contact material is beryllium copper alloy with gold plating for excellent conductivity. Operates effectively between -55°C and 125°C temperature range. Designed for PCIe card type with a card thickness of 1.6 mm. Termination type is solder ensuring secure connection to PCB.
Suitable for industrial, electronic equipment, and communication applications. Optional mechanical features include weld tab and cable latching for enhanced reliability. Explore our selection of connectors and electronic components at EnvMart for reliable industrial and laboratory-grade parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.6 amperes, ensuring reliable power transmission.
The contacts in this connector are arranged with a pitch of 0.8 mm.
It operates effectively within a temperature range of -55°C to 125°C.
The housing is made of liquid crystal polymer, while the contacts are made from beryllium copper alloy with gold plating for excellent conductivity.
This model features a total of 80 contacts arranged in two rows.
The termination type for this connector is solder, ensuring a secure connection to the PCB.
It is designed for PCIe card types with a card thickness of 1.6 mm.
This connector features a right angle orientation, making it suitable for compact PCB layouts.
It is suitable for industrial electronics, telecommunications, computer hardware, and other applications requiring high-speed signal integrity.
Optional features include a weld tab for enhanced mechanical strength and cable latching for securing assemblies.
The connector is manufactured in India.
This edge connector has a female connector gender.
