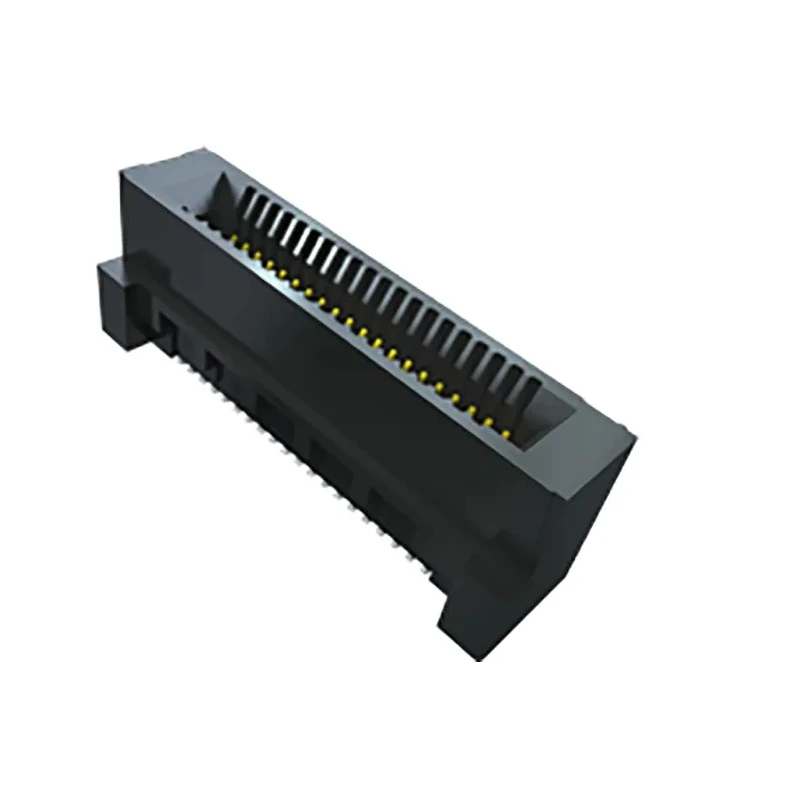

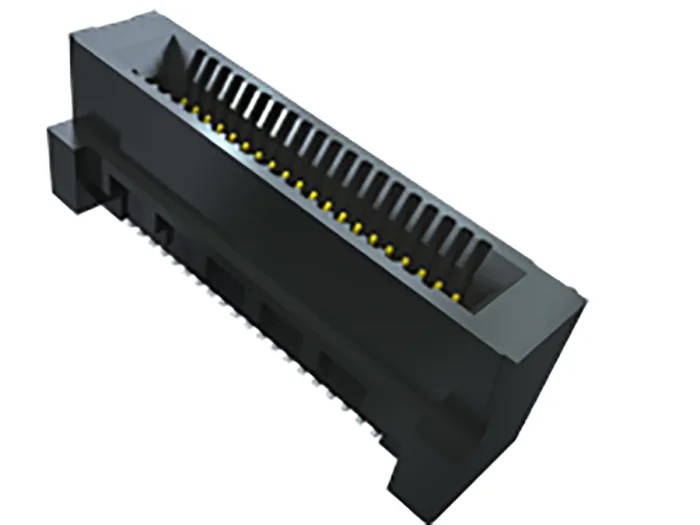

Samtec Vertical Edge Connector, Female, Surface Mount, 40 Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Edge Connector, Female, Surface Mount, 40 Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-DV

Name: Samtec Vertical Edge Connector, Female, Surface Mount, 40 Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-DV
Brand: Samtec
SKU: 82058
Price: 4.37 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	Costa Rica
Voltage	240V
Brand	Samtec
Orientation	Vertical
Current	2.8A
Model	HSEC8-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HSEC8-DV
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Card Slot	.062" (1.60 mm)
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

Designed for reliable surface-mount installation in electronics and PCB assemblies.
Features gold-plated beryllium copper alloy contacts for enhanced conductivity and durability.
Accommodates 1.6 mm card thickness, suitable for standard edge connector slots.
Offers high-speed performance supporting up to 28+ Gbps signal rates for advanced applications.
Supports operating temperatures from -55°C to 125°C, ensuring durability in industrial conditions.
Optional board locks, weld tabs, and cable latching features provide mechanical stability.
Card slot of 0.062 inch (1.60 mm) for secure PCB connection.
Female connector gender with 2 rows, ideal for double-sided PCB interfacing.

Product Description

The Samtec HSEC8-120-01-S-DV-A is a high-performance vertical edge connector engineered for advanced PCB interconnections in electronics. Featuring a female configuration and surface-mount installation, this connector delivers dependable connectivity with 40 gold-plated beryllium copper alloy contacts arranged in two rows at a 0.8 mm pitch. Designed for solder termination, it is ideal for high-density circuit boards, signal transmission, and commercial electronics manufacturing.

This edge connector accommodates cards with a thickness of 1.6 mm, utilizing a rugged Edge Rate contact system to provide reliable electrical performance. The series supports both single-ended and differential pair signals and is capable of handling high-speed applications up to 28+ Gbps, making it suitable for data communication, industrial automation, and laboratory instrumentation.

The connector’s housing is crafted from liquid crystal polymer, providing strong resistance to heat and chemicals. An optional weld tab and board lock further enhance mechanical strength and stability during operation. Advanced board-level features such as cable latching and pass-through options improve integration flexibility for complex systems.

With operating temperature range from -55°C to 125°C, voltage rating of 240V, and current capability of 2.8A, the Samtec HSEC8-120-01-S-DV-A guarantees safe and durable performance under demanding conditions. Applications span electronics manufacturing, industrial signal interfacing, commercial hardware integration, and laboratory setups requiring robust edge connectivity.

The connector meets industry requirements for quality signal integrity, extended life product reliability, and fast installation with solder mounting. Its female gender and double-row configuration allow easy interfacing with compatible card slots for dual-sided PCB designs.

Browse more vertical Edge Connectors in the Electronics & Electricals category or explore Samtec’s edge connectivity solutions for advanced electronics projects at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports high-speed performance with signal rates of up to 28+ Gbps, making it suitable for advanced applications.

It operates within a temperature range of -55°C to 125°C, ensuring functionality in various industrial conditions.

This edge connector is designed to accommodate a card thickness of 1.6 mm, suitable for standard edge connector slots.

It features 40 contacts arranged in two rows, providing ample connectivity for various applications.

The housing is made from liquid crystal polymer, while the contacts are constructed from gold-plated beryllium copper alloy for enhanced conductivity.

This model utilizes solder termination, making it suitable for high-density circuit boards and reliable electrical connections.

It has a voltage rating of 240V and a current capability of 2.8A, ensuring safe performance under demanding conditions.

The contacts are arranged at a pitch of 0.8 mm, facilitating compact and efficient PCB design.

Yes, optional board locks, weld tabs, and cable latching features are available to enhance mechanical stability during operation.

The connector is designed for vertical orientation, which is suitable for specific PCB layouts and space constraints.

This connector is ideal for electronics manufacturing, industrial signal interfacing, and laboratory setups requiring robust edge connectivity.

The connector is manufactured in Costa Rica, ensuring compliance with industry standards.
