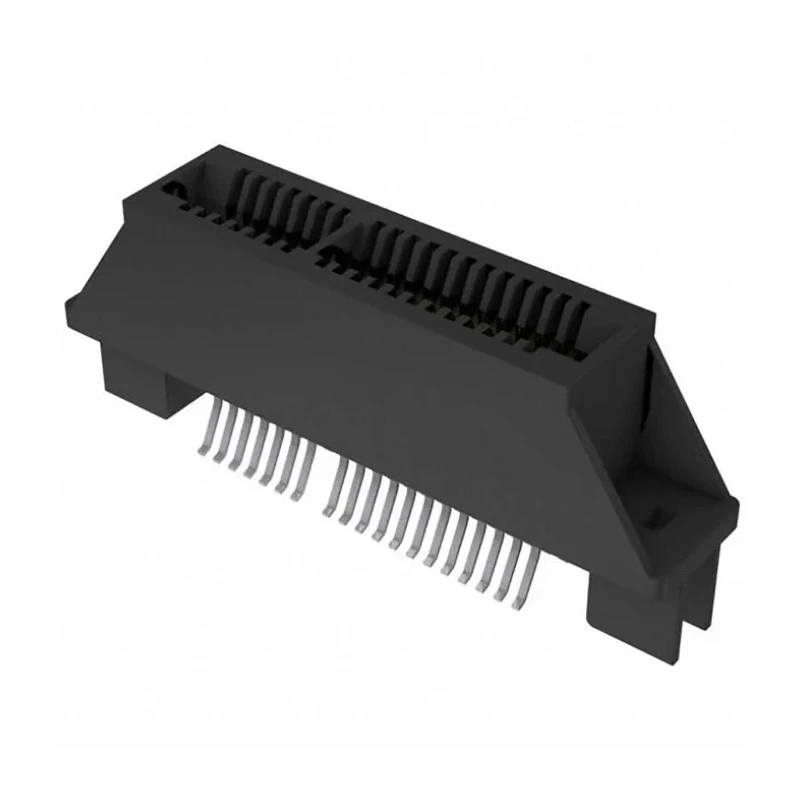

Samtec MEC1 Series Vertical Edge Connector Surface Mount 40 Contacts 1 mm Pitch 2.2A 1 Row

Free Delivery in India | Lowest Global Shipping Charges

Samtec MEC1 Series Vertical Edge Connector Surface Mount 40 Contacts 1 mm Pitch 2.2A 1 Row

Name: Samtec MEC1 Series Vertical Edge Connector Surface Mount 40 Contacts 1 mm Pitch 2.2A 1 Row
Brand: Samtec
SKU: 83877
Price: 6.47 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Vertical
Current	2.2A
Model	MEC1
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	MEC1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Card Type	Edge
Card Thickness	1.6mm
Insulator Material	black LCP

Key Features

Features 40 contacts with 1 mm pitch for efficient signal routing.
Delivers a maximum current rating of 2.2A per contact for robust performance.
Utilizes phosphor bronze contacts plated with gold to ensure optimal conductivity and durability.
Supports a single row vertical orientation, ideal for edge card and PCB integration.
Accommodates card thickness up to 1.6 mm and operates between -55°C and 125°C.
Female contact gender and surface-mount termination provide flexible installation options.
Constructed with liquid crystal polymer housing and black LCP insulator for chemical and thermal stability.
Rated at 250V voltage for versatile electronic applications.

Product Description

Samtec MEC1-120-02-F-D-EM2 is a vertical edge connector designed to meet demanding requirements in electronic circuitry, offering a high-density surface-mount interface for signal and power transmission. Engineered with 40 precision contacts at 1 mm pitch, it facilitates reliable and efficient PCB connections in tight spaces. The connector supports surface-mount (SMT) termination, simplifying assembly and maintaining secure linkage on PCB edges.

The MEC1 series features phosphor bronze contacts plated with gold, maximizing both electrical conductivity and resistance to corrosion. This ensures stable performance even under extended operational cycles. A single row configuration allows for straightforward integration into various edge card or PCB layouts, supporting card thicknesses up to 1.6 mm.

With a rated current of 2.2A per contact and voltage of 250V, this connector is suitable for power and signal requirements typical in computing, industrial automation, telecommunications, and laboratory equipment. It withstands extreme temperatures, with an operating range of -55°C to 125°C, allowing deployment in environments with thermal fluctuations.

Construction uses liquid crystal polymer for housing and a black LCP insulator, chosen for chemical inertness and mechanical strength. The female contact gender further expands compatibility for diverse PCB mating applications. Gold-plated contacts reduce insertion loss and maintain signal integrity.

Industry applications include industrial electronics, PCB manufacturing, laboratory instrumentation, telecommunications, and computing solutions. Suitable for boards requiring densely packed connectors, reliable solderability, and extended lifecycle robustness.

Discover more Edge Connectors and advanced PCB solutions from Samtec in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a maximum current rating of 2.2A per contact, making it suitable for robust performance in various applications.

The contacts in this connector are spaced at a 1 mm pitch, allowing for efficient signal routing in tight spaces.

It is rated for a maximum voltage of 250V, which supports a variety of electronic applications.

The connector features phosphor bronze contacts plated with gold for optimal conductivity, and it is housed in liquid crystal polymer for chemical and thermal stability.

This unit operates effectively within a temperature range of -55°C to 125°C, making it suitable for environments with significant thermal fluctuations.

It utilizes solder termination, which simplifies the assembly process on printed circuit boards (PCBs).

This model features 40 contacts, providing a high-density connection for signal and power transmission.

It can accommodate card thicknesses of up to 1.6 mm, allowing for versatile integration with edge cards.

This connector is designed for vertical orientation, facilitating easy integration into various PCB layouts.

The connector features a female contact gender, which expands compatibility with diverse PCB mating applications.

The connector is manufactured in India, ensuring adherence to specific regional standards.

This series is suitable for applications in industrial electronics, telecommunications, computing, and laboratory instrumentation, where reliable connections are essential.
