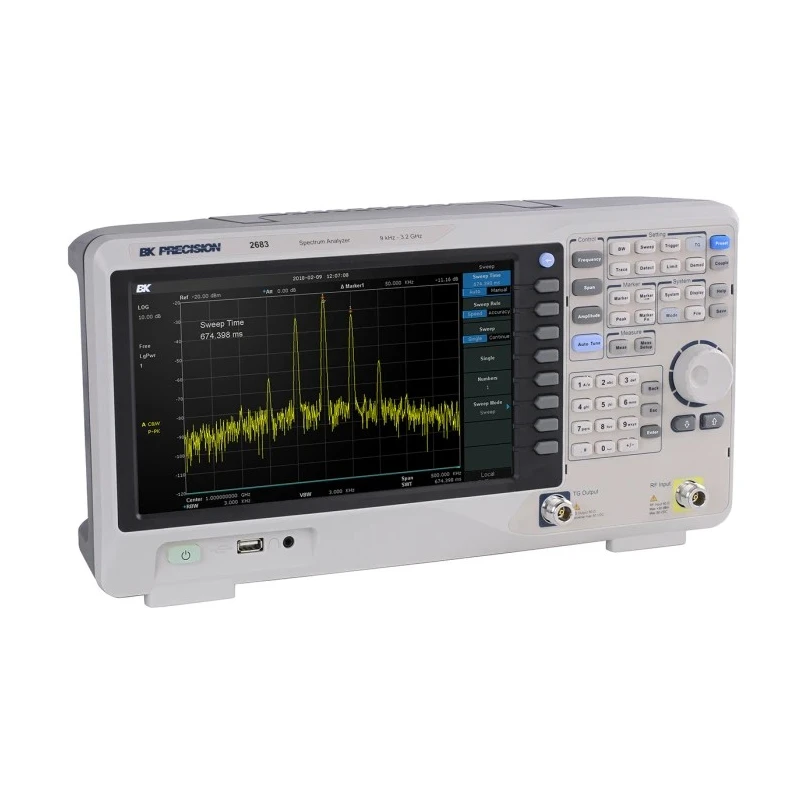

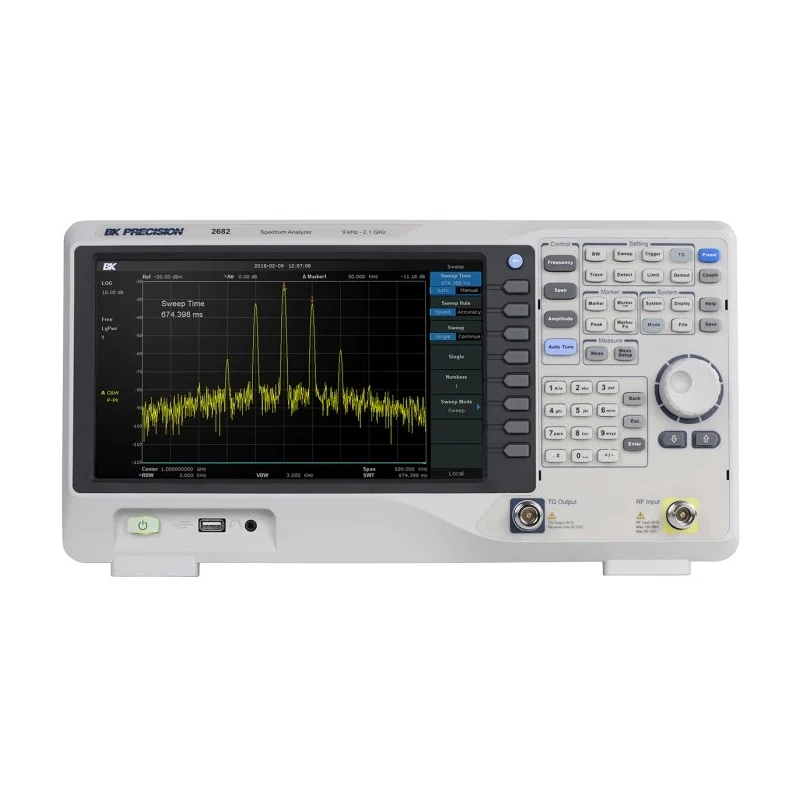

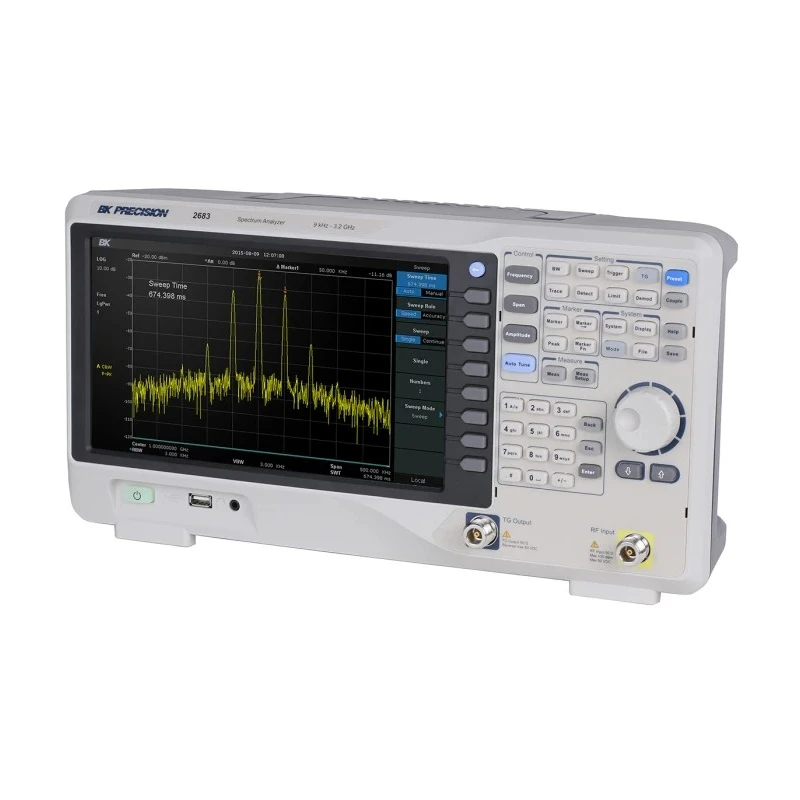

BK Precision 2680 Spectrum Analyser 2.1 GHz BK2682

BK Precision BK2682 Spectrum Analyser 2.1 GHz is a precision instrument designed for analyzing a wide range of radio frequencies from 9 kHz up to 2.1 GHz. This model offers high sensitivity with a displayed average noise level of -161 dBm/Hz and low phase noise of -98 dBc/Hz at a 10 kHz offset, which ensures accurate measurement of weak signals in industrial, laboratory, manufacturing, and communications testing environments. The preamplifier and tracking generator come standard, enhancing its signal analysis capabilities.

The device features a 10.1-inch TFT LCD full-color display with 1024 x 600 pixel resolution, providing clear and detailed spectral visualizations. Its bandwidth and frequency sweep modes accommodate continuous and single settings with maximum frequency capabilities at 2.1 GHz. The analyser utilizes a BNC RF input interface and is equipped with USB and LAN ports to facilitate easy connectivity, remote control, and data storage. The USB host port supports storage and recall of waveform data, setups, and screen captures, enhancing operational efficiency.

Its compact footprint with dimensions of 393 mm length, 116.5 mm width, and 207 mm height supports benchtop applications while maintaining portability. The device operates reliably within a temperature range from 0°C to 50°C and complies with EMC 2014/30/EU and EN 613261:2013 standards, ensuring electromagnetic compatibility and safety. Its robust construction weighing 4.6 kg makes it suitable for demanding industrial and research applications where precision and reliability are essential.

Frequency range from 9 kHz to 2.1 GHz for versatile signal analysis. High sensitivity with a displayed average noise level of -161 dBm/Hz. Low phase noise of -98 dBc/Hz at 10 kHz offset for clear signal distinction. Minimum resolution bandwidth of 1 Hz enhances accuracy in complex environments.

Standard preamplifier and tracking generator included for extended functionality. 10.1-inch high-resolution TFT LCD color display for detailed spectra viewing. LAN and USB TMC connectivity supports remote operation and data management.

USB host port to store waveform data and screen captures securely. Operating temperature range between 0°C and 50°C ensures versatility. Compact dimensions ideal for benchtop placement in laboratories and industrial sites.

Compliance with EMC and EN standards ensures device reliability and safety.

This Spectrum Analyser is well-suited for industrial machines and instruments, research laboratories, HVAC systems testing, manufacturing quality assurance, and water treatment electronics diagnostics. EnvMart offers a comprehensive selection of precision measuring equipment including the BK Precision BK2682 for professional testing and signal analysis needs. Explore related test & measurement instruments and improve your workflow with advanced spectral analysis capabilities.
