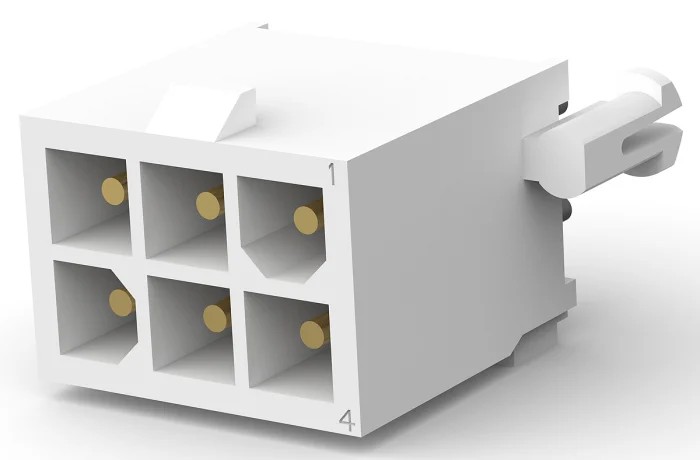

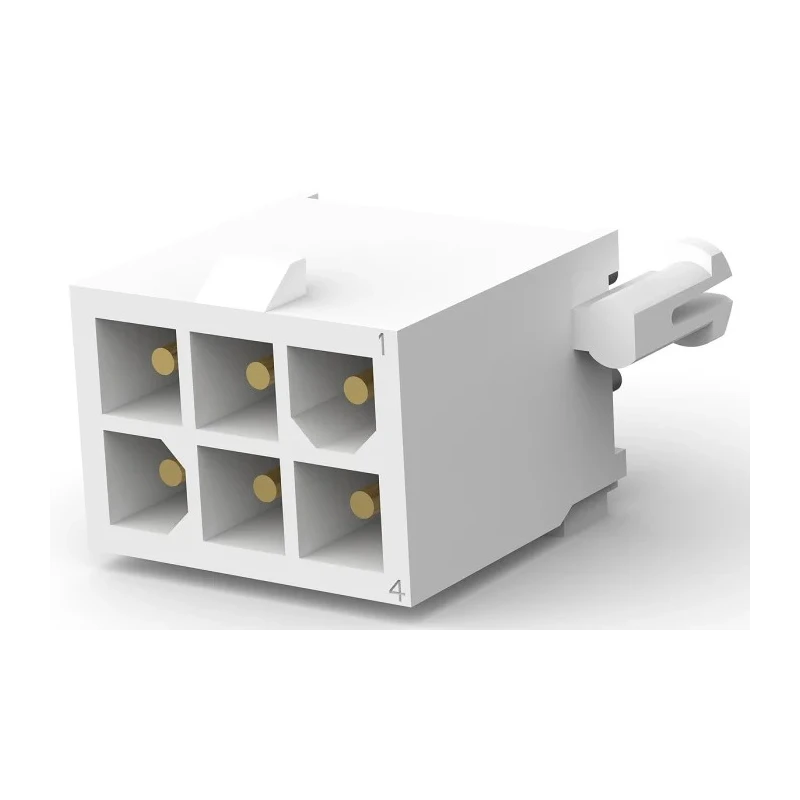

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 6 Contacts 4.14 mm Pitch 2 Row 1-770178-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- This PCB header operates at a voltage rating of 600V and a current rating of 9.5A.
- Constructed with a nylon housing, brass contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Designed with a shrouded connector system and straight orientation for secure and precise mating.
- Tail pins measure 3.69 mm in length supporting through-hole solder mounting for robust mechanical and electrical connections.
- Operating temperature range spans from -55°C to 105°C, suitable for demanding industrial environments.
- This header requires appropriate mating plugs for secure latching, optimizing connection stability.
Product Description
TE Connectivity 1-770178-1 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is engineered for high reliability in wire-to-board applications requiring durable and precise electrical connections. Featuring 6 male contacts spaced at a 4.14 mm pitch in two rows, this connector supports circuits operating at up to 600 volts and 9.5 amperes.
The nylon housing material offers excellent electrical insulation and mechanical strength, while the brass contacts plated with gold enhance conductivity and protect against corrosion and wear. The shrouded design ensures protection against accidental contact and assists in proper alignment during mating.
This component is designed for through-hole mounting and solder termination, providing strong and stable mechanical attachment to printed circuit boards typically used in industrial, electronic, and commercial equipment.
Capable of operating in harsh temperature environments ranging from -55°C to +105°C, it suits applications in automotive electronics, industrial control systems, and other demanding electrical assemblies. Tail pin length of 3.69 mm facilitates easy soldering and ensures contact reliability.
The self-latching connector system requires mating plugs to complete the connection securely, enabling use in systems where vibration or mechanical stress is a concern. TE Connectivity’s MATE-N-LOK series is widely adopted for its durability and versatile applicability in electronics manufacturing, offering confidence in connectivity and performance.
This PCB header supports a current rating of 9.5 amps with a 600V voltage rating. The contact material is brass with gold plating to maximize electrical integrity. Housing of durable nylon material provides insulation and mechanical protection.
The connector is shrouded and designed with a straight orientation for easy installation. With 6 contacts arranged in 2 rows at 4.14 mm pitch, it supports compact circuit designs.
Explore more from TE Connectivity and related PCB Connectors in the Electronics Components category at EnvMart to find the best fit for your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 600V.
This model has a current rating of 9.5A.
The housing is made of nylon, while the contacts are brass plated with gold to enhance conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 105°C.
This header features 6 male contacts arranged in 2 rows.
The contacts are spaced at a pitch of 4.14 mm.
It supports through-hole mounting for robust mechanical and electrical connections.
The tail pins measure 3.69 mm in length, facilitating easy soldering.
This connector is shrouded, which helps protect against accidental contact and assists in proper alignment during mating.
It uses solder termination for secure connections.
This header is suitable for wire-to-board applications in automotive electronics, industrial control systems, and other demanding electrical assemblies.
