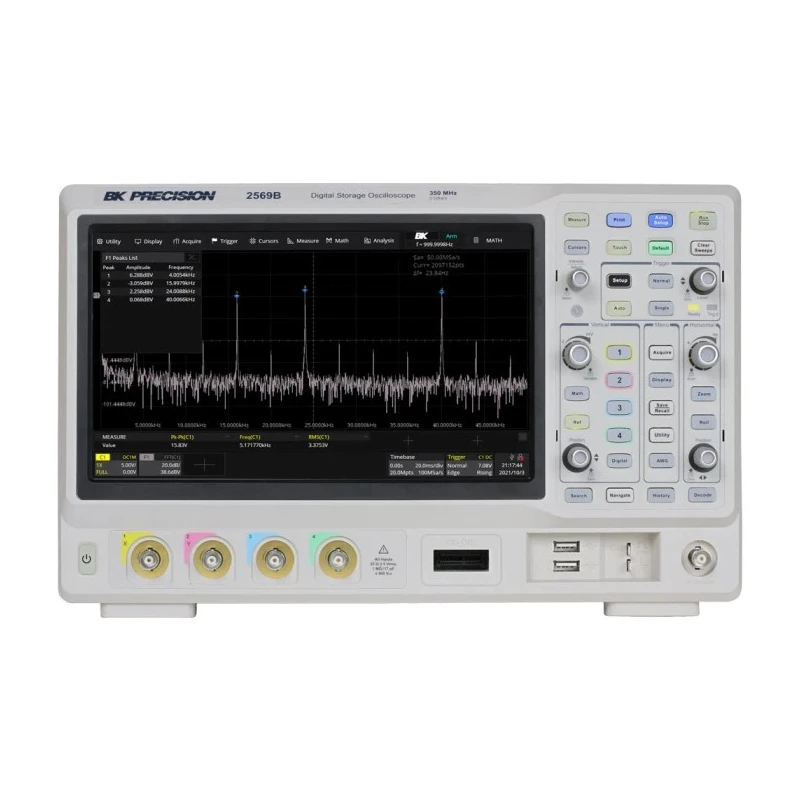

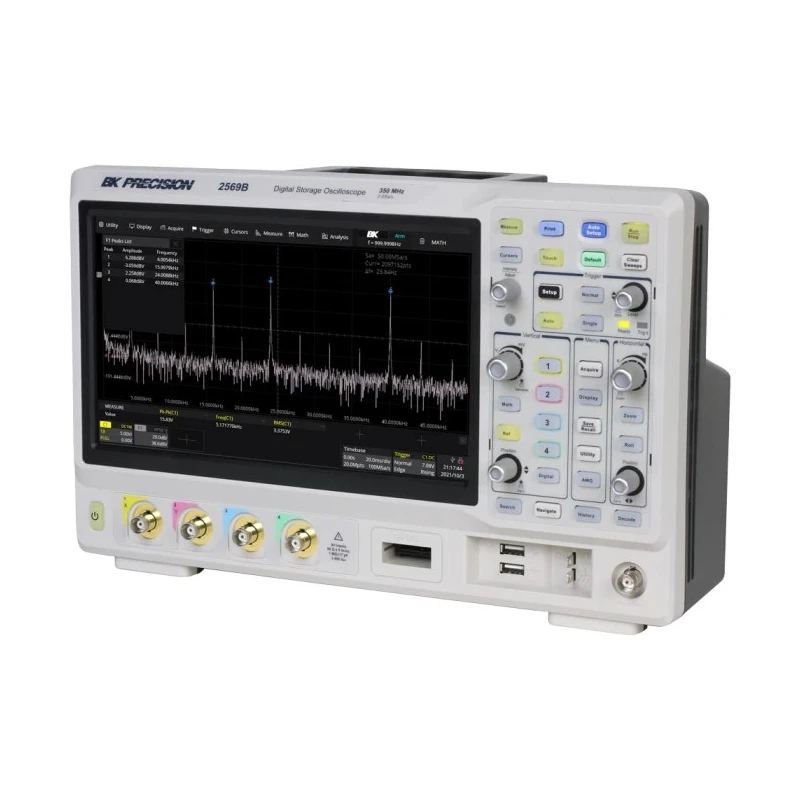

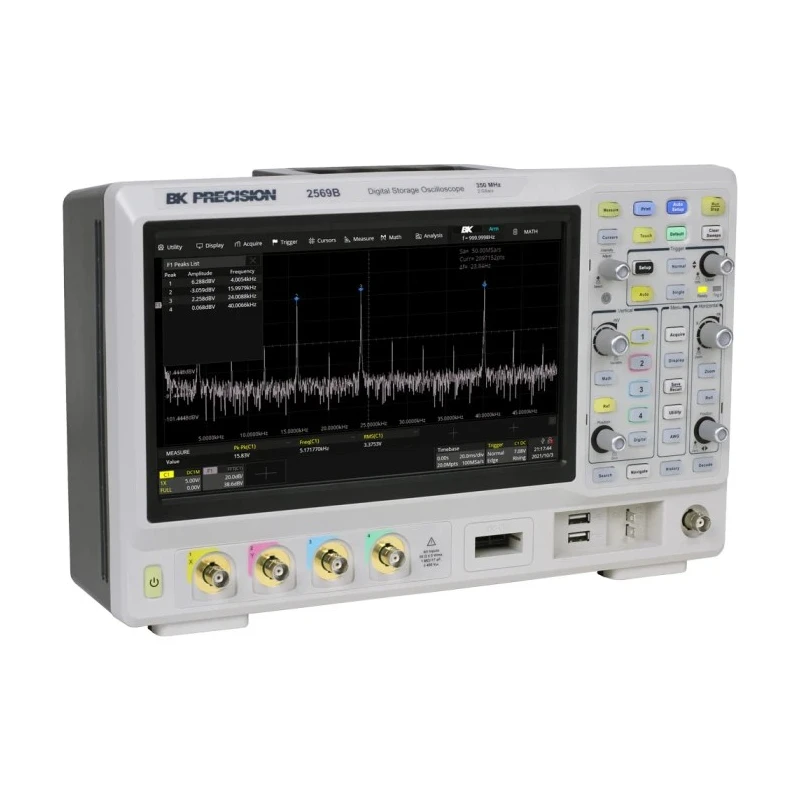

BK Precision 2560B Series 350 MHz 4-Channel Bench Oscilloscope with 10.1 inch Capacitive Touchscreen BK2569B

BK Precision BK2569B is a 350 MHz bandwidth 4-channel bench oscilloscope from the 2560B series, featuring a maximum sample rate of 2 GSa/s and a deep memory depth of 200 Mpts. This bench oscilloscope is equipped with a large 10.1 inch capacitive touchscreen that offers a resolution of 1024 x 600 pixels, providing clear and intuitive visualization of signals with easy touchscreen gestures.

This instrument is designed for comprehensive debugging with software features that include zone triggering, Bode plots, and advanced power analysis which evaluates eleven different power supply parameters. The oscilloscope further supports serial bus decoding for complex protocols like I2C, SPI, UART, CAN, and LIN. Users can upgrade DSO models to MSO models at any time to add 16 digital channels, enhancing mixed-signal measurement capabilities.

The BK2569B includes a 50 MHz arbitrary waveform generator for signal simulation and supports segmented acquisition and history functions capable of storing up to 90,000 waveform frames, beneficial for detailed analysis over time. The math feature allows two trace operations, FFT calculations, and formula editing for precise signal manipulations.

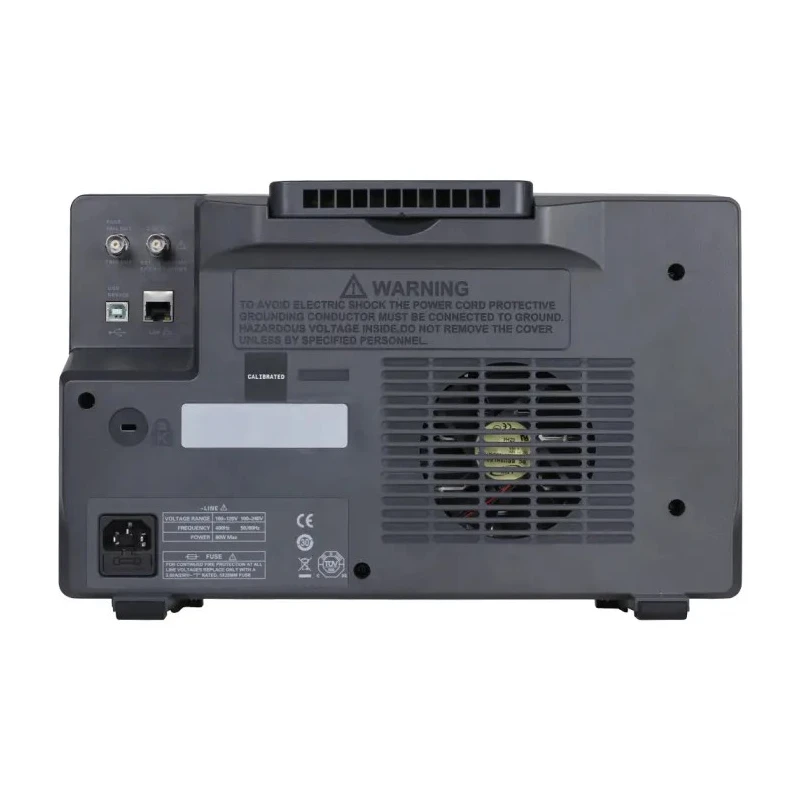

Connectivity is well-supported with standard LAN, a USBTMC-compliant USB device port, and dual USB host ports to facilitate remote control via built-in web server or PC software. Additional capabilities include pass/fail trigger output and external trigger inputs for complex measurement setups.

With a compact form factor measuring 352 mm in width and 224 mm in height, and a vertical resolution of 8 bits, this oscilloscope is apt for demanding industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electronic test environments.

The oscilloscope features a 350 MHz bandwidth and 4 channels suitable for detailed signal analysis. High sample rate of 2 GSa/s combined with deep memory of 200 Mpts enhances measurement precision. Large 10.1 inch capacitive touchscreen display enables user-friendly operation.

Supports multiple serial protocol decodings including CAN, LIN, SPI, I2C, and UART. Includes 50 MHz DDS waveform generator and power analysis functions for broad applications. Upgradeable to MSO with 16 added digital channels for mixed-signal analysis.

Advanced math functions and segmented acquisition improve analysis versatility. Multiple interface options including LAN, USB device, and USB hosts ensure flexible connectivity. Compact size and robust build make it suitable for various industrial and laboratory uses.
