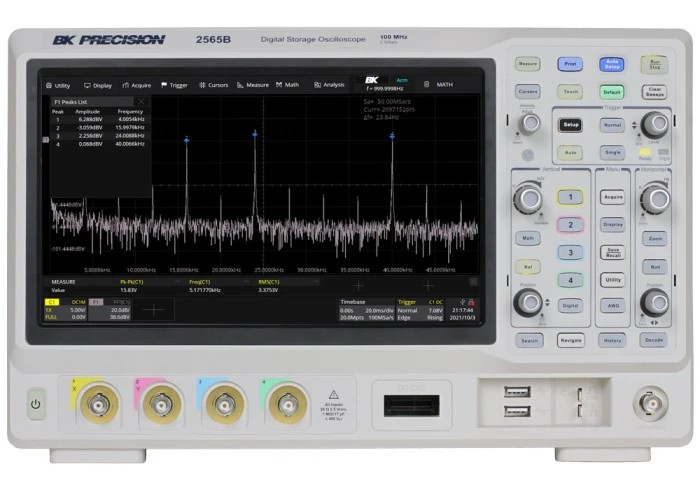

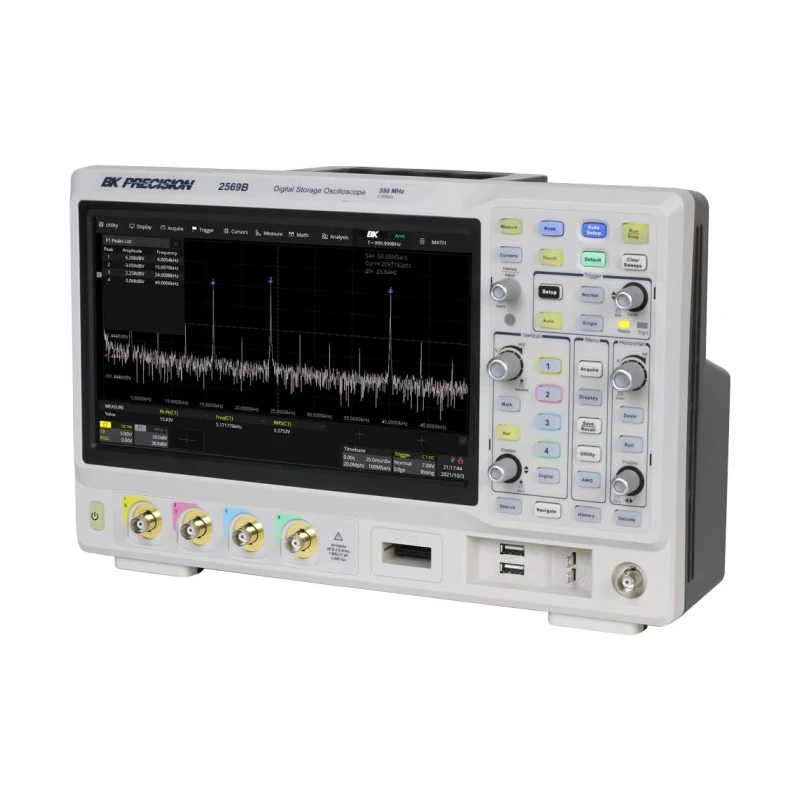

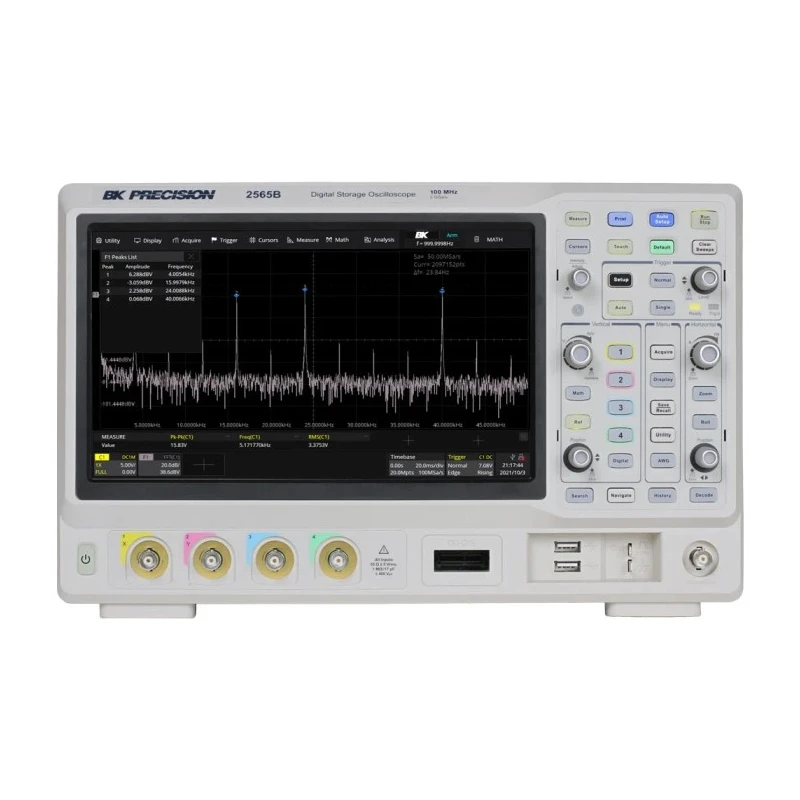

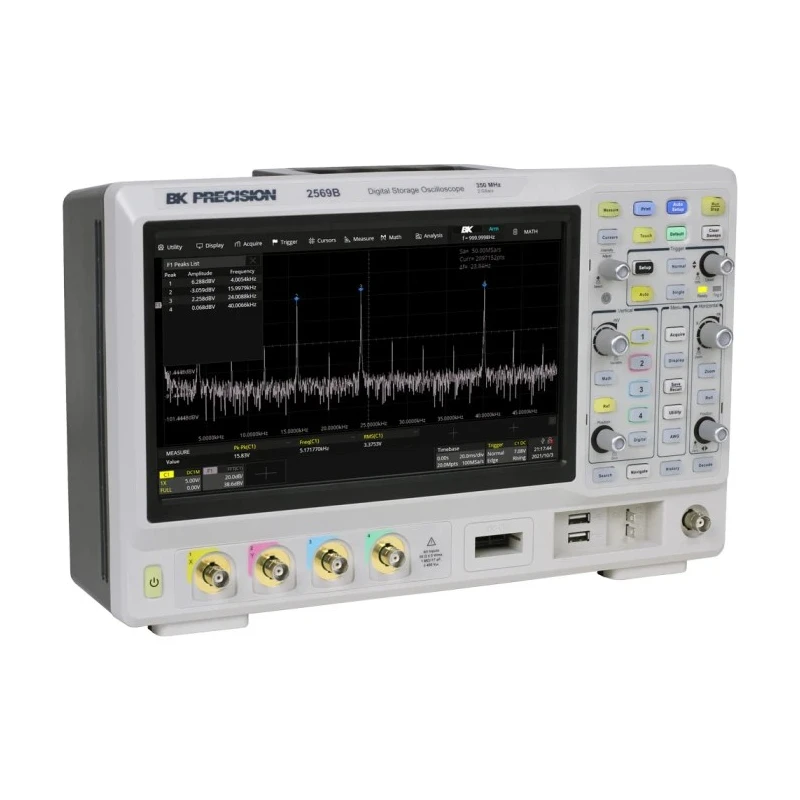

BK Precision 100 MHz Bench Oscilloscope 4-Channel, 8-bit Vertical Resolution, Touchscreen Display BK2565B

BK Precision BK2565B 100 MHz Bench Oscilloscope 4-Channel is a versatile instrument designed for precise electrical signal measurement in industrial, laboratory, manufacturing, and educational settings. It features a 100 MHz bandwidth and four analog input channels with an 8-bit vertical resolution, enabling detailed signal analysis.

The large 10.1-inch capacitive touchscreen with 1024 x 600 resolution provides intuitive operation and detailed waveform viewing. This model supports a maximum sample rate of 2 GSa/s and a maximum memory depth of 200 Mpts, allowing high fidelity waveform capture and analysis.

The BK2565B includes advanced debugging tools such as zone triggers, Bode plots for frequency response analysis, and power analysis capabilities evaluating 11 different power supply parameters. The integrated 50 MHz arbitrary waveform generator facilitates signal simulation and testing.

Communication protocol debugging is streamlined with built-in serial decoding for I2C, SPI, UART, CAN, and LIN. Additional software upgrades can extend protocol support to FlexRay, CAN FD, MIL-STD-1553B, SENT, and Manchester formats. The oscilloscope family also offers segmented acquisition and history functions supporting up to 90,000 frames for thorough waveform documentation.

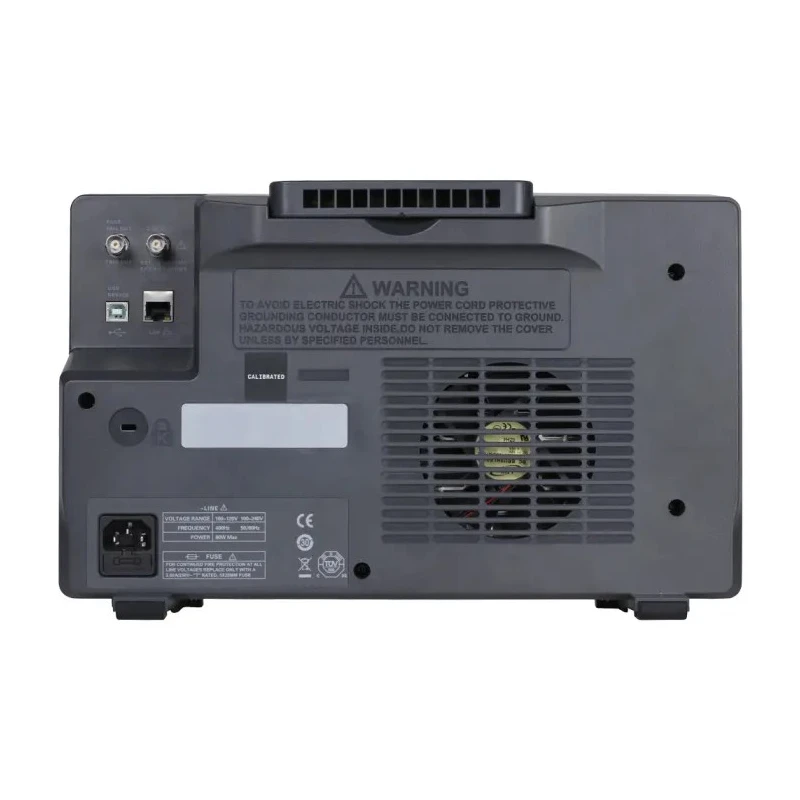

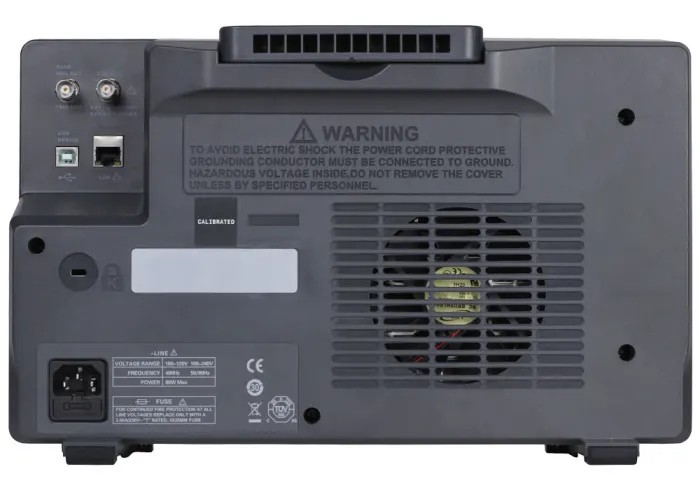

Connectivity includes a LAN port, USBTMC-compliant USB device port, and two USB host ports, providing flexible remote control and data transfer options. DSO models can be upgraded anytime to an MSO configuration, adding 16 digital channels with the included logic probe set, expanding its application scope.

This bench oscilloscope is engineered with reliability and performance suitable for demanding test and measurement tasks in electrical, electronics, and automotive industries. This bench oscilloscope has 4 channels and 8-bit vertical resolution for precise signal analysis.

Features a large 10.1-inch capacitive touchscreen display with 1024 x 600 resolution. Equipped with serial bus decoding for protocols such as I2C, SPI, UART, CAN, and LIN. Includes a 50 MHz arbitrary waveform generator and supports power analysis functions.

Sample rate of 2 GSa/s and maximum memory depth of 200 Mpts for deep waveform capture. Supports segmented acquisition and history function with storage up to 90,000 frames. Standard interfaces include LAN, USBTMC-compliant device port, and two USB host ports.

DSO models upgradeable to MSO configuration providing 16 digital channels with logic probe set. Robust software features include zone triggers, Bode plots, and FFT math operations. Explore the full range of BK Precision Oscilloscopes at EnvMart for varied industrial and laboratory testing needs.
