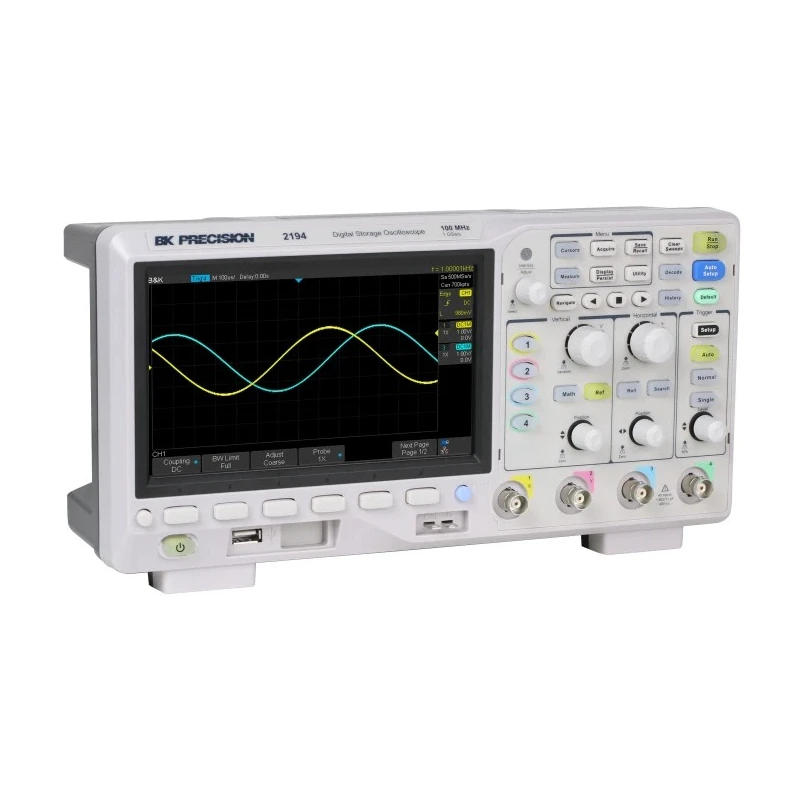

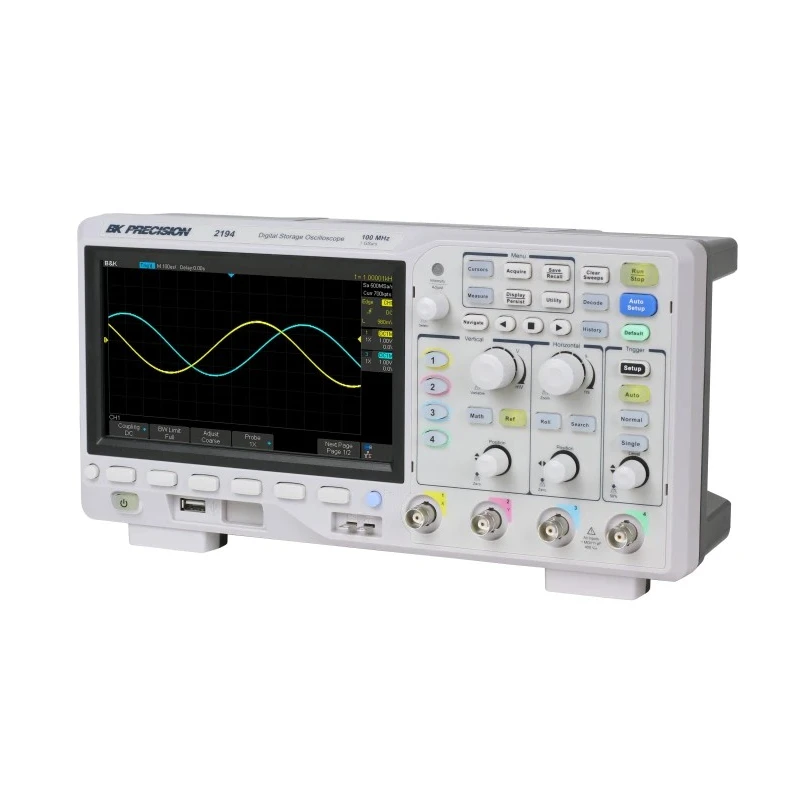

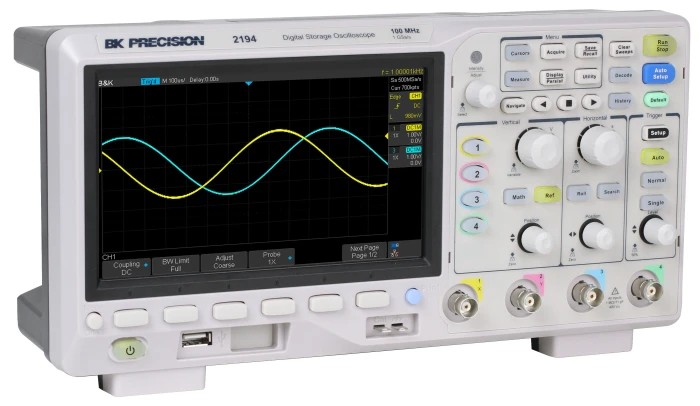

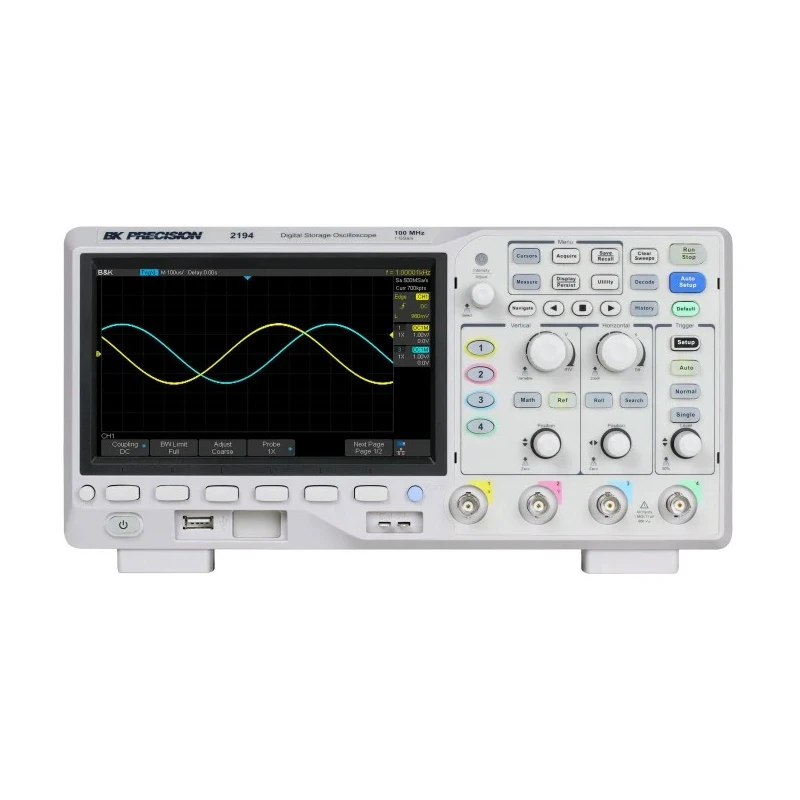

BK Precision 100 MHz Bench Oscilloscope 4-Channel 7-inch Display BK2194

BK Precision BK2194 is a high-performance 100 MHz bench oscilloscope featuring 4 analog channels and a 7-inch widescreen display. Designed for electronics engineers, researchers, developers, and students, this digital storage oscilloscope captures, displays, and analyzes electrical signals with precision in a portable format.

The oscilloscope supports a maximum sample rate of 1 GSa/s and boasts a large memory depth of 14 Mpts, enabling detailed waveform capture and analysis. Users benefit from advanced features including segmented acquisition to store up to 80,000 frames and multiple serial decoding protocols such as I2C, SPI, UART, CAN, and LIN, aiding in sophisticated digital communication diagnostics.

With versatile triggering options like pulse width, line-selectable video, and serial triggering, the BK2194 facilitates precise signal acquisition. Its FFT functionality enables frequency domain analysis, supported by seven additional mathematical operations for waveform manipulation.

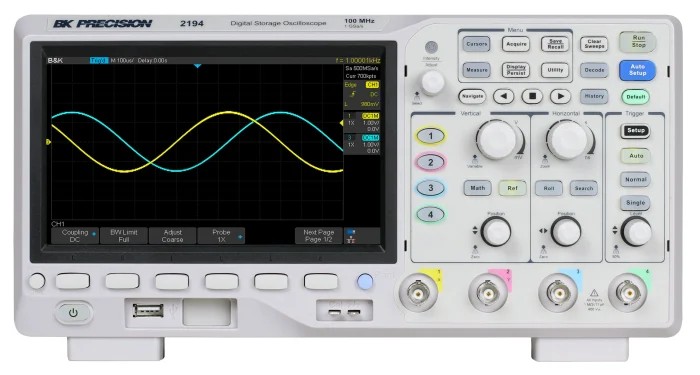

The built-in 7-inch TFT-LCD with a resolution of 800 x 480 delivers clear, detailed waveform visualization essential for troubleshooting, testing, and research applications.

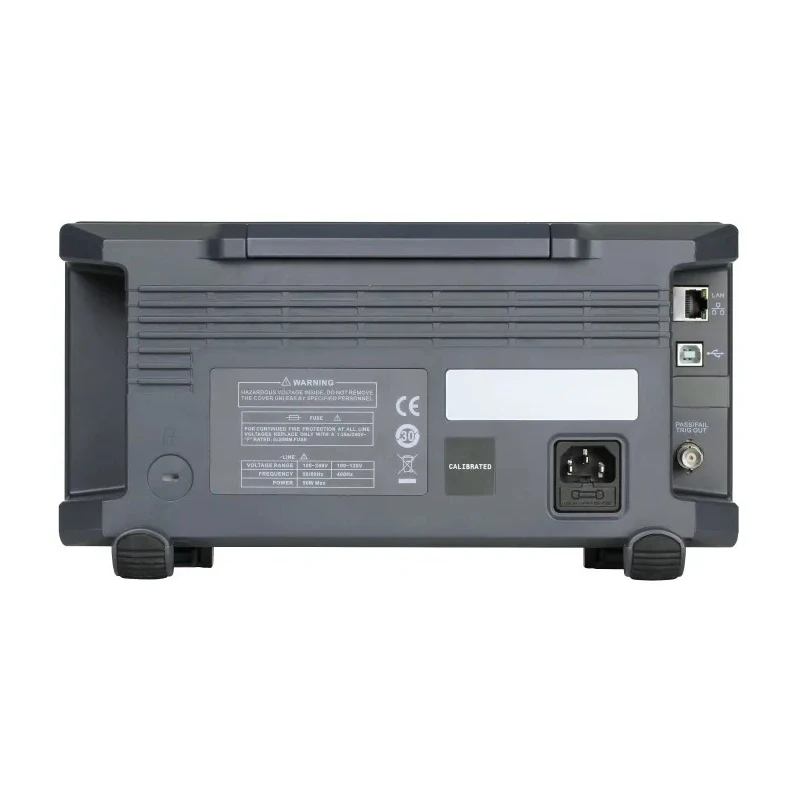

Connectivity is ensured through LAN and USBTMC-compliant ports for seamless PC interfacing, plus a USB host port to save and recall waveform setups, data, and screenshots for efficient workflow.

Ideal for industrial, laboratory, educational, and research environments, the BK2194 oscilloscope aids in tasks such as electronic circuit troubleshooting, design validation, and development of electronic components and systems.

Features a 100 MHz bandwidth for capturing detailed signal data. Equipped with 4 analog channels allowing multi-signal inspection. Provides a maximum sample rate of 1 GSa/s for high-speed data acquisition. Includes a 7-inch widescreen TFT-LCD with 800 x 480 resolution for clear waveform display.

Supports multiple serial decoding protocols including I2C, SPI, UART, CAN, and LIN. Offers segmented acquisition storing up to 80,000 frames for efficient data capture. Comes with advanced triggering options like Pulse width and serial triggering.

Equipped with FFT functionality for frequency domain signal analysis. LAN and USBTMC compliant device ports enable easy PC connectivity. USB host port facilitates saving and recalling waveform setups and screenshots. Explore EnvMart's range of precision Oscilloscopes and expand your test & measurement capabilities with high-quality instruments.
