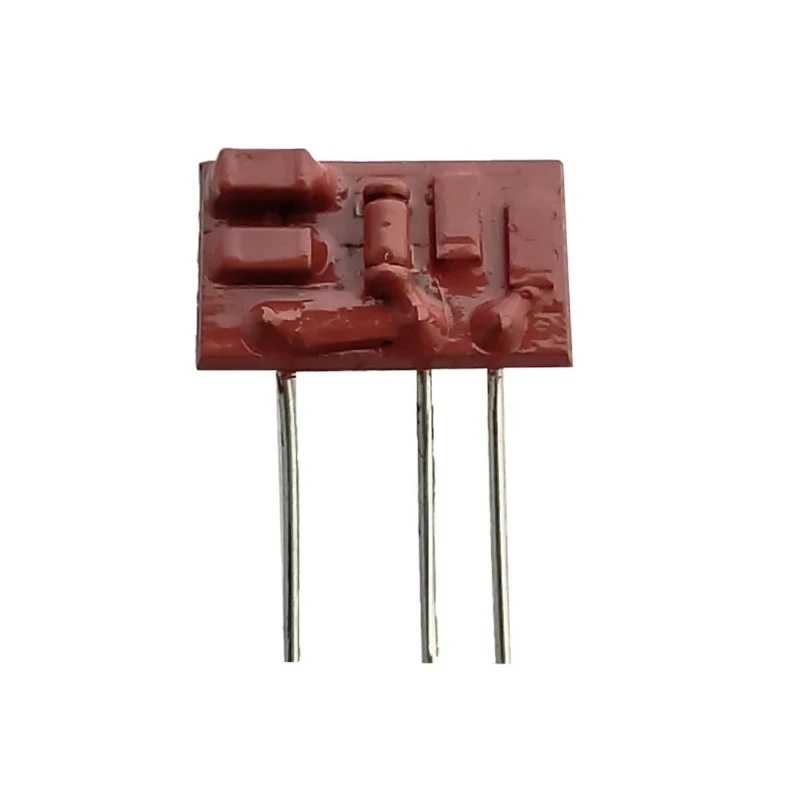

United Automation Phase Angle Triac Firing Circuit, Rated 5A, TRIAC Type PATFC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | United Automation |
| Model | PATFC |
| Series | PATFC |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | BS 7671 |
| Rated Average On-State Current Irms | 5A |
| Thyristor Type | TRIAC |
Key Features
- Operates efficiently within a temperature range of 0°C to 65°C.
- Complies with BS 7671 standards for safety and performance.
- Employs a thick film hybrid firing circuit for reliable phase control.
- Enables phase control of loads from 1 to 100 amps, depending on TRIAC and potentiometer selection.
- Trigger pulses synchronize with zero-crossing mains supply to minimize radio frequency interference.
- Suitable for controlling resistive loads with minimal RFI production.
- Manufactured in the United Kingdom ensuring quality and durability.
Product Description
United Automation PATFC is a Phase Angle Triac Firing Circuit featuring a rated average on-state current of 5A and TRIAC thyristor type. This device is engineered to provide precise phase angle control of electrical loads, facilitating smooth power modulation for resistive and inductive applications.
The circuit utilizes a thick film hybrid firing design that allows phase control operation over loads ranging from 1 to 100 amps contingent upon the associated TRIAC, heat sink, and potentiometer configuration. By varying the number of complete mains cycles in fixed repeating periods of 1 to 10 seconds, it adjusts the duty cycle or on/off time ratio effectively.
The trigger pulses are timed to coincide with mains zero-crossing events, minimizing radio frequency interference during use with resistive loads, ensuring compliance with BS 7671 standards. This makes it suitable for various industrial, commercial, and automation control applications requiring precise power regulation.
Operates within 0°C to 65°C temperature range. Designed with a TRIAC thyristor type for efficient power handling. Robust phase angle control with minimal electromagnetic interference. Manufactured in the United Kingdom to high-quality standards.
Complies with BS 7671 for electrical installations. Enables smooth load control in automation and lighting systems. Compact design suitable for integration in control panels.
This phase angle firing circuit is widely applicable in industrial automation, HVAC, lighting dimming, and power control systems where precise load modulation is required. Its reliable operation and compliance advantage make it a valuable component in electrical and electronic control assemblies.
For further technical documents, design considerations, and application references, EnvMart offers comprehensive support and product selections in the semiconductor and automation control categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 5A.
This unit operates efficiently within a temperature range of 0°C to 65°C.
It complies with BS 7671 standards for safety and performance.
The firing circuit employs a TRIAC thyristor type for efficient power handling.
It enables phase control of loads ranging from 1 to 100 amps, depending on the TRIAC and potentiometer selection.
The trigger pulses are synchronized with zero-crossing mains supply to minimize radio frequency interference during operation.
This model is suitable for various industrial, commercial, and automation control applications requiring precise power regulation.
The circuit is designed to produce minimal electromagnetic interference during use with resistive loads.
This firing circuit is manufactured in the United Kingdom.
The thick film hybrid firing circuit allows for reliable phase control and smooth power modulation for electrical loads.
The compact design of this unit is suitable for integration into control panels.
It is designed for controlling resistive loads effectively, making it suitable for applications like lighting dimming and HVAC systems.
