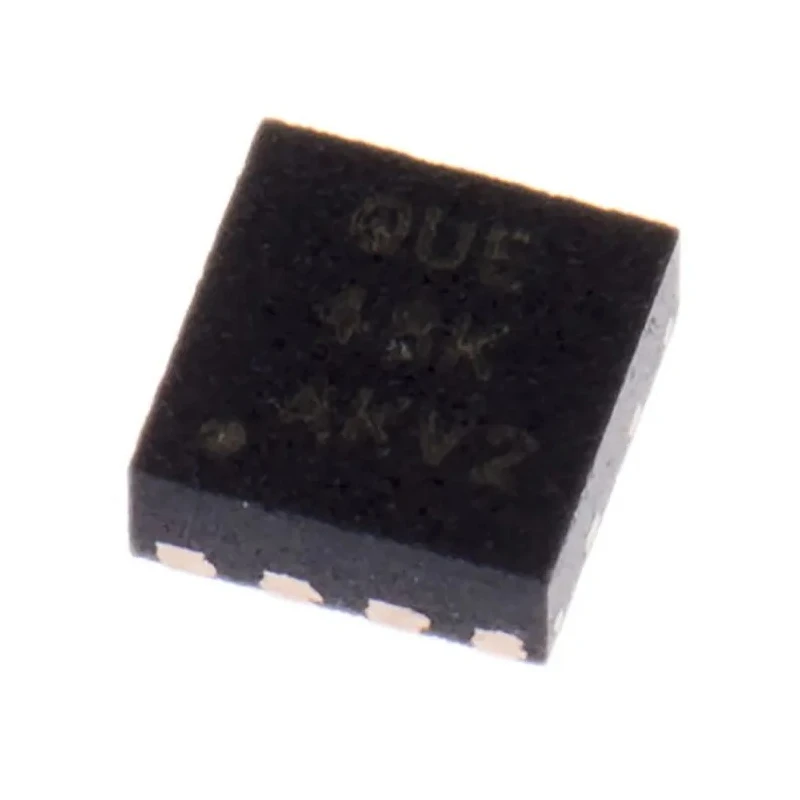

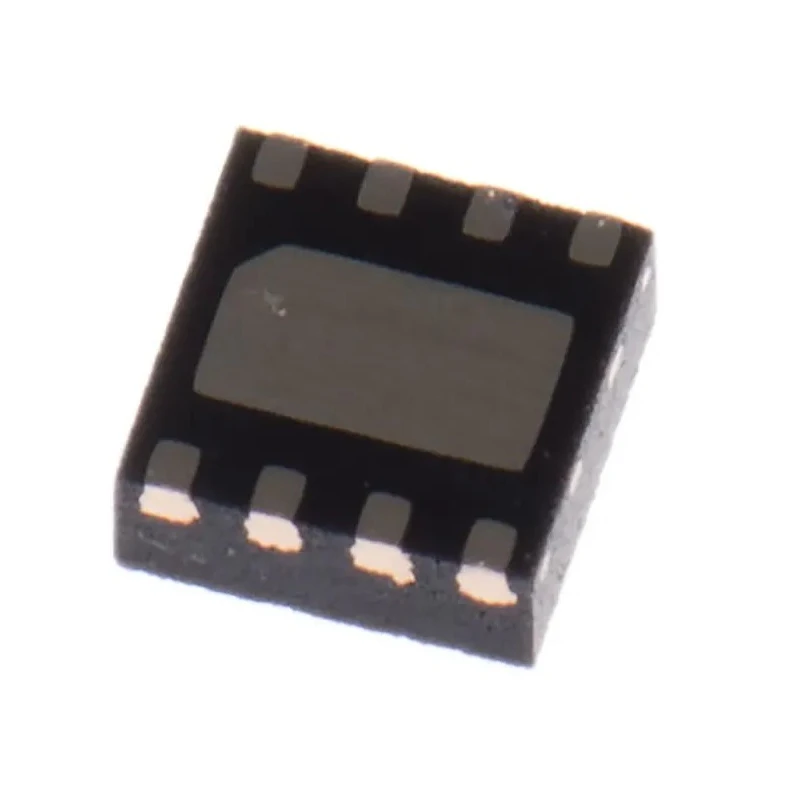

Texas Instruments Receiver IC Low Voltage Differential Signaling LVDS 8-Pin SON SN65MLVD2DRBT

Texas Instruments SN65MLVD2DRBT is a receiver integrated circuit designed for low voltage differential signaling (LVDS) applications that require high-speed data transmission over balanced or unbalanced networks using twisted pair copper cables.

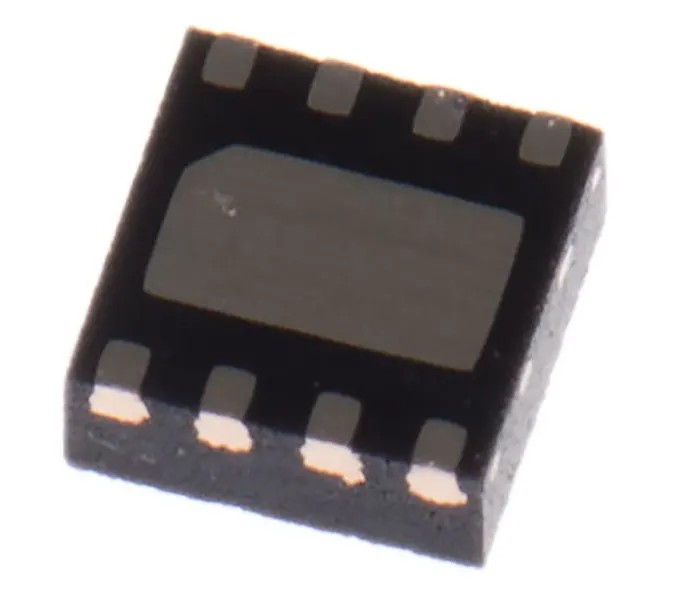

This LVDS receiver IC package comes in an 8-pin SON surface-mount package with 1 driver and 1 receiver embedded per chip. It supports a data transmission rate of 250Mbps and operates efficiently within a supply voltage range of 3V to 3.6V.

The device provides differential input high and low threshold voltages at ±35mV to ensure precise signal detection and noise immunity. ESD protection is integrated for enhanced robustness in industrial environments.

Operating temperature ranges from -40°C to 85°C, making it suitable for various industrial and commercial applications. Dimensionally compact with a height of 950μm and a length of 3.15mm, it is ideal for high-density PCB layouts.

Compliant with RoHS standards, this semiconductor device supports environmentally responsible manufacturing. Common industrial applications include Firewire, SATA, and SCSI communications, where reliable high-speed differential data reception is critical.

This product is an essential component in electronic systems requiring precise, low-noise differential line receiving capabilities. It is widely used in industrial machines, laboratory instruments, and electronic component assemblies.

The device supports a transmission data rate of 250Mbps, ensuring fast and reliable signal reception. It features 1 driver and 1 receiver per chip, optimized for LVDS input and output types. Designed for surface mounting, the SON package offers a compact footprint with 8 pins.

Operating voltage range is between 3V minimum and 3.6V maximum, suitable for low-power applications. Includes Electrostatic Discharge (ESD) protection and operates in temperature range from -40°C to 85°C. Differential input threshold voltages are ±35mV ensuring signal integrity in differential line reception.

The product complies with RoHS standards ensuring environmental safety and sustainability. With a chip height of 950μm and length of 3.15mm, it fits compact, high-density electronic designs. Explore more LVDS Interface ICs and electronic components with EnvMart for advanced industrial and laboratory applications.
