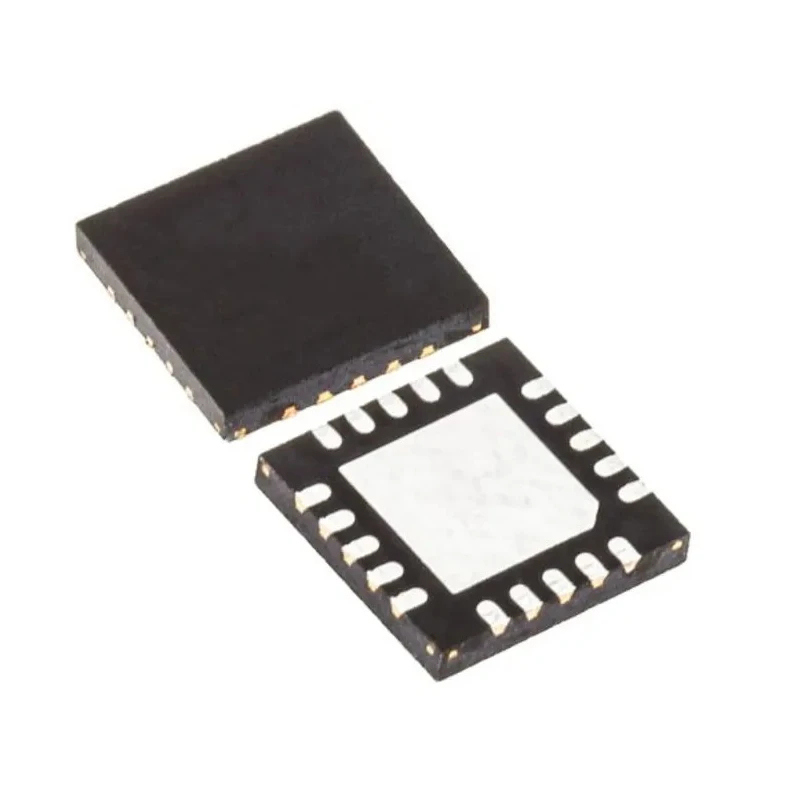

Maxim Integrated Logic Level Translator Buffer 2, BiCMOS, Bi-Directional, 20-Pin TQFN MAX14970ETP+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 750μm |
| Length | 4.1mm |
| Model | MAX14970ETP+ |
| Mount Type | Surface |
| Output type | BiCMOS |
| Series | MAX14970 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFN |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 4V |
| Logic Family | BiCMOS |
| Logic Function | Buffer |
| Minimum Supply Voltage | -0.3V |
| Maximum High Level Output Current | 30mA |
| Maximum Propagation Delay Time @ CL | 240ps |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | -30mA |
| Translation | Buffer |
| Active state | 231mW (typ) |
| Extended Temp Rating | -40°C to +85°C |
| High ESD Protection on All Pins | ±8kV (HBM) |
| Idle State | 52.8mW (typ) |
Key Features
- Built with BiCMOS logic family for efficient operation.
- Bi-directional translation capability enhances flexibility.
- Maximum propagation delay time at CL is 240ps ensuring fast response.
- Surface mount type promotes easy PCB assembly.
- Highly robust with extended temperature rating from -40°C to +85°C.
- High ESD protection of ±8kV on all pins safeguards against damage.
- Designed for low power consumption with standby state under 1mW.
- Compatible with SATA 3i, 2i/2m, and 1i/1m standards for data transmission.
Product Description
Maxim Integrated MAX14970ETP+ is a high-performance logic level translator buffer designed with BiCMOS technology for reliable bi-directional signal translation. Packaged in a compact 20-pin TQFN surface mount, this device ensures excellent performance in industrial and embedded applications.
The MAX14970ETP+ supports a wide temperature range from -40°C to +85°C, making it ideal for harsh environments. It features robust ESD protection up to ±8kV (HBM) on all pins, helping to prevent damage during handling and operation.
Its compact form factor with a height of 750 μm and length of 4.1 mm integrates efficiently into densely packed circuit boards. The device operates on a single 3.3V supply with low power consumption: less than 1 mW in standby and a typical active power consumption of 231 mW, providing power-efficient solutions for embedded and portable systems.
The buffer outputs utilize BiCMOS logic for low noise and high drive current capabilities of ±30 mA, supporting SATA 3i (6.0 Gbps), SATA 2i/2m (3.0 Gbps), and SATA 1i/1m (1.5 Gbps) compatibility for high-speed data translation in storage devices.
Common industrial use cases include industrial servers, medical and portable IPC/HMI systems, and SATA SSDs or HDDs where reliable logic level translation is critical. Built with BiCMOS logic family for efficient operation.
Bi-directional translation capability enhances flexibility. Maximum propagation delay time at CL is 240ps ensuring fast response. Surface mount type promotes easy PCB assembly. Highly robust with extended temperature rating from -40°C to +85°C.
High ESD protection of ±8kV on all pins safeguards against damage. Designed for low power consumption with standby state under 1mW. Compatible with SATA 3i, 2i/2m, and 1i/1m standards for data transmission. Supports single 3.3V supply operation simplifying circuit design.
Suitable for industrial and medical embedded PC applications. Explore the range of high-performance Translator ICs from Maxim Integrated available at EnvMart for reliable and efficient signal interfacing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This unit has a height of 750 μm and a length of 4.1 mm.
It is built with a BiCMOS logic family for efficient operation.
The maximum propagation delay time at CL is 240 ps, ensuring fast response.
It operates on a single supply voltage of 3.3V, with a maximum supply voltage of 4V and a minimum of -0.3V.
It features high ESD protection of ±8kV on all pins, safeguarding against damage.
The typical active power consumption is 231 mW.
The output type is BiCMOS, which provides low noise and high drive current capabilities.
It has a bi-directional direction type, enhancing flexibility in signal translation.
The idle state power consumption is typically 52.8 mW.
This model has a pin count of 20.
