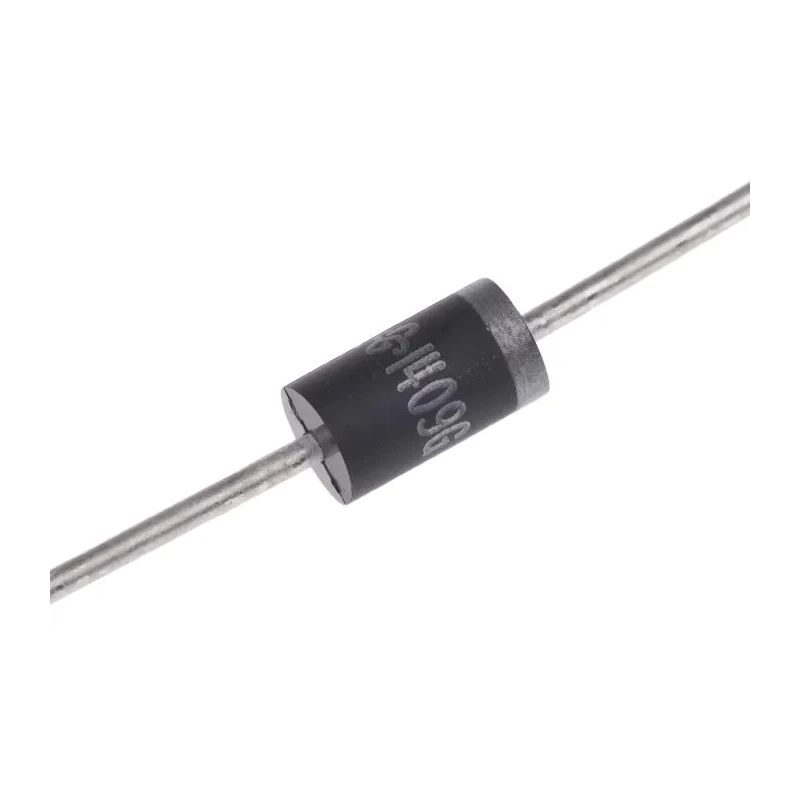

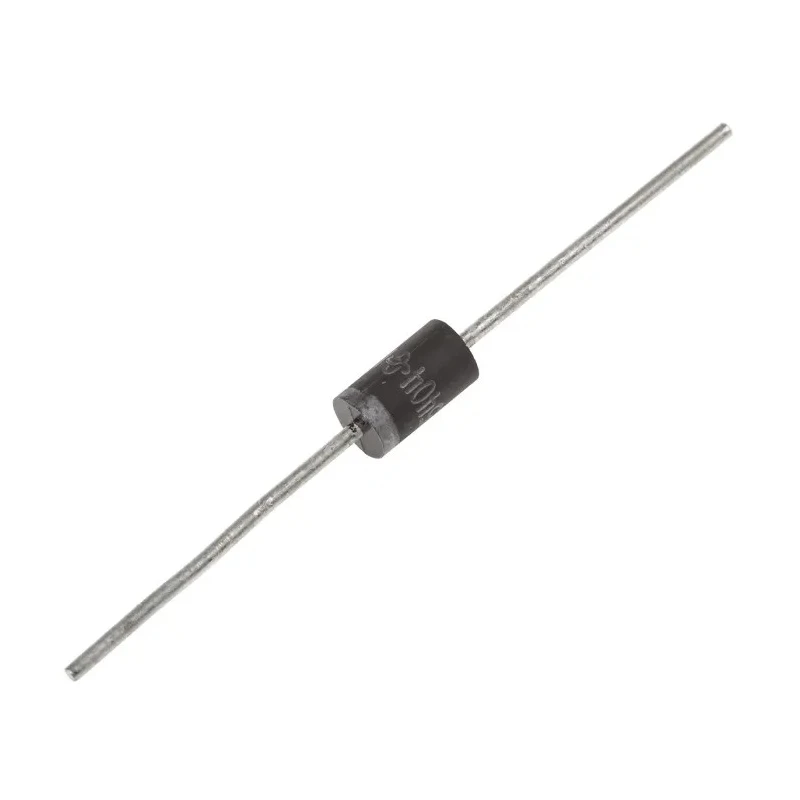

Vishay 400 V 3 A Soft Recovery Diode 2-Pin DO-201AD UF5404-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | UF5404-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | UFX |
| Maximum Operating Temperature | 150°C |
| Case | DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode end |
| Terminals | Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Soft Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
| Vishay 400V 3A, Silicon Junction Diode, 2-Pin DO-201AD UF5404Brand | Vishay |
| Lite-On 400V 3A, Silicon Junction Diode, 2-Pin DO-201AD UF3004Brand | Lite-On |
Key Features
- Glass passivated chip junction ensures high reliability.
- Ultrafast reverse recovery time of 50 nanoseconds minimizes switching losses.
- Low forward voltage drop improves energy efficiency.
- High forward surge capability supports transient current peaks.
- Solder dip rated at 275 °C for 10 seconds allows robust assembly.
- Operates over a temperature range from -55°C to 150°C.
- Matte tin-plated leads enable easy solderability.
- Colour band polarity marking denotes the cathode end for correct installation.
Product Description
Vishay UF5404-E3/54 is a 400 V, 3 A diode featuring soft recovery and housed in a 2-pin DO-201AD package. This diode is designed for efficient, high-frequency switching applications, providing ultrafast recovery and low forward voltage drop to enhance overall circuit performance.
The device incorporates a glass passivated chip junction for superior reliability and exhibits a maximum forward voltage drop of 1 V, ensuring minimal power dissipation during conduction. The ultrafast reverse recovery time of 50 nanoseconds reduces switching losses, making it suitable for consumer electronics, computer power supplies, and telecommunication equipment.
Its mechanical construction includes a DO-201AD moulding compound meeting UL 94 V-0 flammability rating and matte tin-plated leads compliant with industry solderability standards. The diode operates within a broad temperature range from -55°C to 150°C and provides a high surge current capability of 150 A for peak non-repetitive conditions.
Typical uses encompass high frequency rectification and freewheeling in switching mode converters and inverters. This product is commercial grade, RoHS-compliant, and designed to meet demanding industrial and electronic component standards.
Glass passivated chip junction ensures high reliability. Ultrafast reverse recovery time minimizes switching losses. Low forward voltage drop for energy-efficient operation. High forward surge capability supports transient currents.
Temperature range from -55°C to 150°C supports varied environments. DO-201AD package with UL 94 V-0 flammability rating. Matte tin-plated leads ensure superior solderability. Polarity marked by colour band for easy identification.
Ideal for switching mode power supplies and inverters. RoHS compliant commercial-grade component. For advanced semiconductor products like Diodes, explore the full range available in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this diode is 400 V.
It can handle a maximum continuous forward current of 3 A.
The peak non-repetitive forward surge current is rated at 150 A.
This diode features an ultrafast reverse recovery time of 50 nanoseconds.
It operates over a temperature range from -55°C to 150°C.
The maximum forward voltage drop is 1 V.
It is housed in a 2-pin DO-201AD package.
The diode is constructed with a glass passivated chip junction for enhanced reliability.
The leads are matte tin-plated, ensuring superior solderability.
The polarity is marked by a colour band that denotes the cathode end for correct installation.
The moulding compound meets the UL 94 V-0 flammability rating.
This diode is suitable for high-frequency rectification and freewheeling in switching mode converters and inverters.
